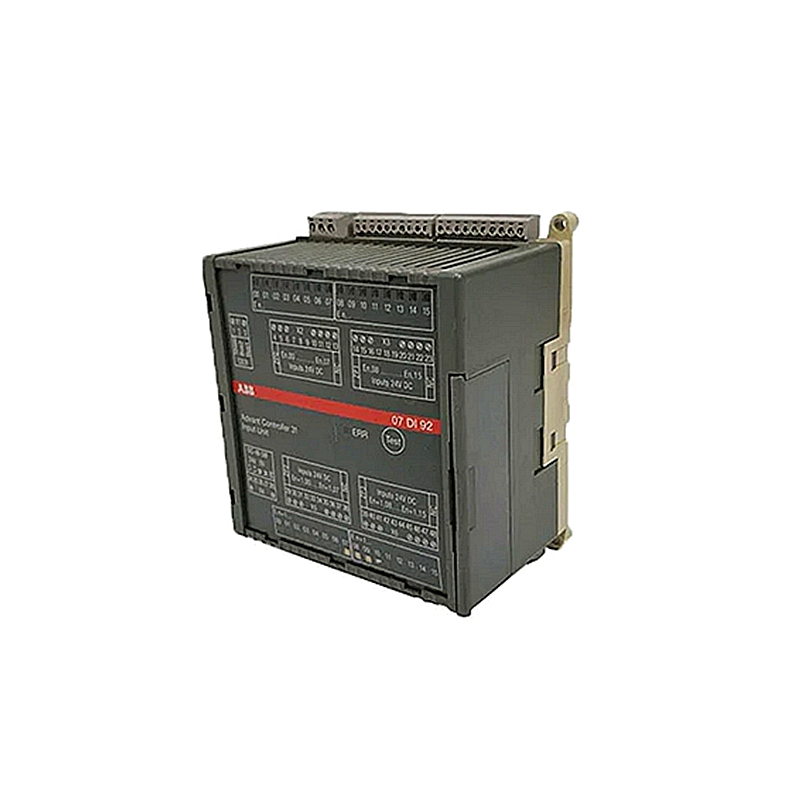

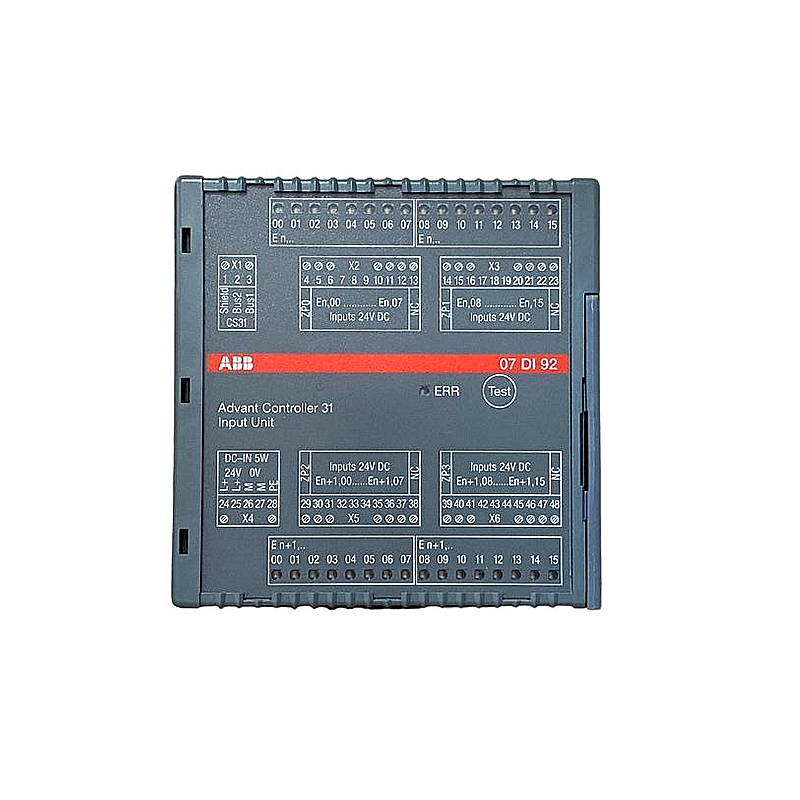

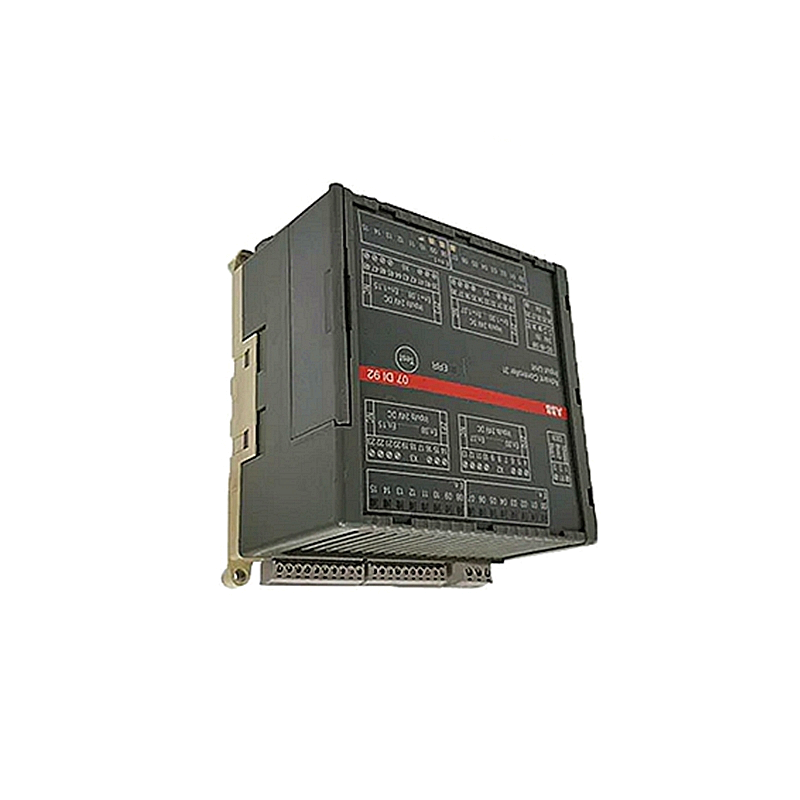

07 DI 92 | ABB Advant OCS 07DI92 Digital I/O Module AC31

Product Overview

The ABB 07DI92 is a dedicated digital input module designed for the Advant Controller 31 (AC31) system. Featuring 16 digital input channels at 24 V DC, this module provides high-density digital signal acquisition for applications requiring extensive input monitoring. Whether reading status from limit switches, proximity sensors, pushbuttons, or safety interlocks, the 07DI92 delivers reliable, real-time digital input processing with minimal wiring and cabinet space.

Key Specifications

• Manufacturer: ABB
• Product Family: Advant Controller 31 (AC31)
• Type: Digital Input Module
• Digital Inputs: 16 channels, 24 V DC
• Input Current: ~5 mA per channel (typical)
• Input Voltage Range: 24 V DC (±20%)
• Input Delay: Configurable (typical: 1–10 ms)
• Power Supply: 24 V DC (via module or external)
• System Bus: CS31 Slave
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +75°C
• Dimensions: Standard AC31 module form factor
• Weight: ~0.3 kg
• Mounting: DIN rail EN 50022-35 or screw mounting
• Protection Rating: IP20

Features & Benefits

• High-Density Inputs: 16 channels in a single module maximize I/O density per DIN rail meter, reducing cabinet size and cost.
• 24 V DC Compatibility: Standard industrial voltage level ensures compatibility with the vast majority of sensors, switches, and safety devices.
• Configurable Input Delay: Software-configurable input filtering (1–10 ms typical) suppresses contact bounce and electrical noise.
• LED Channel Indicators: Individual LEDs for all 16 inputs provide immediate visual confirmation of signal states during commissioning and troubleshooting.
• Electrical Isolation: Input channels are isolated from the CS31 bus and power supply, preventing ground loop issues in large installations.
• Compact Design: Standard AC31 form factor allows seamless integration with other AC31 I/O modules in mixed configurations.

Typical Applications

• Machine status monitoring (limit switches, proximity sensors)
• Safety interlock and emergency stop monitoring
• Conveyor position and presence detection
• Building automation switch and sensor acquisition
• Process plant digital status monitoring

Installation Guide

1. Mounting: Install on a 35 mm DIN rail (EN 50022) or secure with 4 × M4 screws. Maintain vertical orientation.
2. Power Supply: Connect 24 V DC to the module power terminals. The input circuits derive power from this supply or from an external 24 V source.
3. Input Wiring: Connect 24 V DC field devices to the 16 input terminals. Use conductors up to 2.5 mm². Group input cables together and separate from output/power cables.
4. Sensor Compatibility: The module is compatible with 2-wire and 3-wire proximity sensors (PNP type). Verify sensor output type before wiring.
5. CS31 Bus Connection: Connect to the CS31 system bus and set the station address using the coding switch. Ensure the address is unique on the bus.
6. Input Delay Configuration: Use the AC31 programming software to set input delay/filter time based on your application's noise environment and response requirements.
7. LED Verification: After power-on, activate each input channel and verify the corresponding LED illuminates. Check for proper bus communication via the status LED.

FAQ

Q: What is the difference between 07DI92 and 07DC91?
A: The 07DI92 is a dedicated 16-channel digital input module. The 07DC91 provides a mix of digital inputs and outputs (typically 8 DI / 8 DO). Choose 07DI92 for high-density input-only applications; choose 07DC91 when you need both inputs and outputs.

Q: Can I use NPN sensors with the 07DI92?
A: The 07DI92 is designed for PNP (sourcing) sensors operating at 24 V DC. For NPN sensors, verify compatibility or use signal converters. Some variants may support both — check the datasheet for your specific model.

Q: What is the maximum cable length for input signals?
A: For 24 V DC digital signals, cable runs up to 100–200 meters are typically acceptable using shielded twisted-pair cable. For longer runs or noisy environments, use signal isolators or repeaters.

Q: Are the inputs protected against overvoltage?
A: Yes. The input circuits include protection against transient overvoltage and reverse polarity. However, sustained overvoltage beyond the specified range may damage the module.

Selection Tips

• Choose 07DI92 when you need high-density digital input acquisition (16 channels) without output requirements.
• For mixed I/O needs, consider 07DC91 (8 DI / 8 DO) or 07DC92 (32 configurable channels).
• Verify sensor output type (PNP vs. NPN) before ordering. Most AC31 modules are designed for PNP sensors.
• For safety-critical applications, consider adding external safety relays or using safety-rated input modules.
• When replacing a failed module, record the station address and input delay settings to ensure identical replacement behavior.
