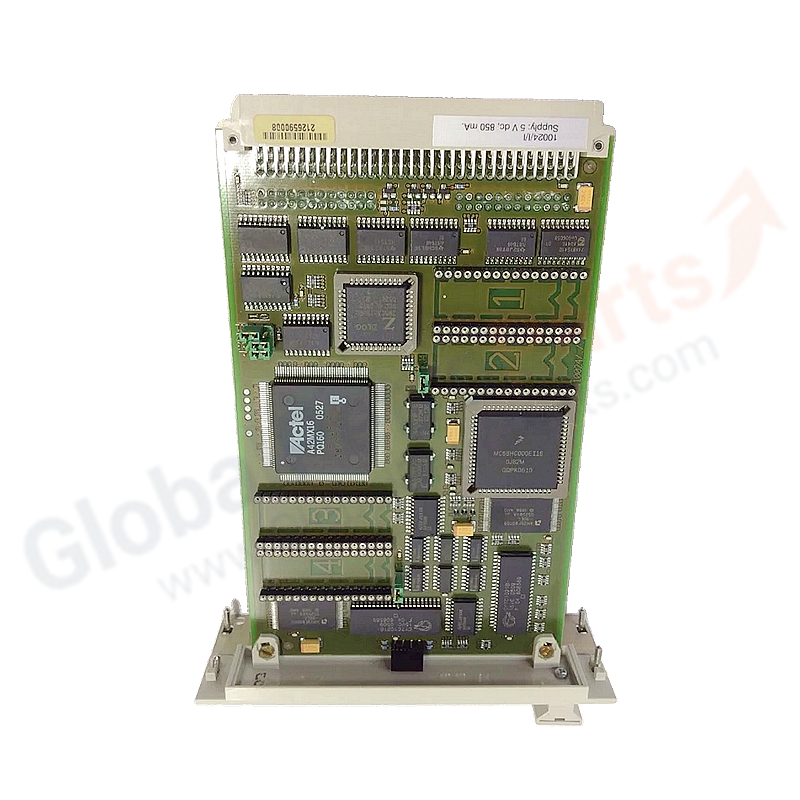

10024/H/I | Honeywell FSC Enhanced Communication Module

Product Overview

The Honeywell 10024/H/I is an Enhanced Communication Module (ECM) for the Honeywell FSC (Fail Safe Control) system. It features a Top Interface (A): RS-422 with readback and a Bottom Interface (B): Isolated RS-485/RS-422, providing robust multi-protocol serial communication for industrial safety systems.

Key Specifications

• Model Number: 10024/H/I
• Product Type: Enhanced Communication Module (ECM)
• Series: Honeywell FSC (Fail Safe Control)
• Top Interface (A): RS-422 interface with readback
• Bottom Interface (B): Isolated RS-485/RS-422 interface
• Flash Memory: 512 k × 16 (8 Mb)
• System Bus: 7-SBUS, 12-SBUS, or 17-SBUS
• Software Versions: ≥ 2.78f
• Approvals: CE, UL, TÜV
• Dimensions: 80 × 100 × 30 mm (per supplier data)
• Weight: 0.79 lbs

Core Features

• Dual serial interface: RS-422 (readback) + Isolated RS-485/RS-422
• Galvanic isolation > 6 kV for reliable industrial communication
• Isolated RS-485/RS-422 supports multi-drop network configurations
• Watchdog circuit for communication line protection
• Redundant system support for high availability

Applications

• Multi-drop RS-485 networks in safety systems
• FSC-to-FSC system interconnection
• Integration with Modbus RTU/ASCII devices
• Long-distance serial communication (RS-485 supports up to 1200m)
• Distributed safety system architectures

FAQ

Q: What is the maximum cable length for the RS-485 interface?
A: RS-485 supports cable lengths up to 1200 meters depending on baud rate and cable quality.

Q: Can the RS-422 and RS-485 interfaces operate simultaneously?
A: Yes, both interfaces can be active simultaneously, connecting to different devices or networks.

Installation Guide

1. Power down the FSC Central Part rack.
2. Remove system bus jumper before installing the ECM.
3. Insert the module into the Central Part slot.
4. Connect RS-422 cable to Top Interface (A).
5. Connect RS-485/RS-422 network to Bottom Interface (B).
6. Configure baud rate and protocol via FSC software.

Selection Tips

• For dual isolated RS-485/RS-422, use 10024/I/I.
• For RS-422 + RS-232C, use 10024/H/F.
• Ensure proper RS-485 termination for network stability.
