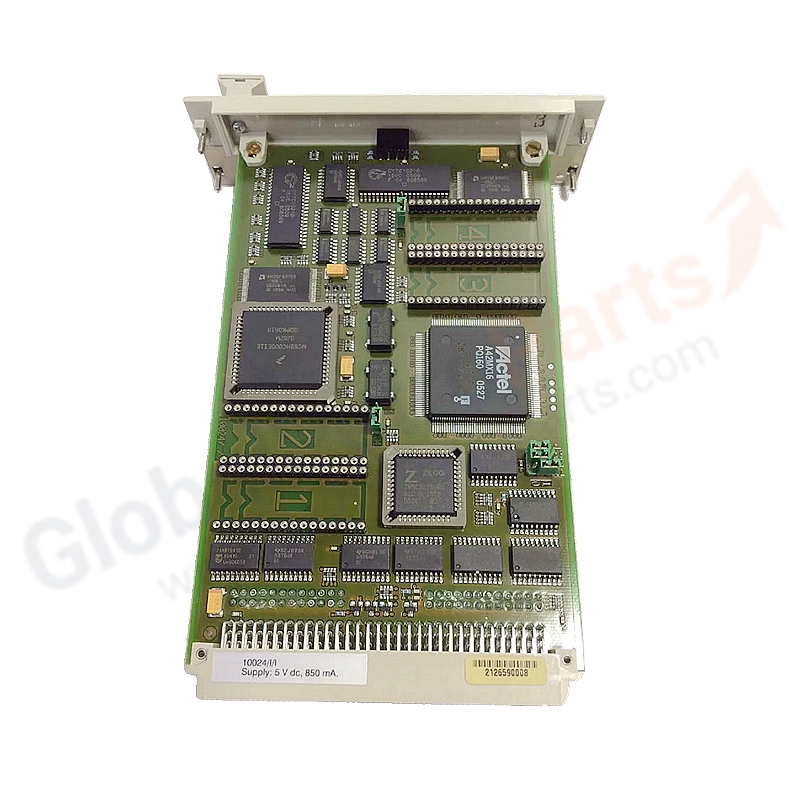

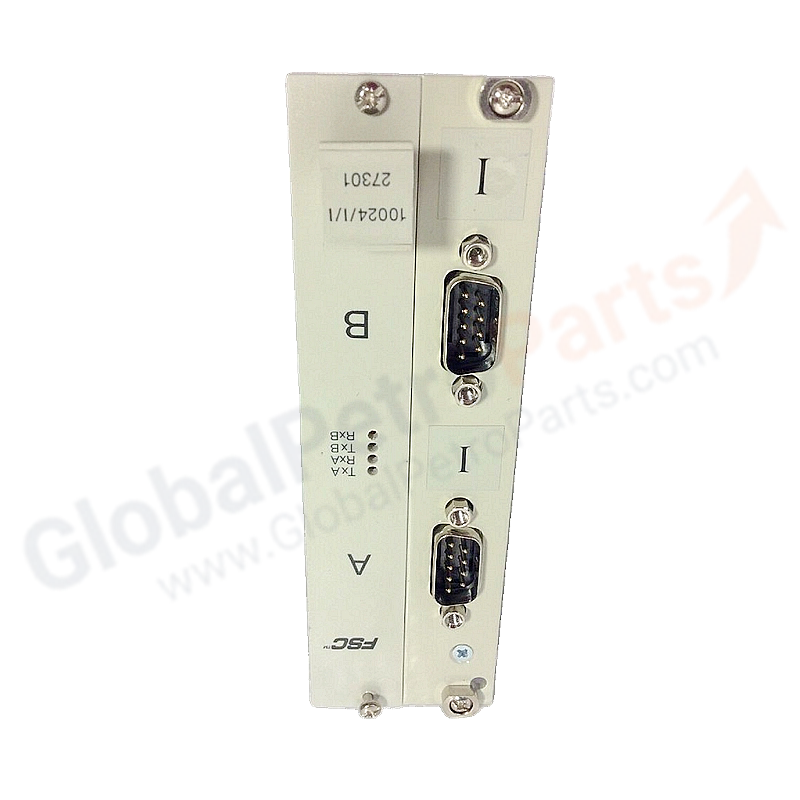

10024/I/F | Honeywell FSC Enhanced Communication Module

Product Overview

The Honeywell 10024/F/F is an Enhanced Communication Module (ECM) for the Honeywell FSC (Fail Safe Control) system. It features dual Tri-state RS-232C interfaces on both Top (A) and Bottom (B) ports, designed for reliable point-to-point serial communication with external devices such as operator stations, printers, and DCS systems.

Key Specifications

• Model Number: 10024/F/F
• Product Type: Enhanced Communication Module (ECM)
• Series: Honeywell FSC (Fail Safe Control)
• Top Interface (A): Tri-state RS-232C interface
• Bottom Interface (B): Tri-state RS-232C interface
• Maximum Baud Rate: 38.4 Kbaud per interface
• Isolation: Galvanic isolation > 6 kV per interface
• Cable Lengths:
  • ≤ 19.2 kbaud: max 15 m (49.2 ft)
  • 38.4 kbaud: max 10 m (32.8 ft)
• Power Requirements: 5 V DC, 475 mA
• Ripple Content: < 50 mV p-p
• Connector Type: Female, 9 pins (per interface)
• Space Requirements: 8 TE, 3 HE (= 8 HP, 3U)
• Software Versions: ≥ 2.78f (configuration ≥ 530)
• Approvals: CE, UL, TÜV

Core Features

• Dual independent RS-232C ports for versatile device connectivity
• Tri-state design allows safe bus sharing and redundant connections
• Galvanic isolation > 6 kV protects against ground loops
• On-board watchdog disconnects line on processor fault
• Supports connection to 230 Vac powered devices per IEC 61010

Applications

• FSC user station connection
• Printer and operator interface connectivity
• DCS system integration
• Local diagnostic and engineering access
• Redundant serial communication paths

FAQ

Q: What does "tri-state" RS-232C mean?
A: Tri-state allows the interface to be electrically disconnected (high-impedance state) when not actively communicating, enabling safe bus sharing and redundant failover.

Q: Can both RS-232C interfaces connect to the same device?
A: Yes, both interfaces can connect to the same device for redundancy, with the FSC system automatically selecting the active path.

Installation Guide

1. Power down the FSC Central Part rack.
2. Remove system bus jumper before installation.
3. Insert the ECM into the Central Part slot (8 TE, 3 HE).
4. Connect RS-232C cables to Interface A and/or Interface B.
5. Configure baud rate and protocol via FSC software.

Selection Tips

• For dual RS-232C connections to operator stations and printers.
• For RS-485 network capability, consider 10024/I/I or 10024/I/F.
• For fiber optic communication, consider 10024/G/G.
