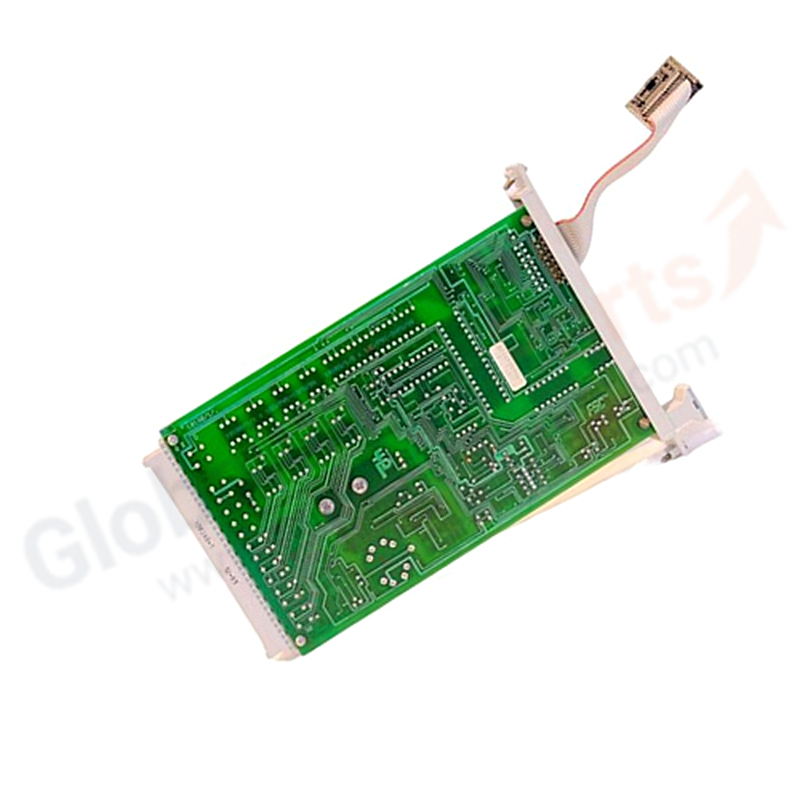

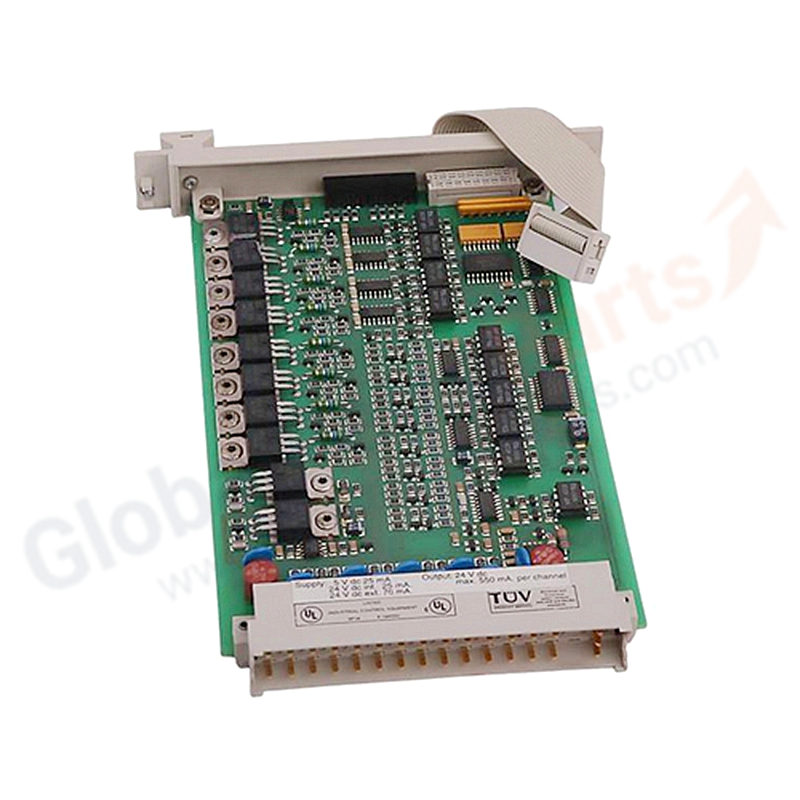

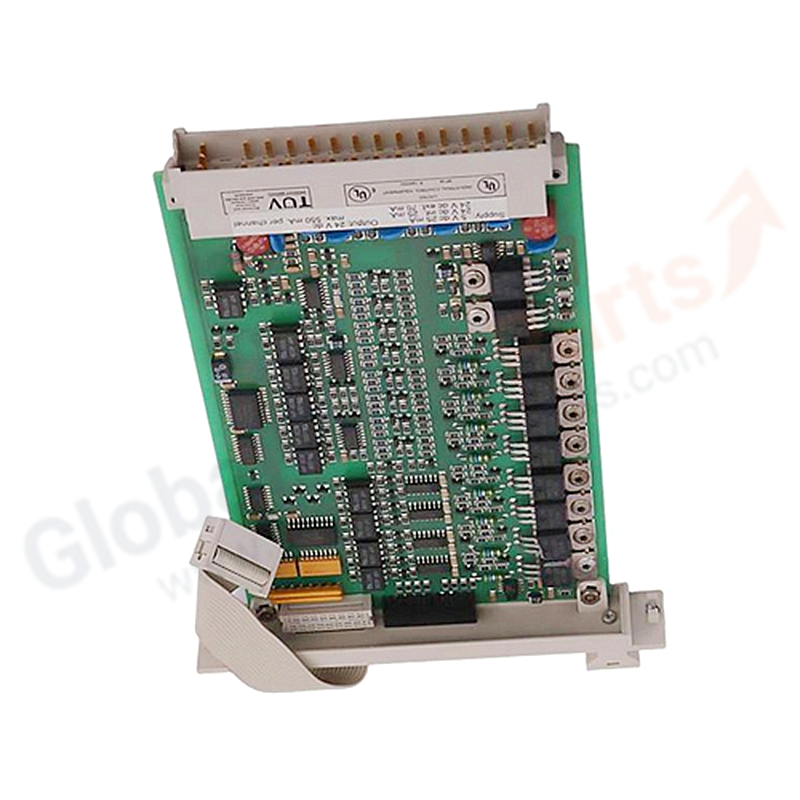

10213/2/3 | Honeywell Fail-Safe Digital Output Module

Product Overview

The Honeywell 10213/2/3 is a Fail-Safe Digital Output Module for the Honeywell FSC (Fail Safe Control) system. It provides 4 channels of 48 V DC fail-safe outputs at 0.75 A per channel, designed for safety-critical applications requiring higher voltage operation.

Key Specifications

• Model Number: 10213/2/3
• Product Type: Fail-Safe Digital Output Module
• Series: Honeywell FSC (Fail Safe Control)
• Output Channels: 4 channels
• Output Voltage: 48 V DC
• Output Current: 0.75 A per channel (750 mA)
• Fail-Safe Design: Component failure results in de-energized output (safe state)
• Self-Test Functions: Tests ability to output logic '0' and '1' within process safety time
• Space Requirements: Standard FSC module format
• Approvals: CE, TÜV, UL

Core Features

• Fail-safe design for safety-critical 48Vdc applications
• Higher voltage operation for specialized industrial devices
• Self-test verification ensures output integrity
• Galvanic isolation protects system backplane
• Compact form factor for FSC rack integration

Applications

• 48Vdc safety interlock systems
• Emergency shutdown valve control
• High-voltage relay driver applications
• Process safeguarding in petrochemical industries
• Power generation safety systems

FAQ

Q: What voltage options are available in the 10213 series?
A: The 10213 series includes 10213/2/1 (110Vdc, 0.32A), 10213/2/2 (60Vdc, 0.67A), and 10213/2/3 (48Vdc, 0.75A).

Q: Is this module compatible with 24Vdc systems?
A: No, the 10213/2/3 is specifically designed for 48 Vdc operation. For 24Vdc applications, use 10201/2/1 or 10215/2/1.

Installation Guide

1. Power down the FSC rack before installation.
2. Verify 48 Vdc power supply availability.
3. Insert the module into the designated I/O slot.
4. Connect 48 Vdc field power to the module terminals.
5. Wire field devices observing proper polarity.
6. Perform functional testing and self-test verification.

Selection Tips

• For 110Vdc applications, use 10213/2/1.
• For 60Vdc applications, use 10213/2/2.
• For loop-monitored 48Vdc outputs, consider 10216/2/3.
