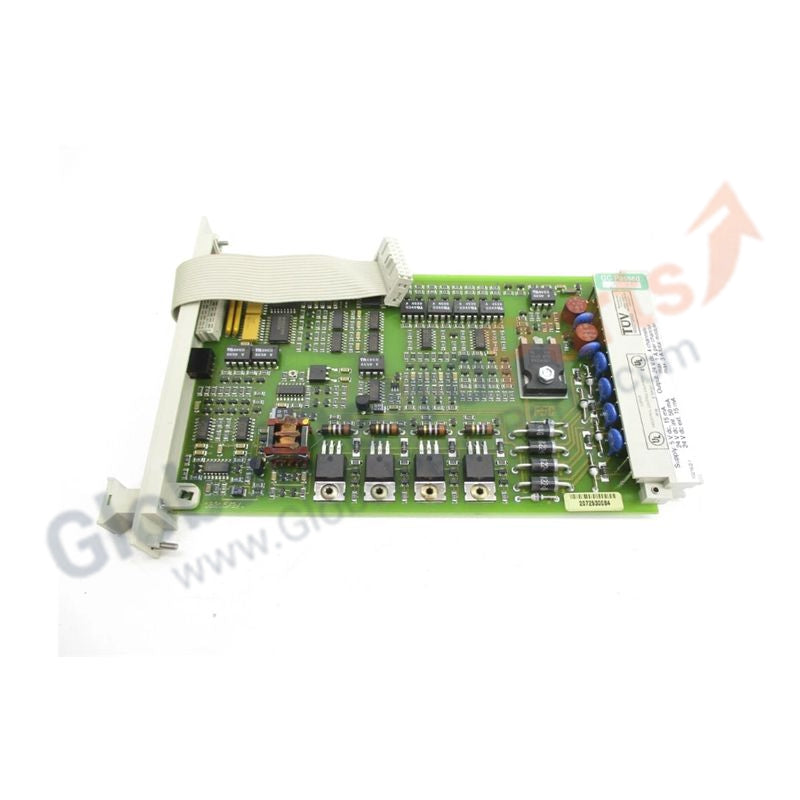

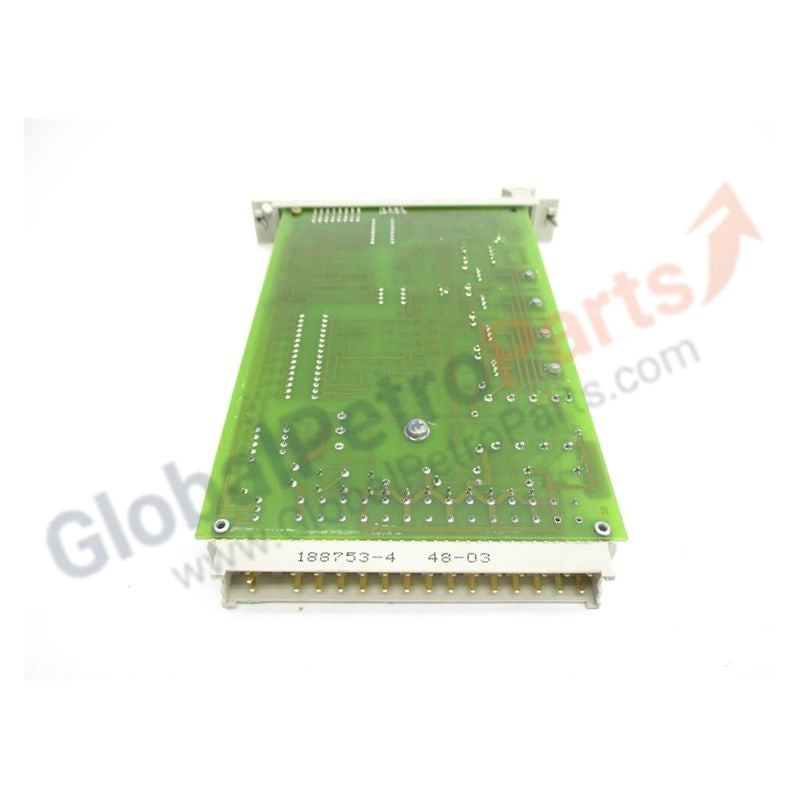

10216/2/1 Honeywell Safe Digital Output Module

Product Description

The 10216/2/1 (Part Number: 10216/2/1) is a high-integrity fail-safe digital output (DO) module for Honeywell Fail Safe Control (FSC) systems. It features four independent 24 V DC output channels, each rated up to 2 A, designed to drive high-power safety-critical loads such as large solenoid valves, motor starters, and heavy-duty alarm devices.

Engineered for Safety Instrumented Systems (SIS), the module continuously monitors its fail-safe functionality, ensuring that outputs de-energize automatically during emergencies. Integrated suppression diodes protect against inductive load effects, and the module is TUV-certified for SIL 3 applications, making it ideal for use in oil, gas, and petrochemical industries.

Technical Specifications

Application Scenarios

• Driving high-power ESD solenoid valves in refinery tank farms

• Activating fire suppression system release solenoids

• Controlling interposing relays for motor isolation in safety loops

• Managing power-intensive alarms and signaling devices in hazardous areas

Frequently Asked Questions

How does the 10216/2/1 differ from the 10201/2/1 module?
The 10216/2/1 supports higher current (2 A per channel) over 4 channels, whereas the 10201/2/1 provides lower current (550 mA) over 8 channels.

Can this module be used in SIL-3 safety loops?
Yes. When integrated into a properly configured Honeywell FSC system, the 10216/2/1 is TUV-certified for SIL-3 safety applications.
