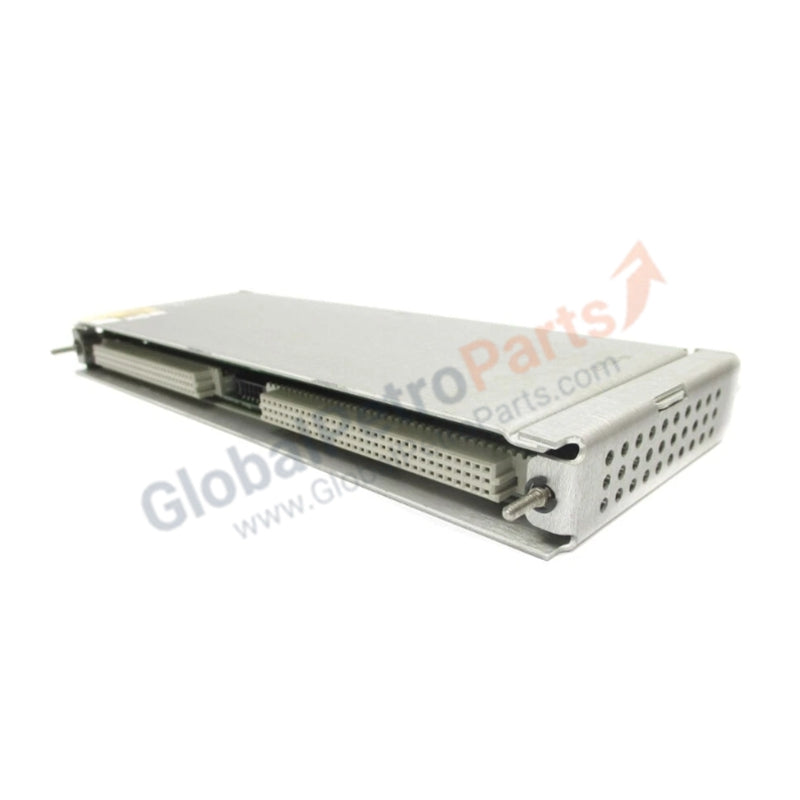

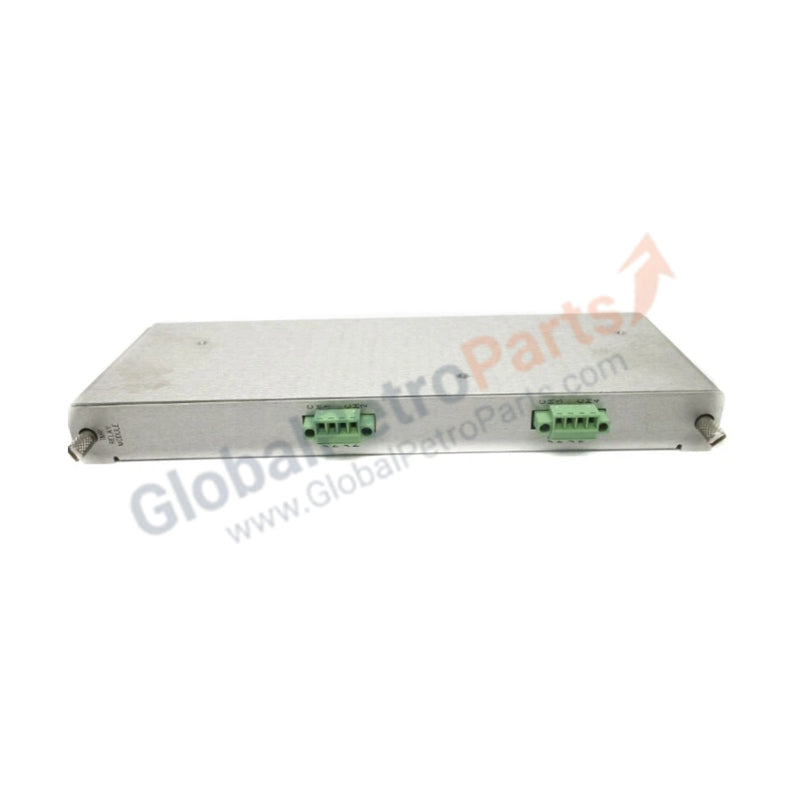

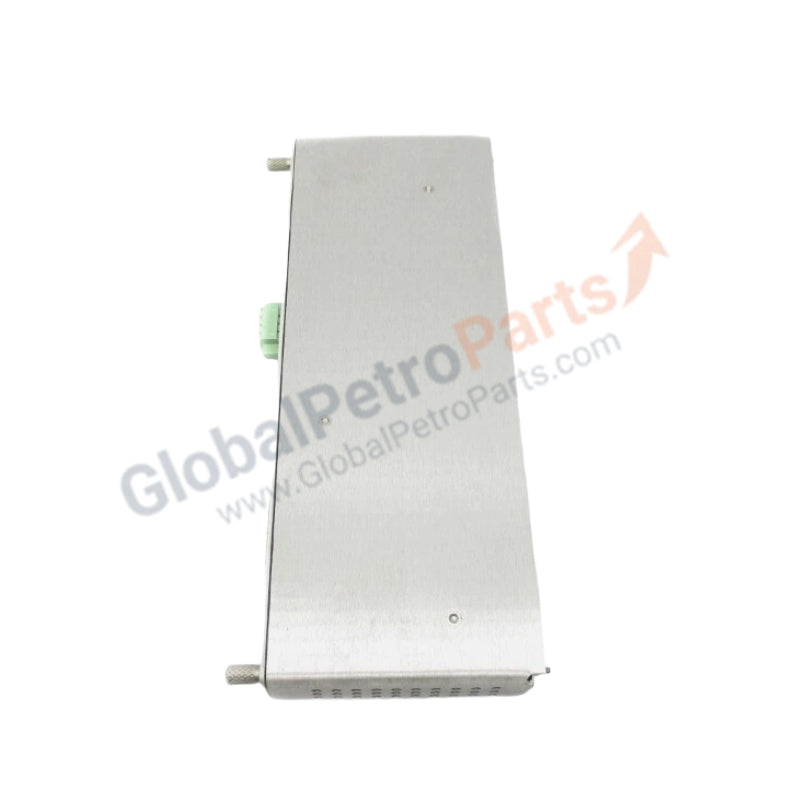

125704-01 | Bently Nevada | 3500 Series TMR Relay Module

Product Overview

The Bently Nevada 125704-01 functions as a high-integrity Triple Modular Redundant (TMR) Relay Module designed for the 3500 Machinery Protection System. This module executes critical voting logic to initiate machinery trips or alarms based on data from associated monitor modules. By utilizing TMR architecture, the 125704-01 provides the highest level of fault tolerance, ensuring that a single relay failure neither causes a nuisance trip nor prevents a legitimate safety shutdown. We supply this unit as 100% Brand New Original stock, essential for maintaining SIL-rated safety loops in power generation and oil & gas facilities.

Technical Specifications

The 125704-01 utilizes a specialized compact form factor to facilitate high-density relay voting within the 3500 rack:

Engineering Advantages

• Fail-Safe TMR Architecture: The 125704-01 implements true 2-out-of-3 voting. This hardware-based logic compares three independent signals; the module triggers the output only when at least two signals agree. This configuration eliminates false shutdowns caused by a single faulty monitor or relay coil.

• High-Speed Response Time: The module’s internal switching circuitry minimizes signal latency. It executes trip commands in milliseconds, ensuring the machinery enters a safe state before vibration or thrust levels reach catastrophic limits.

• Galvanic Isolation: The relay contacts provide robust electrical separation between the 3500 rack backplane and external Emergency Shutdown (ESD) circuits. This isolation prevents field-side electrical surges from propagating back into the sensitive processing hardware.

• Compact I/O Integration: Measuring only 5.1 cm in width, this module allows engineers to install multiple relay units within a single 3500 rack. This high density supports complex protection schemes for multi-train machinery strings without requiring external relay cabinets.

• Vibration-Hardened Interconnects: Designed for turbine-deck environments, the 125704-01 features gold-plated contact points and secure mechanical locking. These features prevent intermittent contact issues caused by the harmonic frequencies common in industrial power plants.

FAQs

• How does the 125704-01 differ from a standard 3500/32 relay module?

  The 125704-01 is specifically designed for TMR (Triple Modular Redundant) applications. While standard modules provide simple relay outputs, the 125704-01 handles the voting logic across three redundant inputs to ensure maximum system availability and safety integrity.

• Can I install this module while the 3500 rack is live?

  Yes. The 3500 system supports hot-swapping for I/O modules. However, you must first bypass or inhibit the associated trip functions in the software to prevent an accidental machinery shutdown during the physical swap of the 125704-01.

• Does the 125704-01 require an external termination block?

  This module typically serves as the I/O interface that slides into the rear of the rack. Depending on your 3500 rack configuration (Internal vs. External Termination), you may connect field wiring directly to this module or through an interconnect cable to a separate terminal strip.

• Why is "Brand New" condition mandatory for this specific part?

  Relays have a finite mechanical lifespan defined by the number of switching cycles. A Brand New Original 125704-01 guarantees that the internal contacts have zero wear, ensuring the unit meets the strict Mean Time Between Failures (MTBF) required for safety-certified machinery protection.
