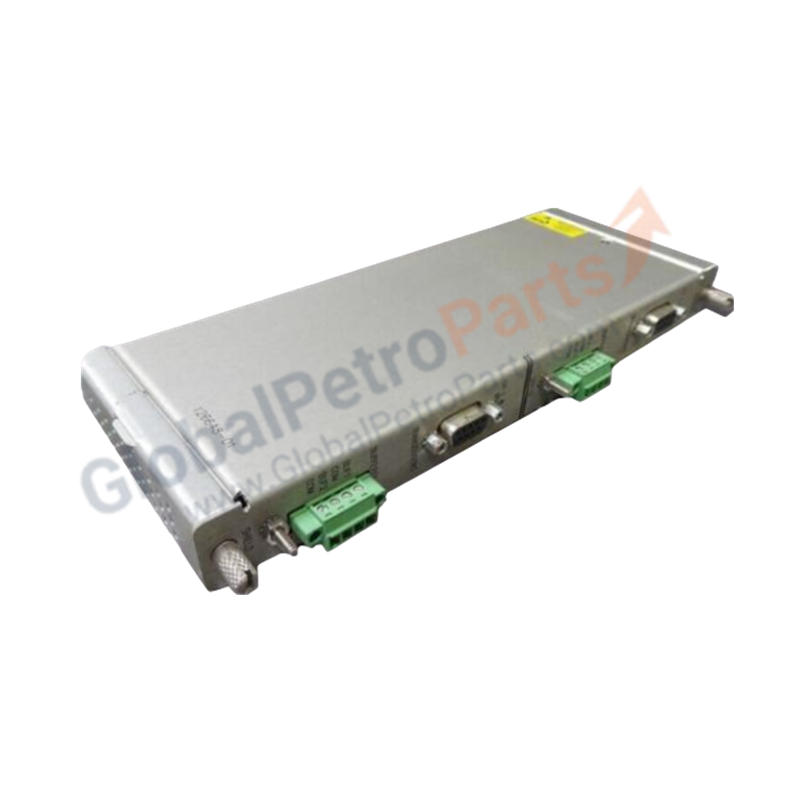

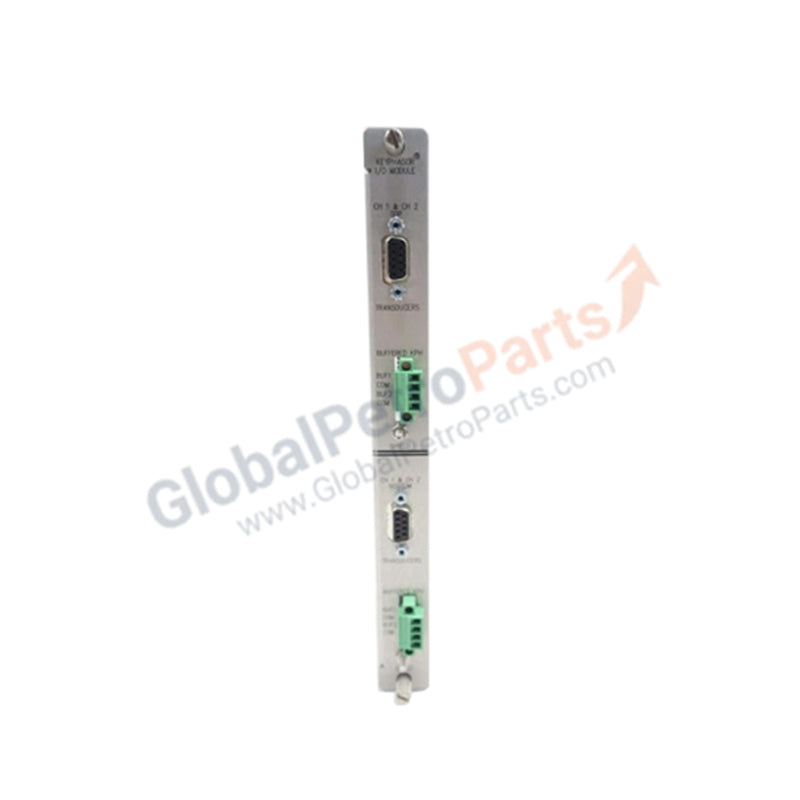

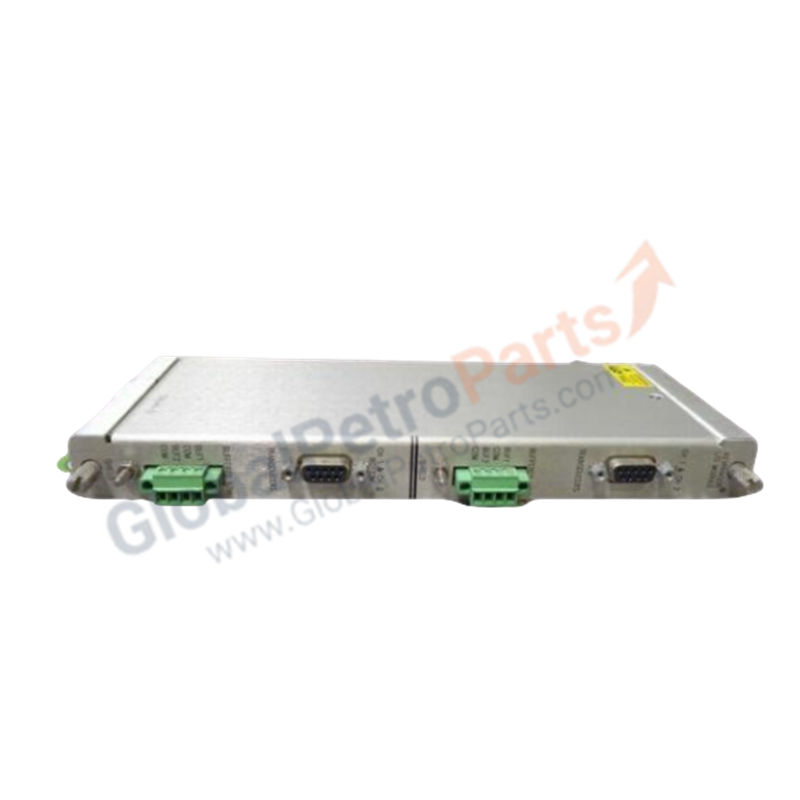

126648-01 | Bently Nevada | 3500 Series Keyphasor I/O Module

Product Overview

The Bently Nevada 126648-01 functions as a high-precision Keyphasor I/O Module within the 3500 Machinery Protection System. This module provides the essential interface between phase reference transducers (proximity probes or magnetic pickups) and the 3500 monitoring rack. It processes once-per-turn pulses to provide accurate shaft speed and phase angle data, which is critical for vector measurements and synchronous vibration analysis. We supply this unit as 100% Brand New Original equipment, ensuring your diagnostic system maintains the timing accuracy required for API 670 compliance.

Technical Specifications

The 126648-01 utilizes a compact form factor designed for seamless rear-slot integration:

Engineering Advantages

• Precision Pulse Processing: The 126648-01 conditions raw transducer signals into clean, digital trigger pulses. This high-fidelity conversion eliminates jitter, allowing the 3500 system to calculate phase angles and shaft speeds with extreme repeatable accuracy, even in high-RPM applications.

• Advanced EMI Shielding: This module incorporates specialized hardware filtering to reject electromagnetic interference. This hardening prevents "false triggers" often caused by nearby Variable Frequency Drives (VFDs) or high-voltage switching, ensuring the integrity of your phase reference data.

• Simplified Rack Integration: The 0.4 kg slim-profile design allows for easy installation in the rear I/O section of the 3500 rack. Its compact dimensions (3.5cm width) optimize cabinet space, facilitating higher density wiring in complex machinery protection suites.

• Ruggedized USA Construction: Manufactured in the United States, the 126648-01 utilizes industrial-grade components that withstand the thermal stresses of continuous 24/7 operation. The gold-plated connectors resist corrosion, maintaining stable contact resistance over the module’s entire service life.

• Direct Field Termination: The internal termination design allows for direct wiring of proximity probe or magnetic pickup cables. This removes the need for intermediate terminal blocks, reducing potential failure points and lowering overall installation costs.

FAQs

• Which front-panel monitor module pairs with the 126648-01?

  The 126648-01 I/O module resides in the rear slot directly behind the 3500/25 Enhanced Keyphasor Module. It provides the physical landing points for the sensors that the 3500/25 processes.

• Does this module support magnetic pickups?

  Yes. The 126648-01 accepts signals from both proximity probes and magnetic pickups. You must configure the corresponding 3500/25 monitor via software to match the specific transducer type and threshold voltage of your hardware.

• Can I replace this module while the 3500 rack is energized?

  The 3500 system supports "hot-swapping" of I/O modules; however, you must first bypass any associated trip logic. Removing a Keyphasor I/O module without a software bypass may result in "Not OK" statuses or unintended machinery trips if the speed data is linked to safety interlocks.

• Why should I avoid refurbished 126648-01 modules?

  Keyphasor timing is safety-critical. Refurbished modules often contain aged capacitors and worn transceivers that introduce phase drift. Only a 100% Brand New Original unit guarantees the factory-rated signal integrity and MTBF (Mean Time Between Failures) necessary for high-speed rotating asset protection.
