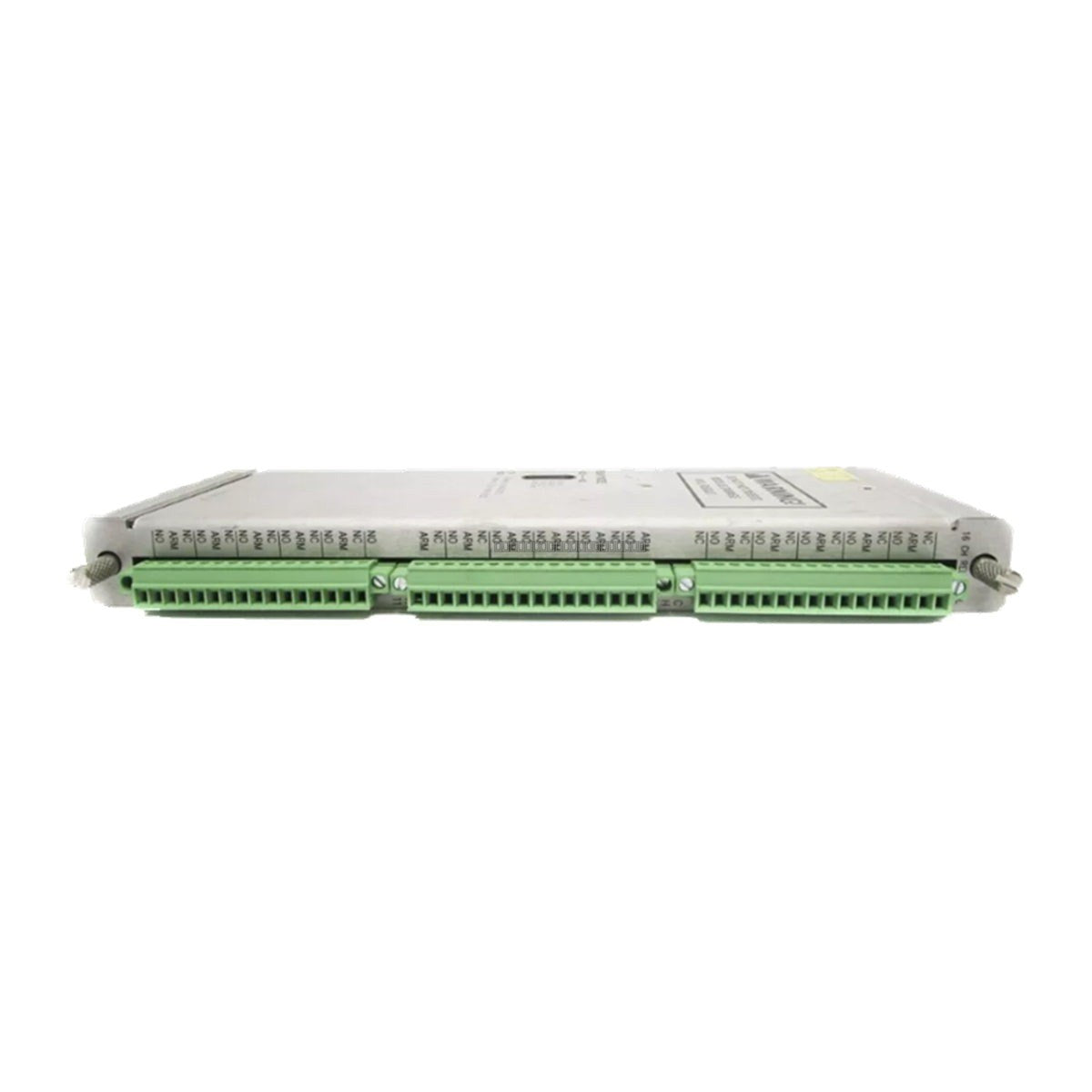

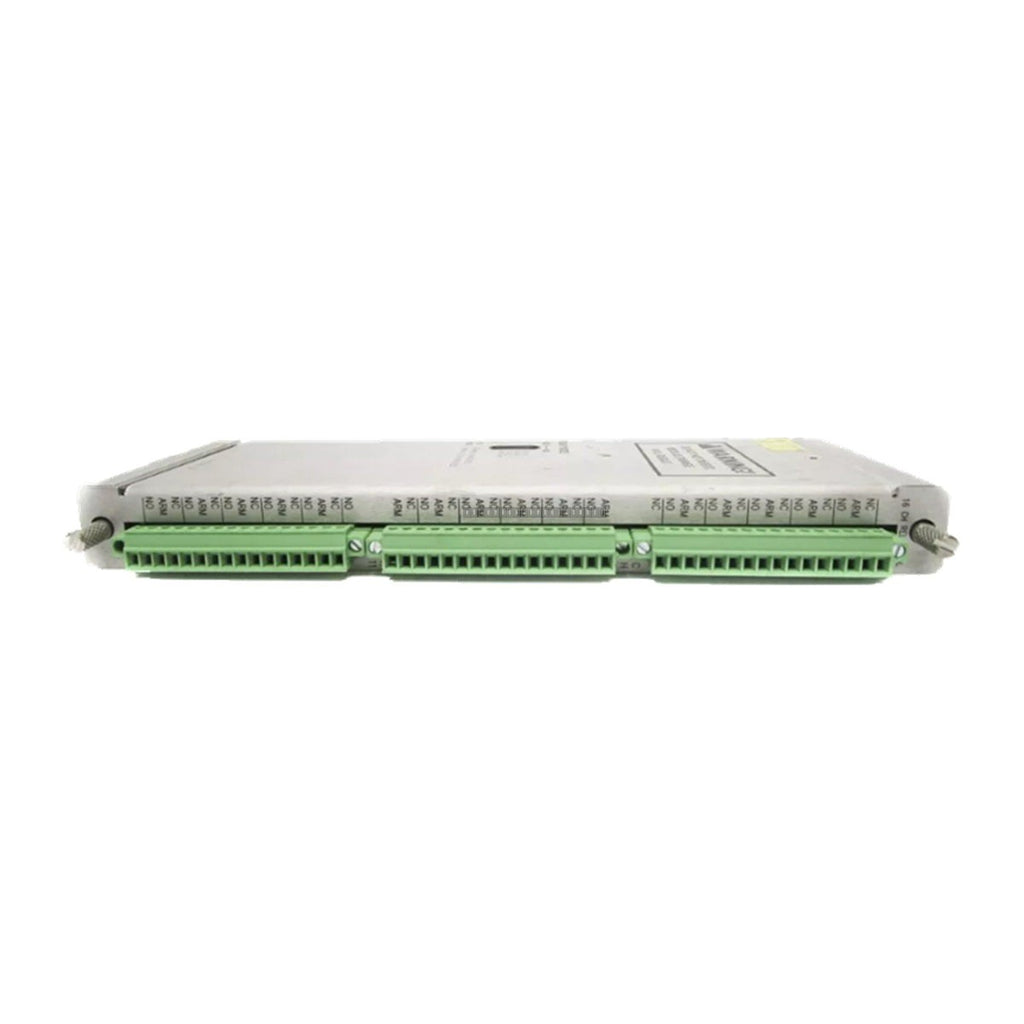

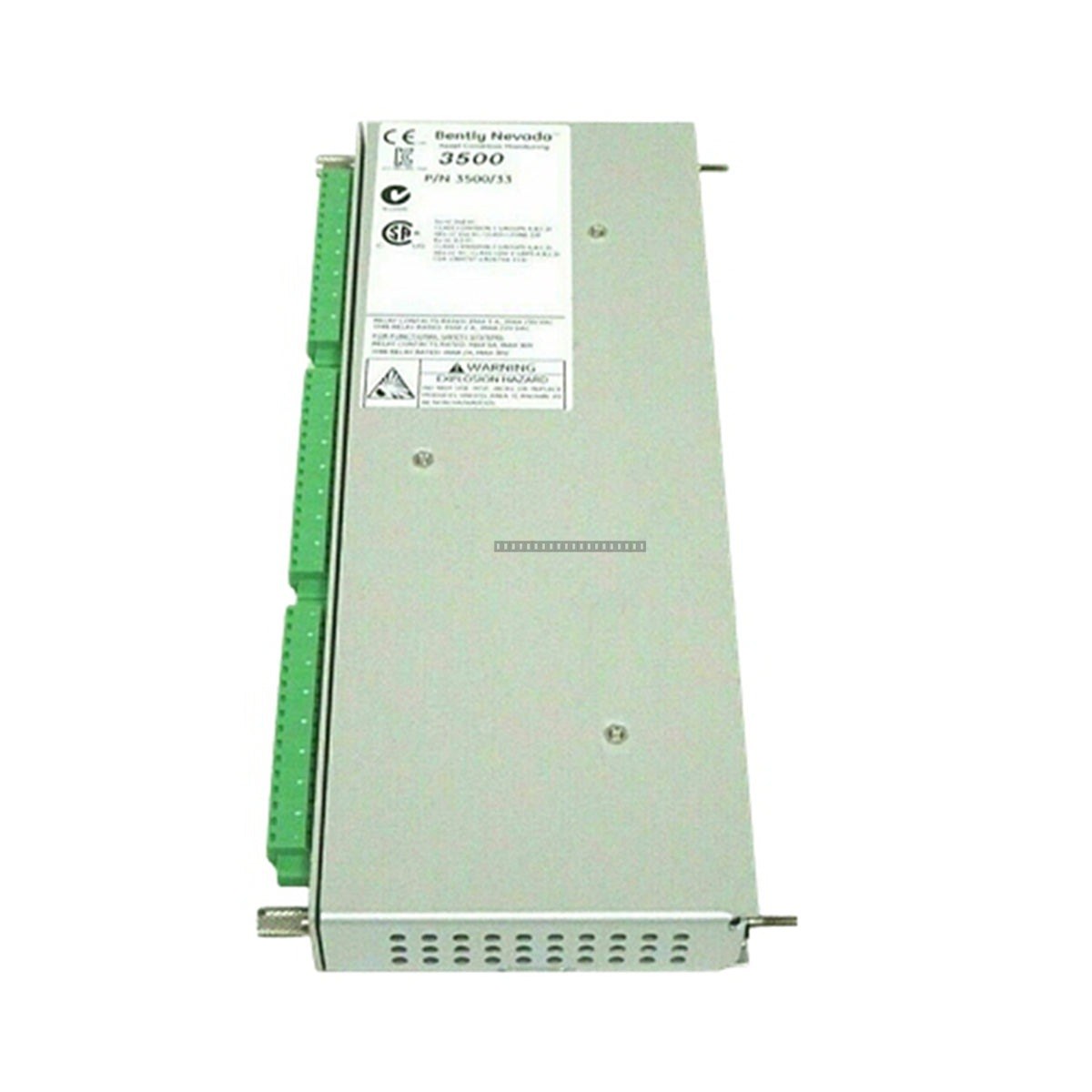

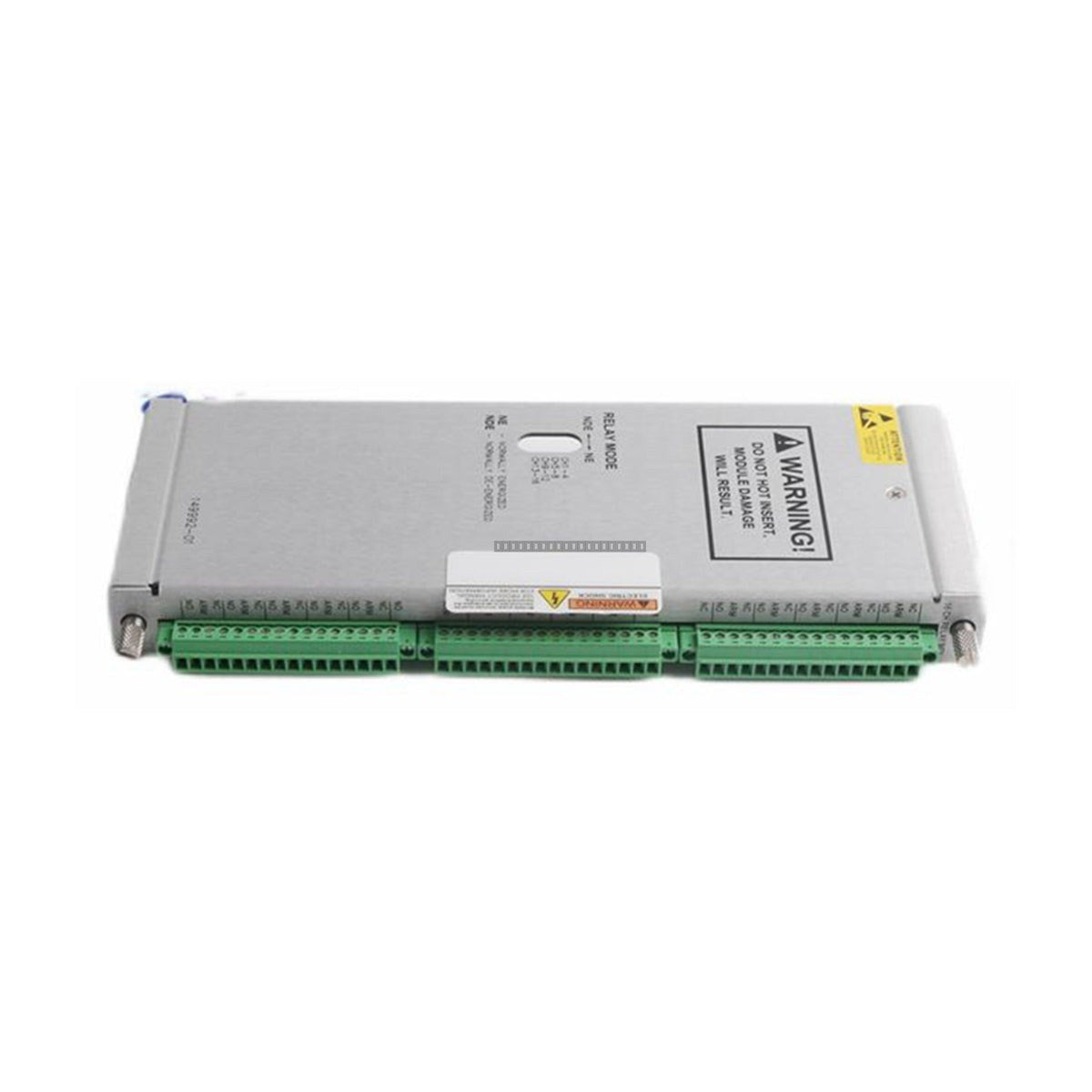

Bently Nevada 149992-01 16-Channel Relay Output Module

Description

The Bently Nevada 149992-01 is a 16-Channel Relay Output Module designed for integration into the 3500 Machinery Protection System. This full-height module provides sixteen independently programmable SPDT (Single Pole Double Throw) relay outputs, converting machinery protection events into hardwired control signals for external automation, safety systems, and equipment interlocking. It is a critical component for managing alarm annunciation and shutdown control in rotating machinery monitoring applications.

Features

• 16 independent SPDT relay outputs.
• Full-height rack module design.
• Configurable Alarm Drive Logic using AND/OR operators.
• Supports inputs from Alert, Danger, and Not-OK statuses.
• Programmable via 3500 Rack Configuration Software.

Applications

• Nuclear, thermal, and hydroelectric power generation plants.
• Turbine monitoring (bearings and stator windings).
• Pump and motor protection (winding and bearing housing temperature monitoring).
• Gearbox lubrication and internal friction monitoring.
• General industrial equipment protection (fans, blowers, extruders).

Technical Specifications

Installation Guidelines

• Rack Placement: Install in any available slot to the right of the Transient Data Interface (TDI) or Rack Interface Module (RIM).
• Power: Connect to the 3500 rack backplane for -24 Vdc power supply.
• Handling: Use standard ESD precautions when handling the module to prevent damage to internal circuitry.
• Configuration: Requires 3500 Rack Configuration Software (version 3.3 or later) for logic assignment.
• Safety: Always power down the rack before inserting or removing modules to prevent electrical faults or data corruption.

FAQs

What is the primary function of the 149992-01?

The 149992-01 is a relay output module used to trigger external alarms or shutdown sequences based on programmed voting logic from the 3500 machinery protection system.

What software is required for this module?

Configuration requires 3500 Rack Configuration Software (version 3.3 or later), Data Acquisition version 2.40, and Data Display version 1.40 or later.

Does this module include the control module?

The 149992-01 typically refers to the I/O module component of the relay assembly. Ensure your system configuration matches the required control module (149986-01) for full functionality.
