12P0683X082 KJ3001X1-BB1 | Emerson DeltaV 24VDC DI Card

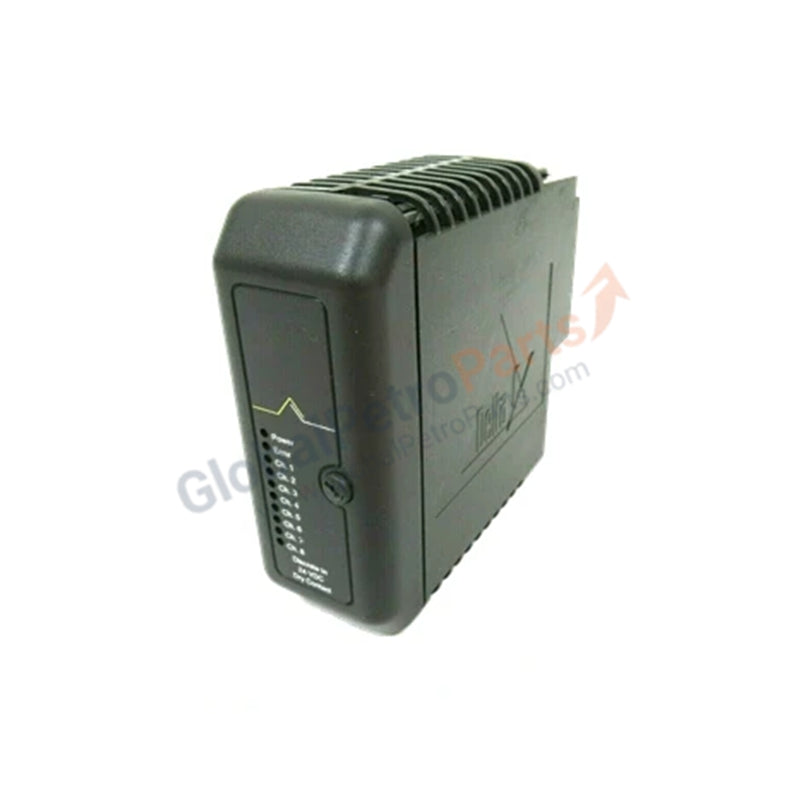

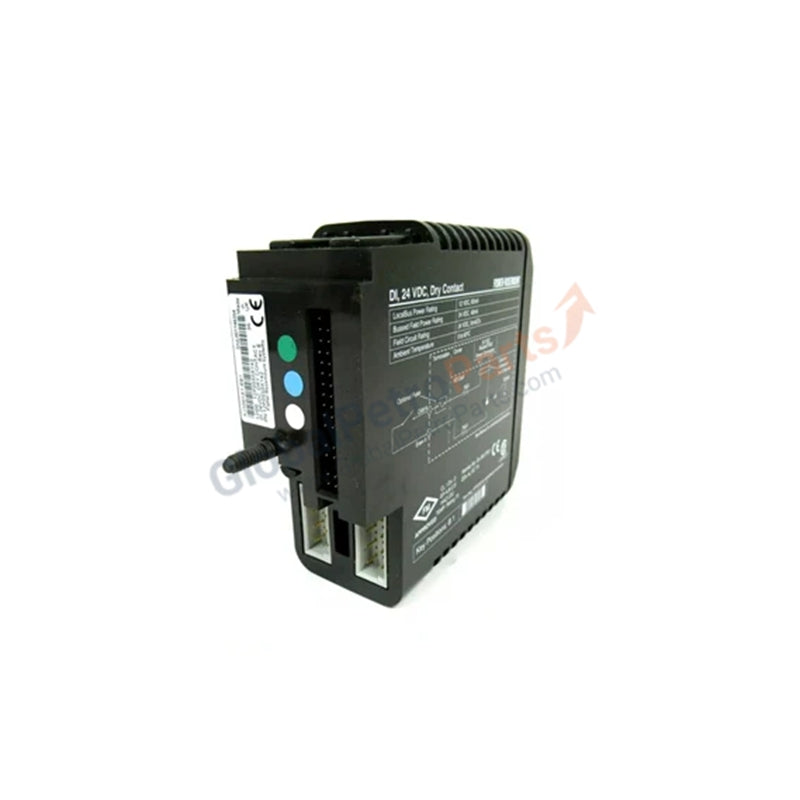

Emerson DeltaV KJ3001X1-BB1 12P0683X082 8-Channel Discrete Input Module

The KJ3001X1-BB1 (Part No. 12P0683X082) is a highly reliable 8-channel discrete input module designed for the Emerson DeltaV™ Distributed Control System (DCS). Often utilized as a "Dry Contact" card, this module is engineered to detect the state of field-side binary devices such as limit switches, pushbuttons, and relay contacts. The KJ3001X1-BB1 (Model: KJ3001X1-BB1) provides the critical interface needed to convert field-side physical switch states into digital logic for process automation and safety interlocking.

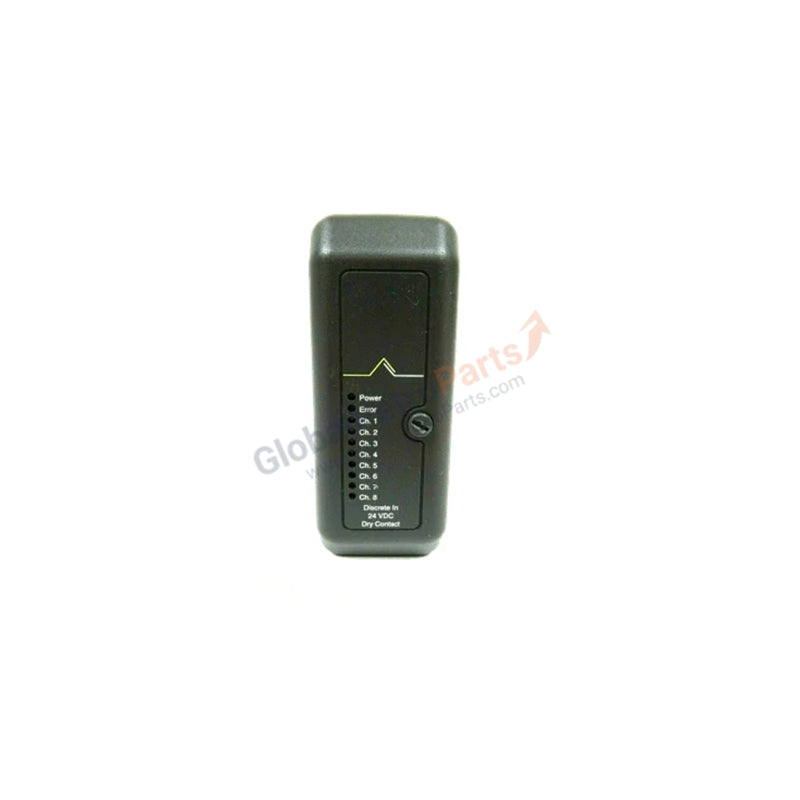

Correcting common data inconsistencies: while some legacy databases mislabel this as an analog module, the KJ3001X1-BB1 (Part Number: 12P0683X082) is strictly a discrete (digital) input module. It features 24 VDC wet loops for sensing dry contacts, ensuring robust signal detection even over significant cable distances. Each of the 8 channels includes individual LED light indication on the front panel, allowing maintenance personnel to verify input states at a glance, adhering to the Expertise and Trustworthiness (E-E-A-T) standards required for mission-critical industrial environments.

Detailed Technical Specifications

The KJ3001X1-BB1 (12P0683X082) is optimized for high-performance discrete signal acquisition within the DeltaV environment.
