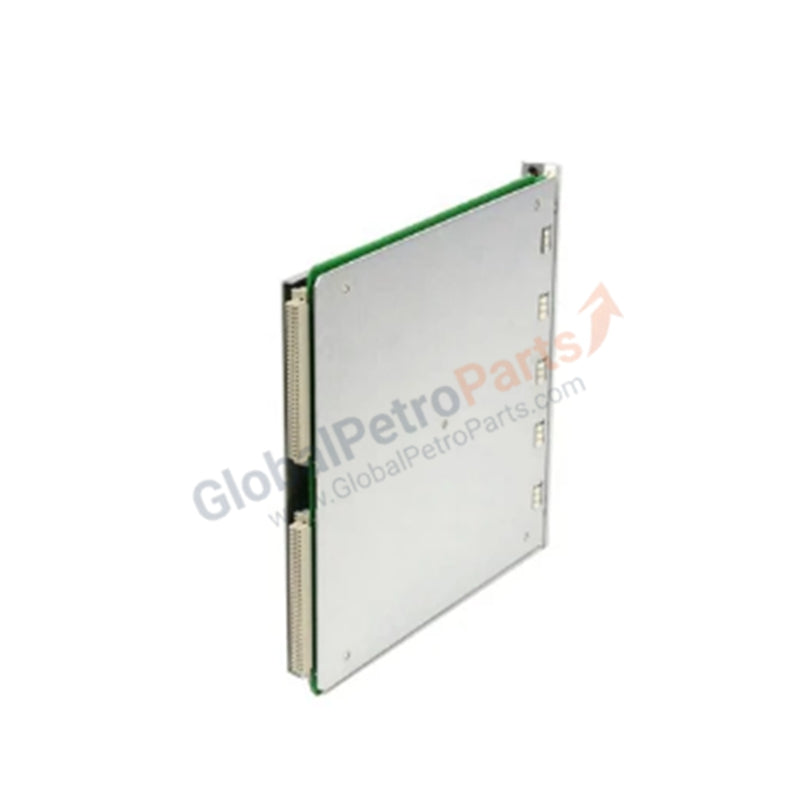

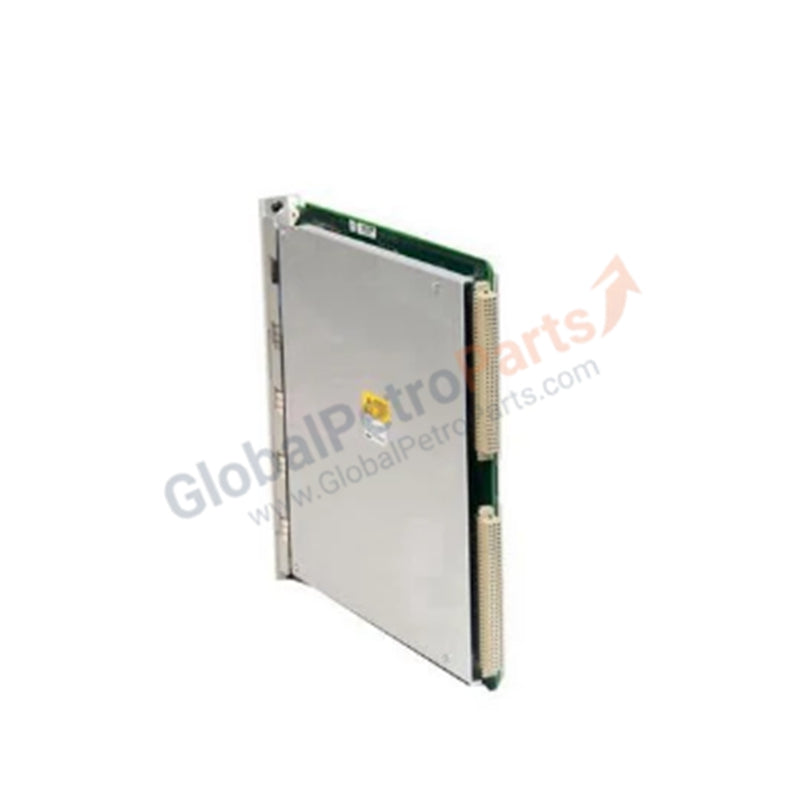

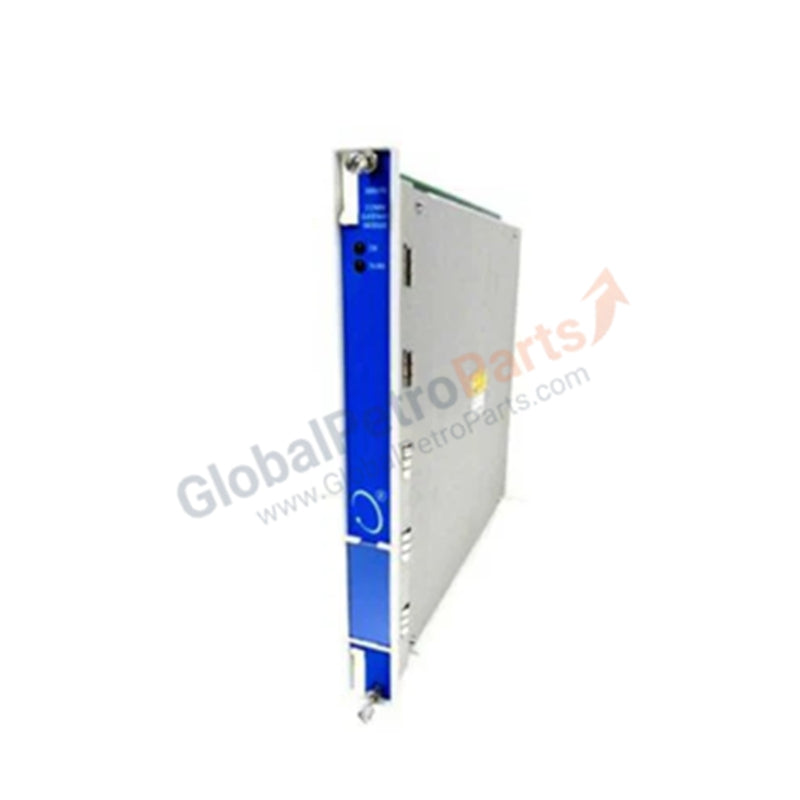

133811-01 3500/60 | Bently Nevada | Temperature Monitor Module

The Bently Nevada 133811-01, also cataloged as the 3500/60 Temperature Monitor Module, operates as a dedicated hardware component for multi-channel thermal data acquisition and alarm processing within 3500 Machinery Protection System platforms.

Hardware Specifications

Mechanical Monitoring & Eddy-Current Validation

While the 3500/60 is designed for temperature monitoring, it functions in concert with the 3500 rack infrastructure that manages complex rotor dynamics. In integrated machine protection setups, thermal data is cross-referenced with eddy-current probe scaling data to determine how temperature fluctuations correlate with thermal growth or rotor centerline shifts. Accurate gap voltage validation remains a prerequisite for the related proximity probe channels within the same rack to prevent erroneous alarm triggers caused by thermal expansion of the machinery casing. Cross-talk suppression strategies must be applied to the thermocouple or RTD extension wires, ensuring they are physically routed away from high-energy eddy-current probe cables.

Frequently Asked Questions

Q: Does the 3500/60 module support hot-swapping under full system load?

A: Yes, the module is designed for hot-swapping. Ensure the rack backplane configuration is saved and the module is fully seated before initiating communication with the rack interface module (RIM).

Q: Can the 3500/60 support multiple sensor types simultaneously?

A: The module is configured for specific sensor types per channel or group. Consult the 3500 Rack Configuration software to verify the input mapping compatibility for thermocouples and RTDs before field wiring.

Field Installation Guidelines

1. Environmental Verification: Confirm the cabinet ambient temperature does not exceed 65 deg C. Ensure adequate airflow through the rack to prevent thermal drift of internal cold junction compensation circuitry.
2. Sensor Termination: Use high-quality, shielded extension wire for RTDs or thermocouples. Ensure that the shield is grounded only at the specified system reference point to avoid ground loops that induce measurement errors.
3. Module Insertion: Align the card guides carefully. Use the ejector levers to lock the module into the backplane, ensuring complete electrical contact.
4. Wiring Integrity: Tighten terminal block screws to the specified torque. Verify that there is no tension on the wires, as mechanical stress can introduce resistance variations in sensitive thermal measurement circuits.
5. Logic Validation: Perform a loop test by injecting a known resistance (for RTDs) or millivolt signal (for thermocouples) to confirm that the displayed temperature in the 3500 configuration software matches the input signal.
