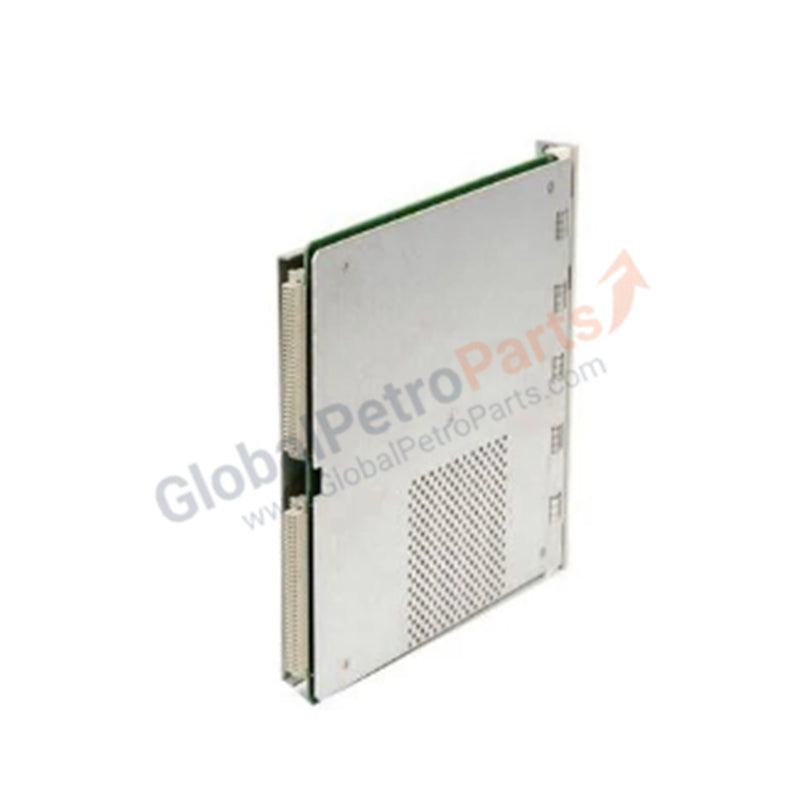

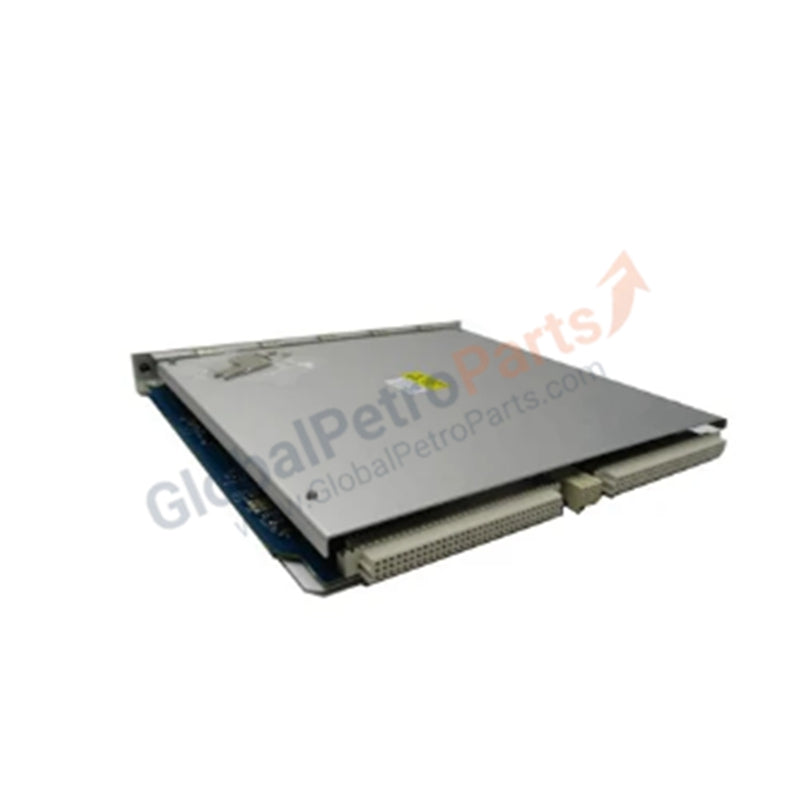

136179-01 4-Channel Isolated Input Module | Bently Nevada

Configured for high-density vibration signal acquisition within machinery protection platforms, the Bently Nevada 136179-01 (136179-01) 4-Channel Isolated Input Module provides direct physical and electrical execution for sensor interfacing and noise-immune data capture.

Hardware Specifications

Mechanical Monitoring & Cross-Talk Suppression

The 136179-01 module employs galvanic isolation across its four input channels to maintain signal integrity in environments prone to electromagnetic interference. Proper implementation of this module requires strict adherence to eddy-current probe scaling protocols, particularly when interfacing with non-contact proximity sensors to measure shaft centerline motion. To achieve high-fidelity rotor dynamics data, users must validate that gap voltages remain within nominal -10 VDC targets, preventing non-linear response regions. The internal circuitry is optimized for cross-talk suppression, ensuring that high-amplitude vibration signals on one channel do not couple into adjacent measurement loops.

Frequently Asked Questions

Q: Does this module support hot-swapping during normal rack operation?

A: Yes, the 136179-01 module is designed for hot-swapping. Ensure the rack interface has updated the slot status and that trip logic is inhibited in the configuration software before module extraction to prevent spurious machinery events.

Q: How does the channel isolation benefit vibration monitoring?

A: The channel-to-channel isolation prevents ground loops and mitigates the transmission of common-mode electrical noise between independent transducer loops, ensuring that each channel provides a clean measurement of the mechanical vibration profile.

Field Installation Guidelines

1. Environmental Verification: Ensure the mounting rack is clean and free of metallic debris. Verify that the ambient temperature remains within the specified industrial rating to prevent thermal drift.
2. Backplane Engagement: Align the module with the rack slot guides and seat firmly into the backplane connector. Secure the front panel using the integrated locking levers to ensure chassis grounding.
3. Signal Cabling: Terminate vibration transducer leads to the module's I/O connector block. Utilize shielded, twisted-pair cabling to maintain immunity to induced electromagnetic noise.
4. Shield Grounding: Connect signal shields to the common instrumentation ground at the rack entry point only. Avoid multiple grounding points, which can introduce ground loops and compromise measurement accuracy.
5. Configuration Verification: Use the system configuration software to map the four channels and assign the appropriate transducer scaling factors. Confirm input signal arrival using a calibrated vibration source before enabling alarm logic.
