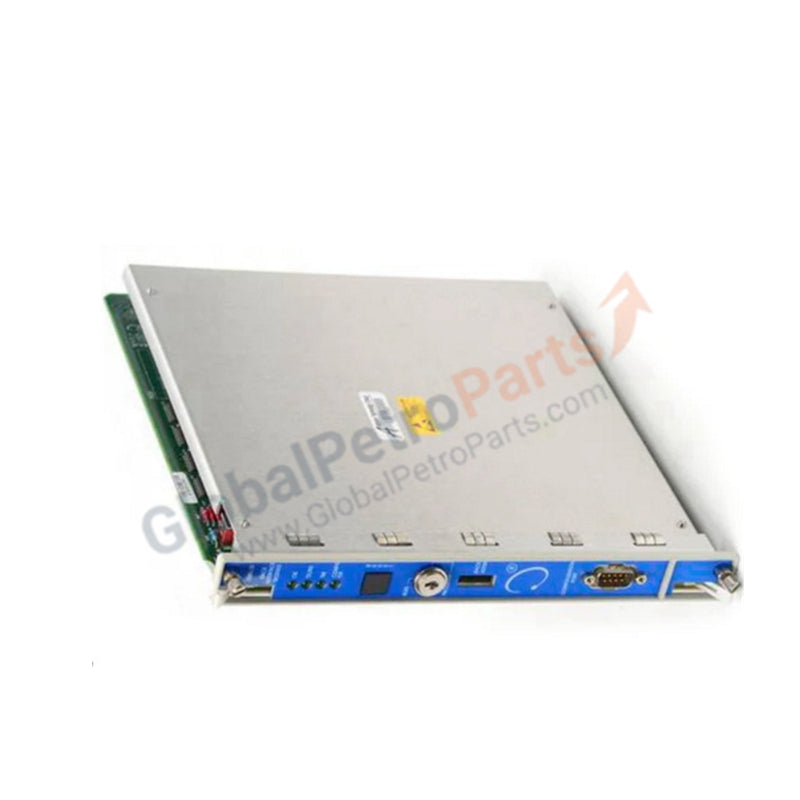

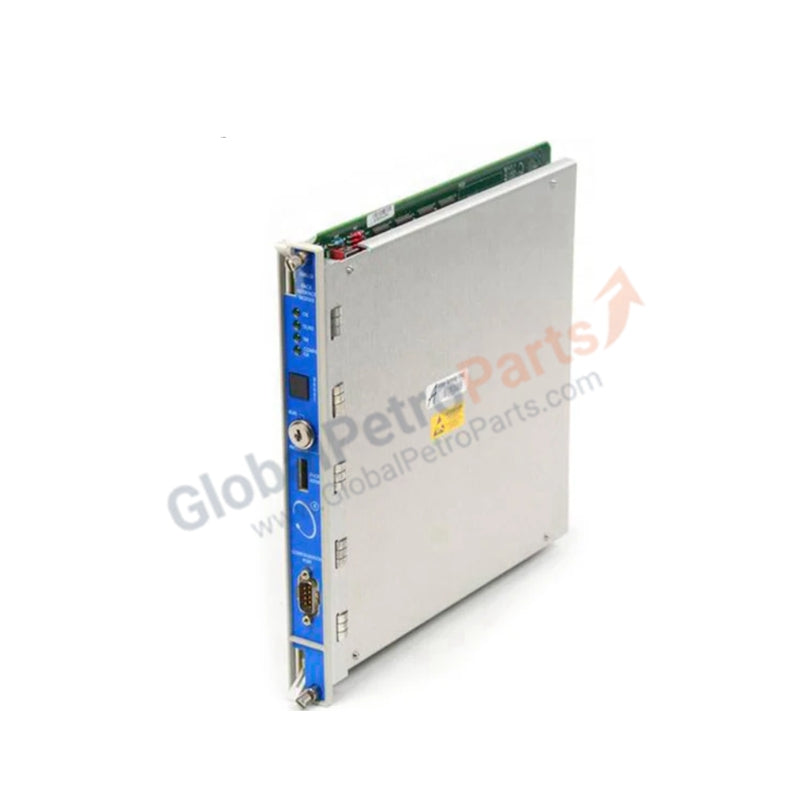

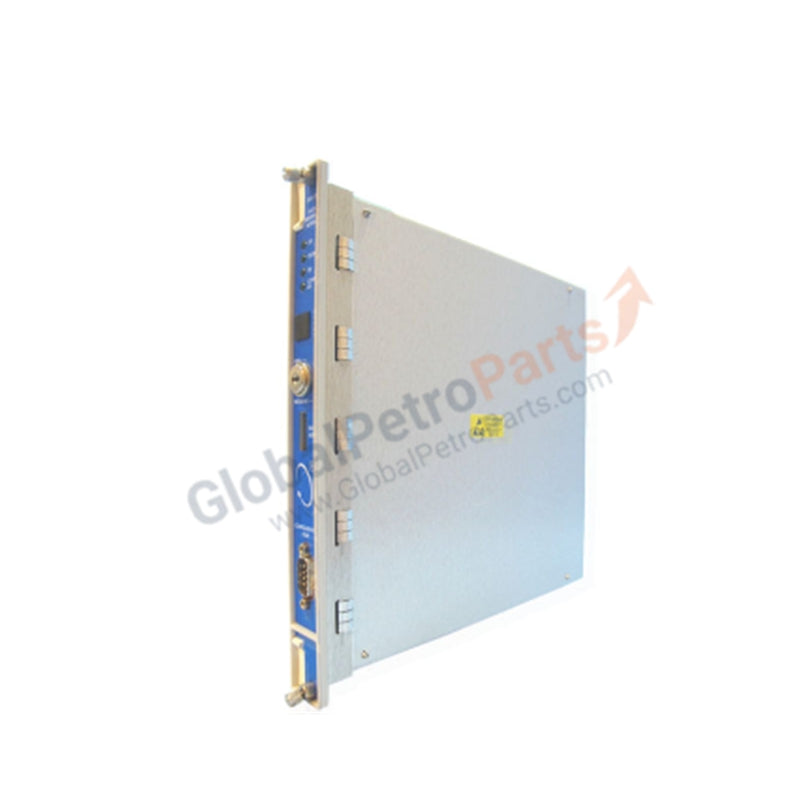

138607-01 | Bently Nevada | 3500/22M Standard Transient Data Interface Module

Overview
The 3500/22M 138607-01 Standard Transient Data Interface (TDI) Module by Bently Nevada provides seamless communication between the 3500 monitoring rack and connected software, enabling reliable acquisition of static, dynamic, and transient data. This module integrates TDI functionality with Ethernet I/O capabilities for robust system monitoring.

Technical Specifications

• Model: 3500/22M 138607-01

• Module Type: Standard Transient Data Interface

• I/O Module Options:

• 01: 10Base-T/100Base-TX Ethernet

• 02: 100Base-FX Fiber-Optic Ethernet

• Transient Data Interface Type:

• 01: Standard for regular monitoring applications

• 02: TMR for triple modular redundant systems

• Agency Approval Options:

• 00: None

• 01: CSA/NRTL/C

• 02: CSA/ATEX

• Installation Slot: Adjacent to power supply modules in the 3500 rack

• Power Consumption: 10.5 W

• Input Voltage Range: –10 V DC to +10 V DC

• Front Panel Port: USB-B for local configuration

• Ethernet Connectivity: Supports both copper (10Base-T/100Base-TX) and fiber-optic (100Base-FX) connections

• Operating Temperature: –30 °C to +65 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity Range: 0%–95% non-condensing

• Weight: 0.91 kg (TDI Module) + 0.20 kg (I/O Module), total 1.11 kg

Features

• Combines transient data collection with rack interface functions in a single module

• Compatible with System 1 and 3500 Configuration Software for advanced diagnostics

• Supports pre- and post-event waveform recording for detailed monitoring analysis

• Flexible networking with both copper and fiber Ethernet options

• Optional TMR configuration for redundant systems requiring high availability

Applications
Designed for standard and critical monitoring setups in rotating machinery and condition monitoring environments.

FAQ
Q: Can this module be used in triple modular redundant systems?
A: Yes, select TDI Type 02 and corresponding I/O module for TMR support.

Q: What Ethernet options are available?
A: Copper 10Base-T/100Base-TX or fiber-optic 100Base-FX depending on selected I/O module.
