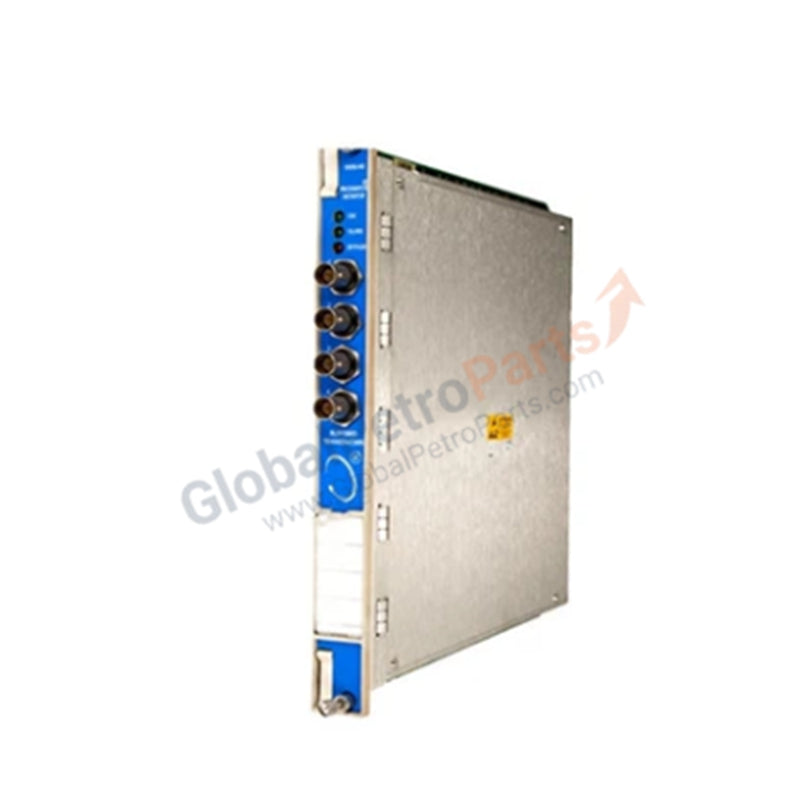

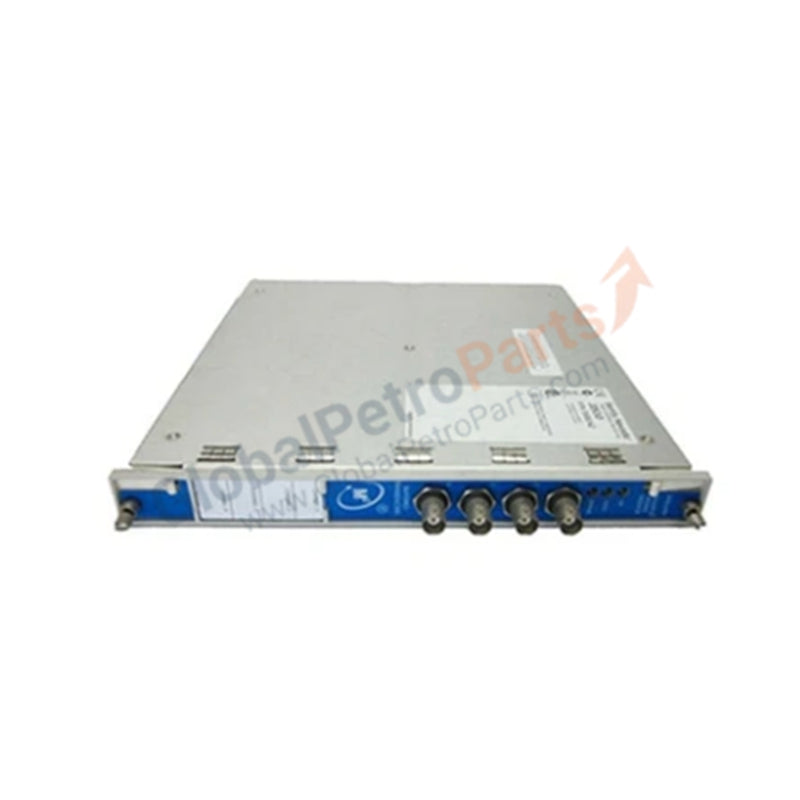

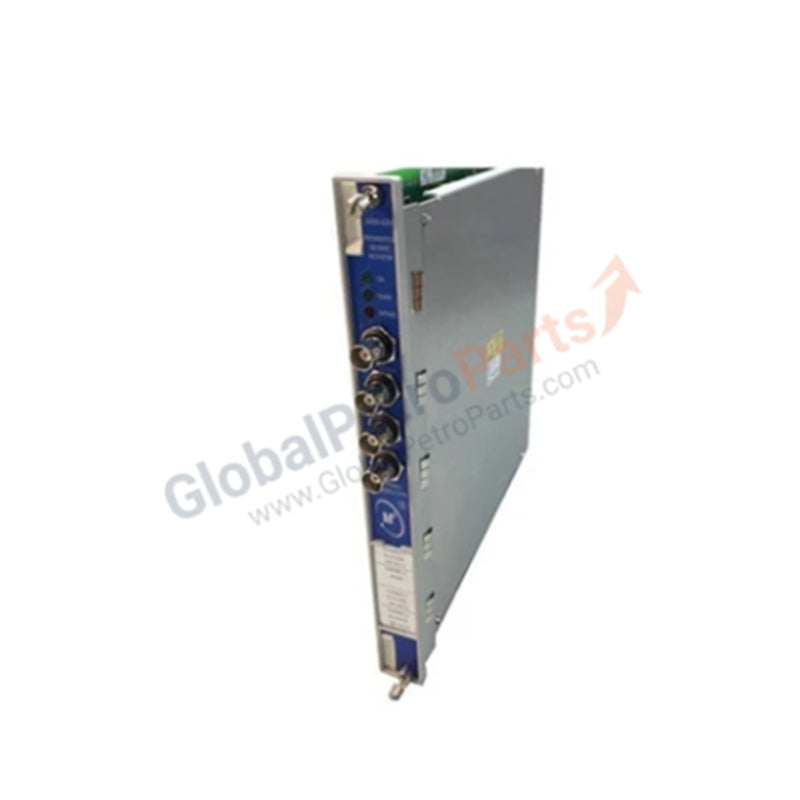

140734-04 3500/45 | Bently Nevada | Position Monitor Module

Configured for displacement and position monitoring in 3500 Machinery Protection System platforms, the Bently Nevada 140734-04 (3500/45 Position Monitor Module) provides direct physical and electrical execution for sensor data acquisition and alarm logic processing.

Hardware Specifications

Mechanical Monitoring & Eddy-Current Validation

The 140734-04 module interface is engineered for high-precision measurement of shaft axial position and radial displacement using eddy-current proximity probes. Operational accuracy is dependent on rigorous gap voltage validation, where transducer targets are maintained at -10 VDC to ensure a linear output characteristic. The module performs real-time rotor dynamics analysis, processing raw input signals to detect shifts in rotor centerline position. To maintain signal integrity, cross-talk suppression must be enforced at the wiring level; input leads must be routed to avoid proximity to high-current AC cabling or other electromagnetic noise sources that could interfere with low-millivolt displacement signals.

Frequently Asked Questions

Q: Does the 3500/45 module support hot-swapping under normal system power?

A: Yes, the 3500 rack backplane supports hot-swapping. Ensure the system software has properly initialized the slot communication before and after the module exchange to prevent unintended trip signals.

Q: How is the axial position reference established for this module?

A: The module relies on the transducer scaling factor (typically 200 mV/mil) and a zero-position reference established during system calibration, correlating the -10 VDC gap voltage to a defined mechanical null point.

Field Installation Guidelines

1. Environmental Verification: Ensure the rack cabinet environment is clean and dry. Confirm that ambient temperatures remain within the design rating to prevent thermal drift of the signal conditioning circuitry.
2. Backplane Insertion: Align the module carefully with the rack guides. Seat the card fully until the backplane connector achieves firm contact, then secure the front panel retention mechanism.
3. Shielding and Grounding: Utilize shielded, twisted-pair cabling for all proximity sensor inputs. Terminate the shield at the common instrumentation ground bus within the rack to minimize common-mode noise.
4. Wiring Integrity: Tighten terminal block connections to the specified torque. Avoid creating stress points on the transducer cables to prevent fatigue-related resistance fluctuations.
5. System Commissioning: Perform a channel-check to verify that the digitized position data in the 3500 configuration software aligns with the physical shaft displacement measured via a calibrated external indicator.
