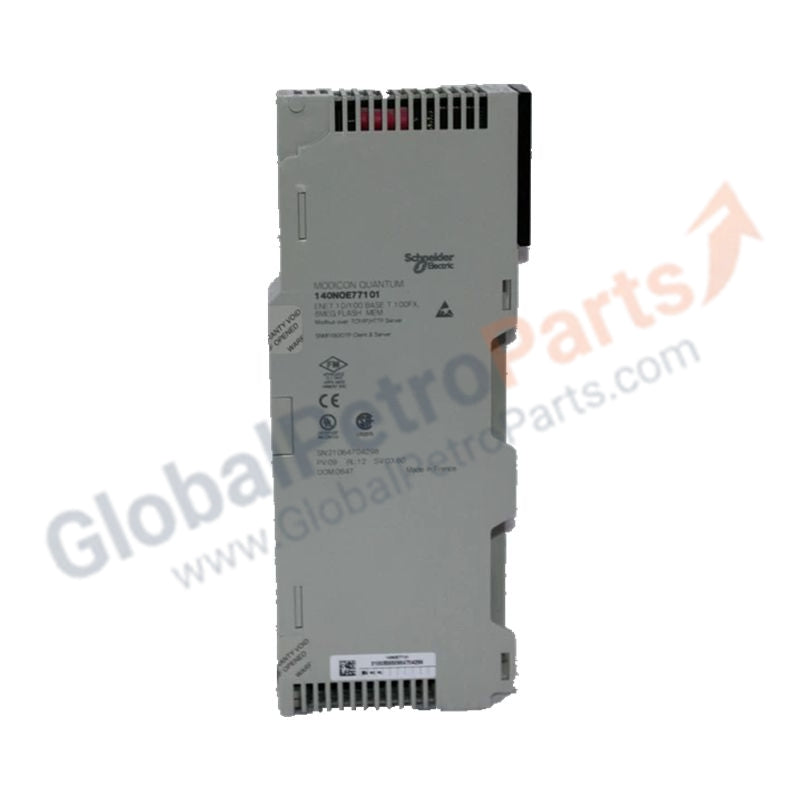

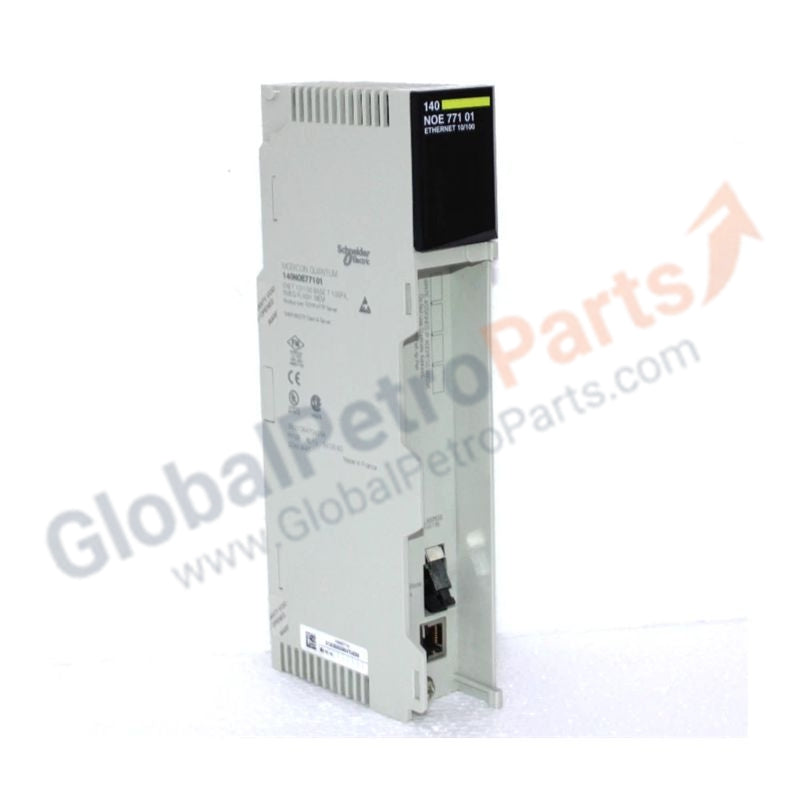

140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module
  • 140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module
  • 140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module
  • 140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module
140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module

Schneider

140NOE77101 Schneider Electric Quantum Ethernet TCP/IP Module

In stock

  • Manufacturer: Schneider

  • Product No.: 140NOE77101

  • Product Type: Ethernet TCP/IP Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 345g

  • Shipping port: Xiamen

  • Warranty: 12 months

Special offer ends!
00 :
00 :
00

Product Description

140NOE77101 (Part Number: 140NOE77101) is an Ethernet communication interface for the Modicon Quantum platform. It connects Quantum PLCs to standard Ethernet TCP/IP networks, enabling peer-to-peer communication, HMI/SCADA connectivity, and programming.

The module supports a built-in HTTP server for remote diagnostics and monitoring, handles intensive data traffic efficiently, and includes flash memory for firmware updates.

Technical Specifications

Feature Specification
Product Range Modicon Quantum
Communication Port 1 × RJ45, 10/100 Mbps, auto-sensing
Bus Protocol Ethernet TCP/IP
Services Supported Modbus TCP (Client/Server), HTTP Web Server, BOOTP/DHCP, SNMP, FTP
Addressing Software or hardware (MAC Address)
Embedded Web Server Data Editor, Rack Viewer, Ethernet Statistics
Current Consumption 750 mA from backplane
Transmission Rate 10/100 Mbit/s (Full/Half Duplex)
Diagnostics Module: RUN, ERR, COL
Network: ACT, LINK, 100MB
Weight 0.345 kg

Applications

  • Large-scale distributed control systems (DCS)

  • Data logging and remote telemetry

  • Interlocking between multiple PLC racks

  • Integration with SCADA systems (Ignition, Wonderware, FactoryTalk View)

Notes

  • Hot Standby (HSBY) compatible for high-availability communication

  • Not for ERIO scanning; use 140NOC series for Ethernet Remote I/O

  • Web server access: via standard browser using module IP; no special software required
