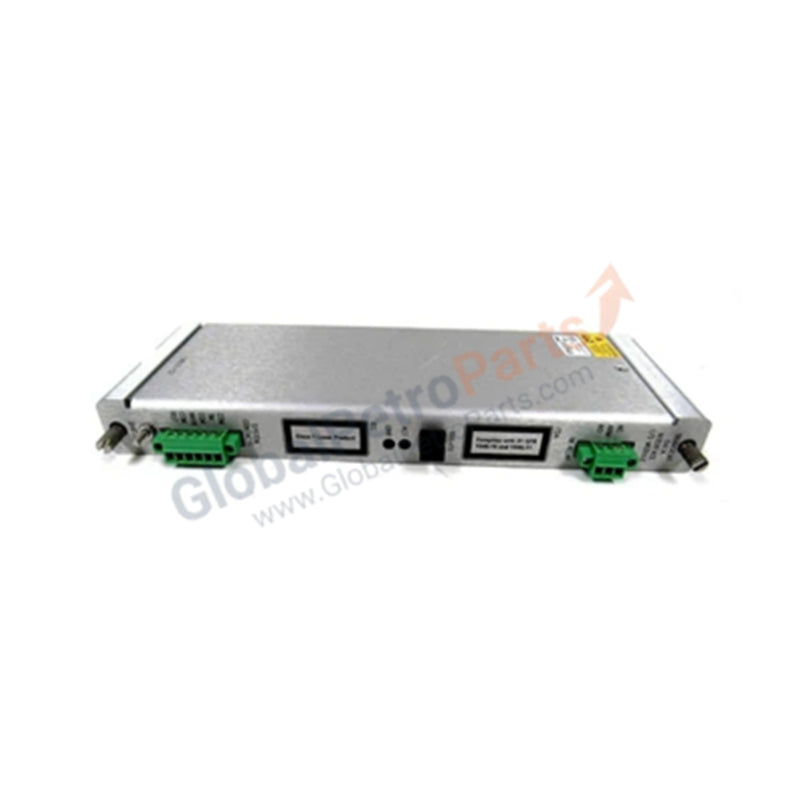

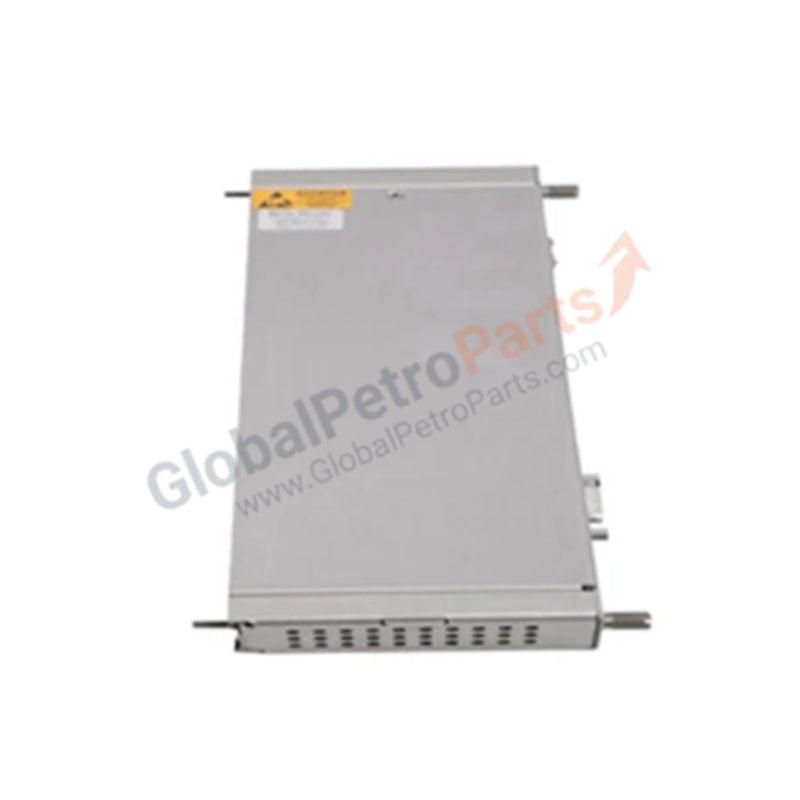

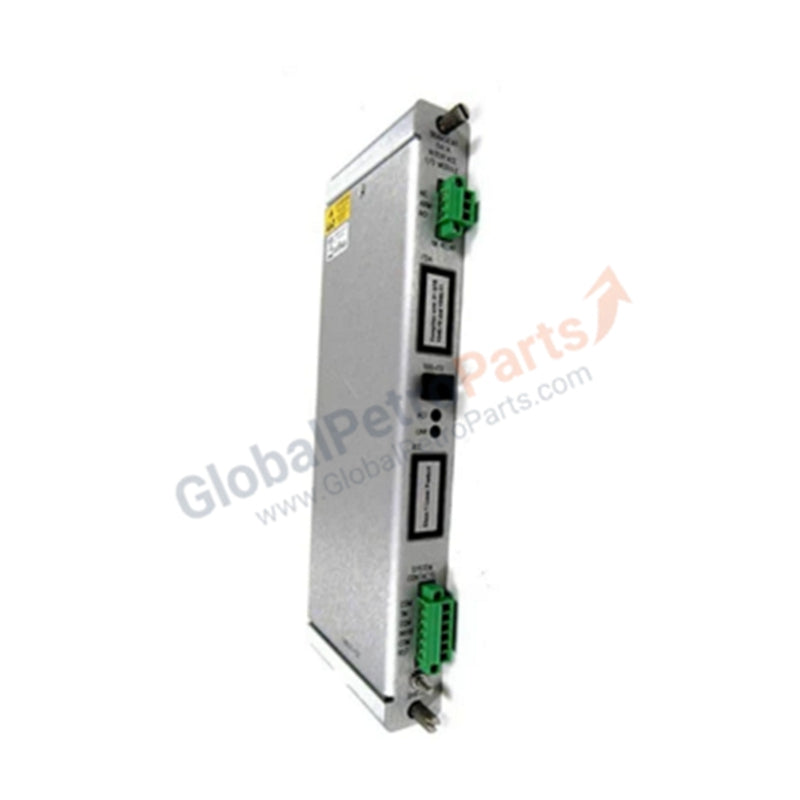

146031-02 3500/22M | Bently Nevada | Fiber Optic Transient Data Module

Overview
The 3500/22M 146031-02 Transient Data Interface Module from Bently Nevada provides a high-speed interface between the 3500 monitoring system and compatible software platforms, including System 1 Condition Monitoring and 3500 System Configuration software. This module combines the functionality of a 3500/20 Rack Interface Module (RIM) with advanced data collection capabilities similar to a communication processor like TDXnet. It is optimized for seismic monitoring and transient waveform data acquisition.

Technical Specifications

• Part Number: 146031-02

• Manufacturer: Bently Nevada

• Series: 3500

• Input Signal Range: –10 V DC to +10 V DC

• Power Consumption: 10.5 W

• Front Panel Port: USB-B for local configuration

• Ethernet Interface: 100Base-FX Fiber-Optic for high-speed data transfer

• Operating Temperature: –30 °C to +65 °C

• Dimensions: 241.3 mm × 24.4 mm × 241.8 mm

• Weight: 0.82 kg (1.8 lb)

• Availability: In Stock

• Country of Origin: United States

Features

• High-resolution transient waveform capture for detailed analysis

• Seamless integration with M-series 3500 monitors

• Combines RIM interface and communication processor functionality in a single module

• Fiber-optic connectivity for long-distance, reliable network transmission

• Compact form factor fits standard 3500 rack architecture

Applications
Ideal for vibration and seismic monitoring in industrial rotating equipment, enabling precise condition monitoring and predictive maintenance.

FAQ
Q: Can this module be integrated with System 1 software?
A: Yes, 146031-02 is fully compatible with System 1 for condition monitoring and diagnostics.

Q: What is the maximum distance for fiber-optic communication?
A: Supports up to 2000 meters with 100Base-FX fiber-optic connections.
