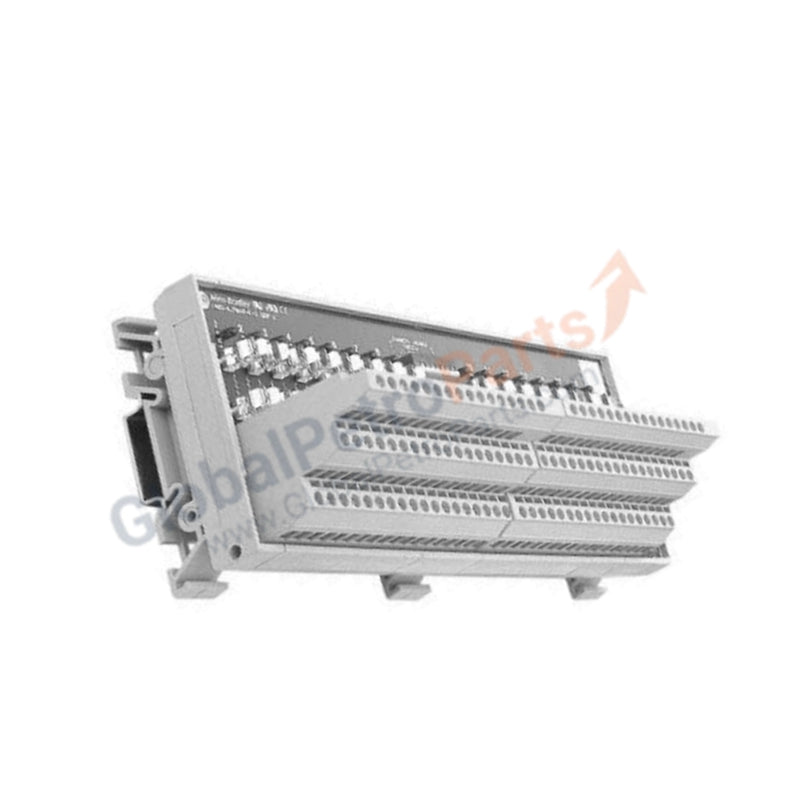

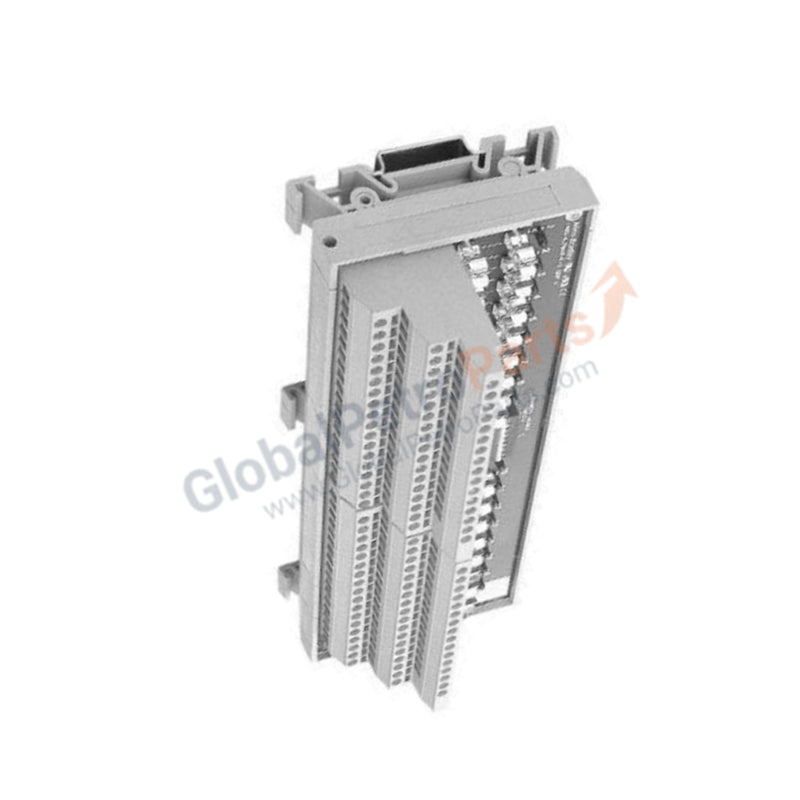

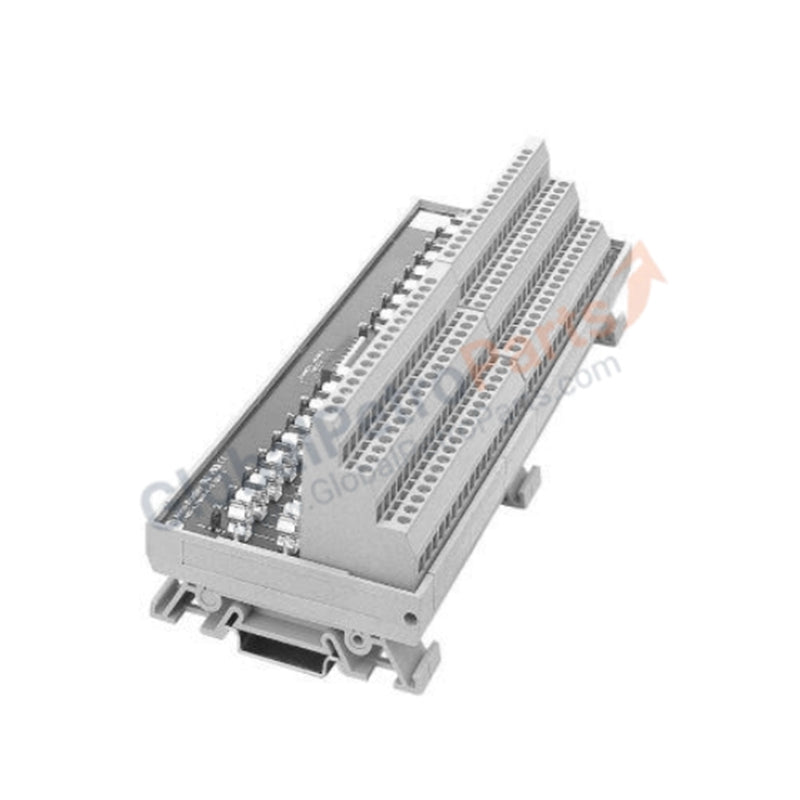

1492-AIFM16-F-3 | Allen Bradley | Analog Input Fuse Module

Product Description

The Allen Bradley 1492-AIFM16-F-3 is an analog input fuse module designed for ControlLogix SIL2 safety shutdown applications. It provides reliable termination and protection for analog input signals, specifically engineered for use with two 1756-IF16 analog input modules.

Technical Specifications

• Part Number: 1492-TAIFM16-F-3

• Category: PLCs / Machine Control

• Subcategory: PLC Module / Rack

• Termination Type: Termination module for analog input signals

• I/O Points: 16 channels

• Operating Voltage: 24 V DC

• Application: Designed for SIL2 safety shutdown systems with dual 1756-IF16 modules

• Warranty: Factory warranty not applicable; Radwell 2-year warranty included

• Weight: 0.68 lbs (approx. 0.31 kg)

Application Scenarios

• Safety Shutdown Systems: Provides reliable signal termination in SIL2-rated environments

• ControlLogix Integration: Compatible with dual 1756-IF16 analog input modules

• Industrial Automation: Ensures safe and stable analog input protection in PLC racks

FAQ

Q: How many input points does this module support?  A: It supports 16 analog input channels.

Q: What voltage does the module operate at?  A: The module is designed for 24 V DC operation.

Q: Is this module covered under Allen Bradley’s factory warranty?  A: No, but it includes a Radwell 1-year warranty.
