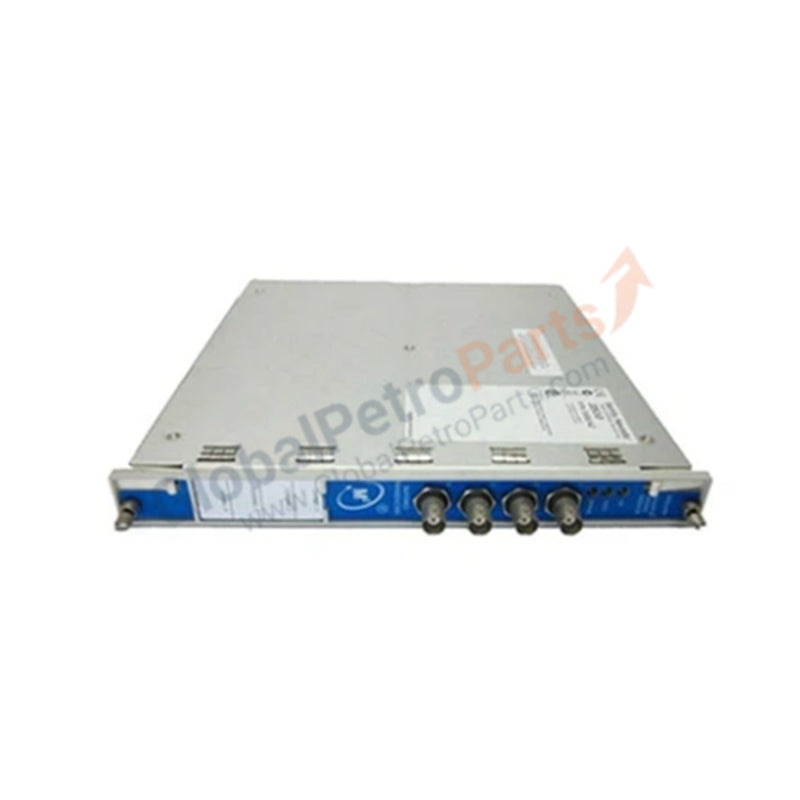

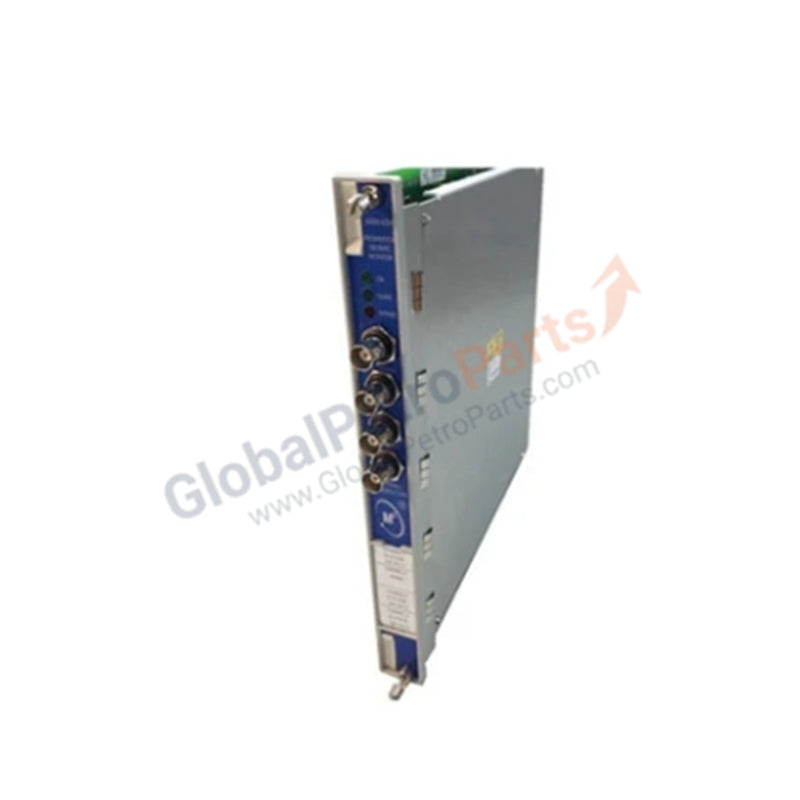

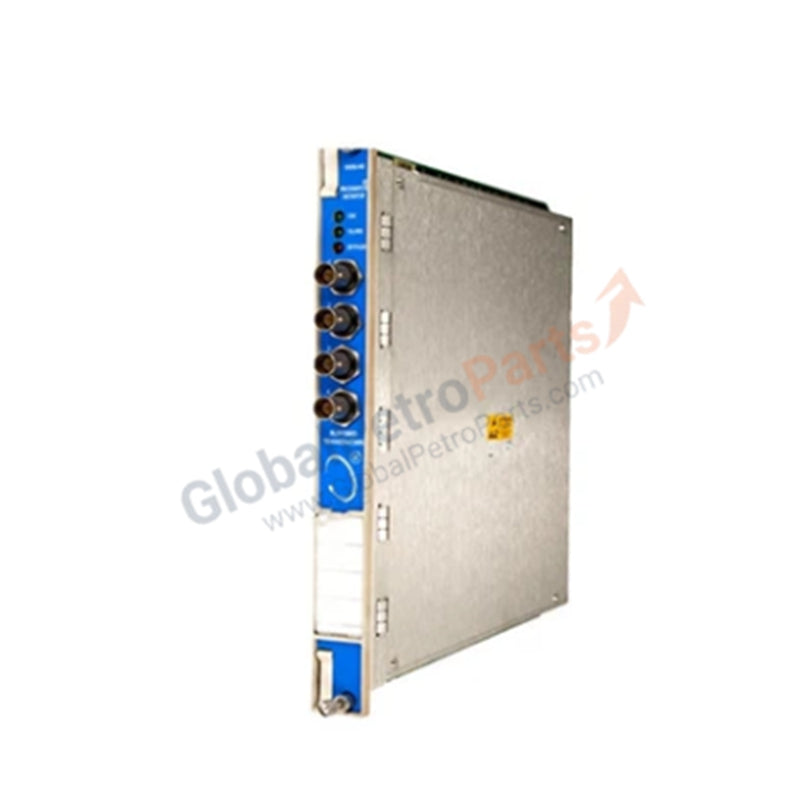

149716-01 3500/40 Bently Nevada TMR Proximitor I/O Module

Overview

The Bently Nevada 3500/40 149716-01 TMR Proximitor I/O Module is engineered for the 3500/40M ENcoRE monitoring system, providing high-speed transient data capture for machinery protection. It is optimized to record rapid events such as impacts, shocks, and vibration anomalies, allowing engineers to analyze and diagnose potential equipment failures effectively.

Key Features

• High-speed transient data capture up to 250 kHz

• Large 4 GB internal storage for extensive waveform recording

• Advanced signal processing including high-pass/low-pass filtering, peak detection, and RMS calculations

• Seamless integration with the 3500/40M ENcoRE system for unified monitoring, analysis, and visualization

• Industrial-grade reliability with NEMA 4 / IP65 environmental protection

• Compact module designed for efficient rack installation

Technical Specifications

• Manufacturer: Bently Nevada

• Model: 3500/40

• Part Number: 149716-01

• Module Type: TMR Proximitor I/O Module

• Data Sampling Rate: Up to 250 kHz

• Data Storage Capacity: 4 GB

• Signal Processing: High-pass and low-pass filtering, peak detection, RMS calculation

• Communication Protocols: Ethernet

• Operating Temperature: –40°C to +70°C (–40°F to +158°F)

• Environmental Protection: NEMA 4, IP65

• Applications: Transient monitoring, impact and vibration analysis, machinery fault diagnostics

Applications

• Detecting high-speed transient events in rotating machinery

• Monitoring shock, impact, and vibration for early fault detection

• Integration into ENcoRE system for comprehensive machinery condition analysis

• Suitable for turbines, compressors, pumps, and generators

FAQ

Q1: What is the maximum data capture rate?
A1: The module supports transient sampling rates up to 250 kHz.

Q2: Can it store large volumes of transient waveform data?
A2: Yes, the module has 4 GB of internal storage for extensive waveform capture.

Q3: Is it suitable for harsh industrial environments?
A3: Yes, the module meets NEMA 4 and IP65 protection standards.
