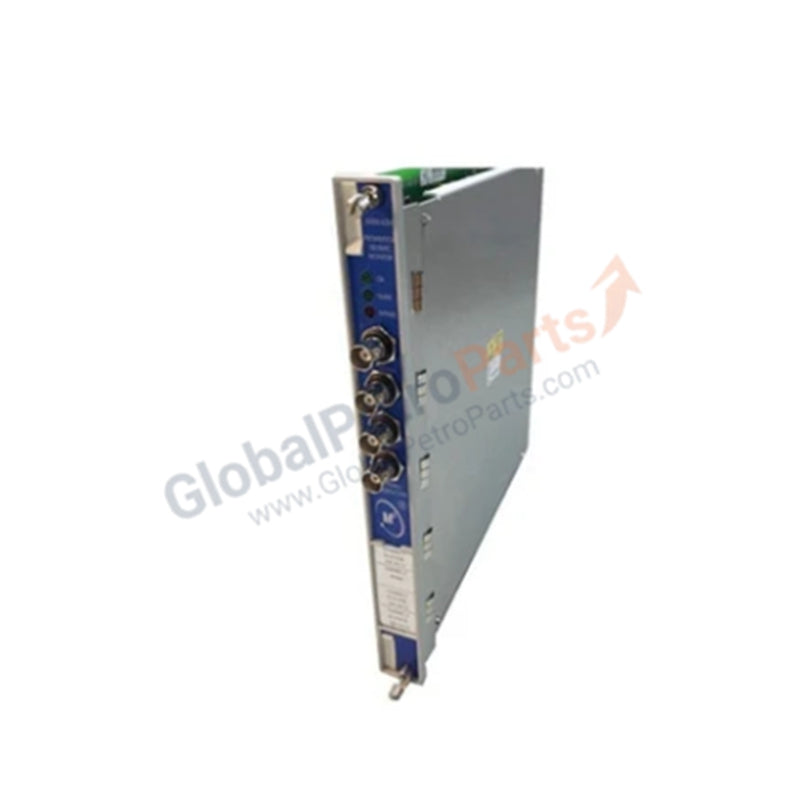

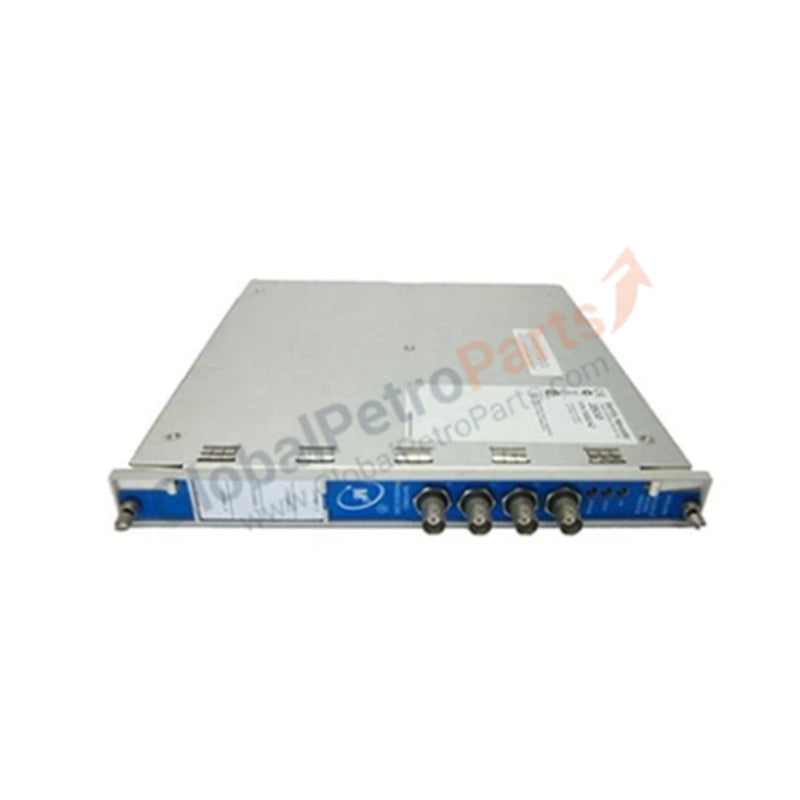

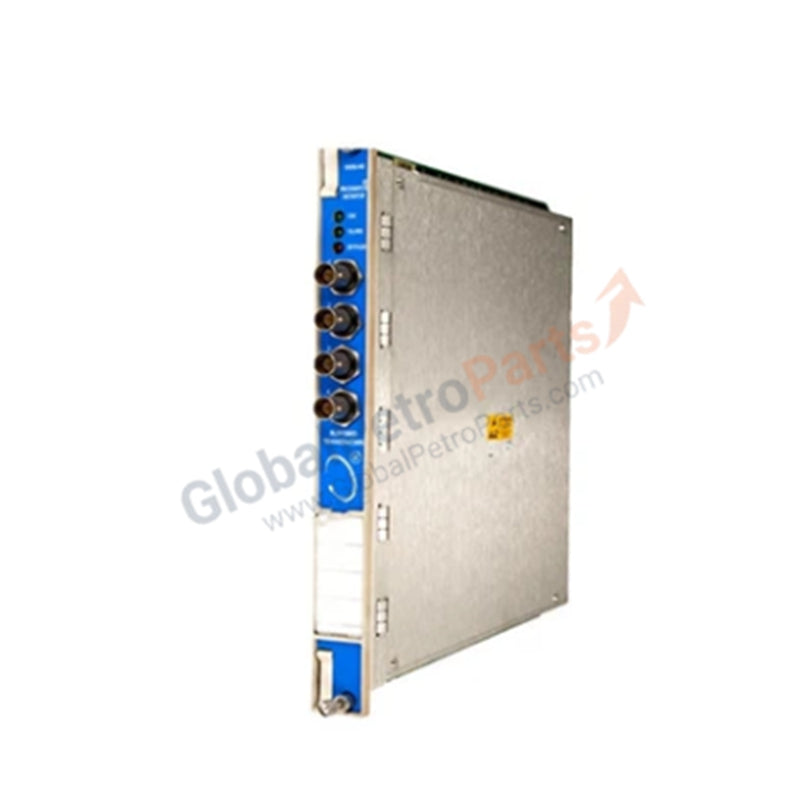

149832-01 I/O Module | Bently Nevada

The Bently Nevada 149832-01 (149832-01) I/O Module operates as a dedicated hardware component for interfacing seismic and displacement transducers with the Trendmaster Pro monitoring system. This module executes signal conditioning for both static and dynamic inputs to provide processed data for machinery health diagnostics.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 149832-01 module is engineered to maintain signal integrity for rotor dynamics analysis. It supports accurate eddy-current probe scaling, allowing for precise measurement of shaft displacement relative to the probe tip. During commissioning, gap voltage validation against -10 VDC targets is required to ensure proper transducer positioning and linear operation. Internal hardware architecture is optimized for effective cross-talk suppression, preventing channel-to-channel signal interference when monitoring multiple vibration vectors on a single machine train.

Frequently Asked Questions

Q: Is this module capable of hot-swapping within the Trendmaster Pro rack?

A: No, the module is not designed for hot-swapping. Ensure the system rack is de-energized before removing or installing the module to prevent electrical damage to the backplane connectors.

Q: What is the primary function of the I/O processing in this module?

A: The module acts as a signal conditioning interface, digitizing analog inputs from proximity probes and accelerometers for transmission to the Trendmaster Pro host system for spectral analysis and trend recording.

Field Installation Guidelines

1. Mounting: Ensure the module is seated securely in the rack slot to guarantee proper physical alignment and electrical contact with the backplane bus.
2. Signal Wiring: Utilize shielded cabling for all sensor inputs. Terminate the cable shields at the designated chassis grounding point to minimize electromagnetic interference.
3. Power Verification: Confirm the supply voltage is regulated at 24 VDC before connecting to the module to avoid damage to internal circuitry.
4. Environment: Install the rack in a location compliant with the operating temperature range of -20 deg C to +65 deg C, ensuring adequate airflow for heat dissipation.
