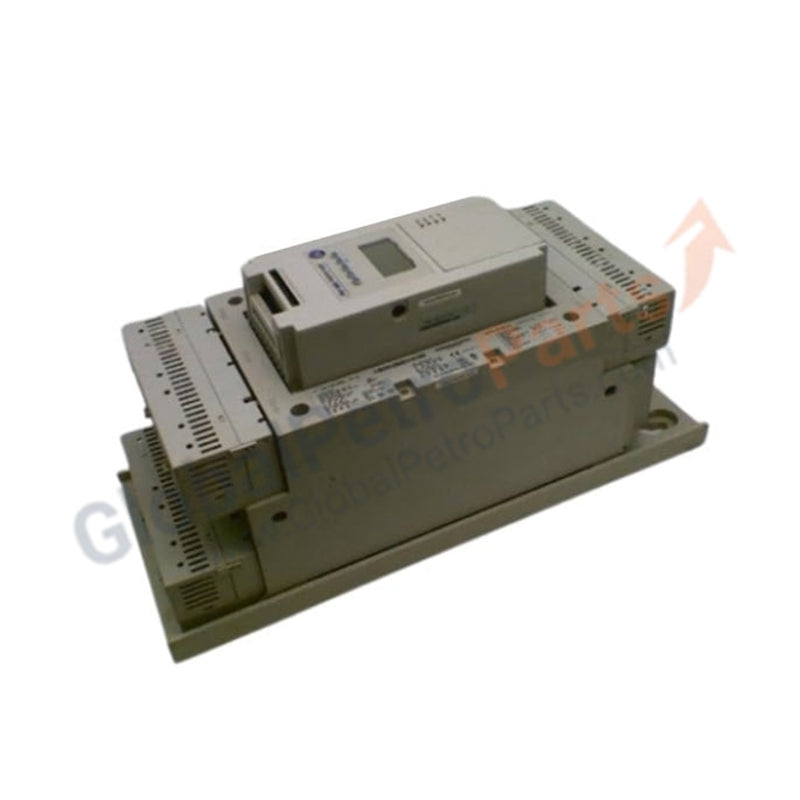

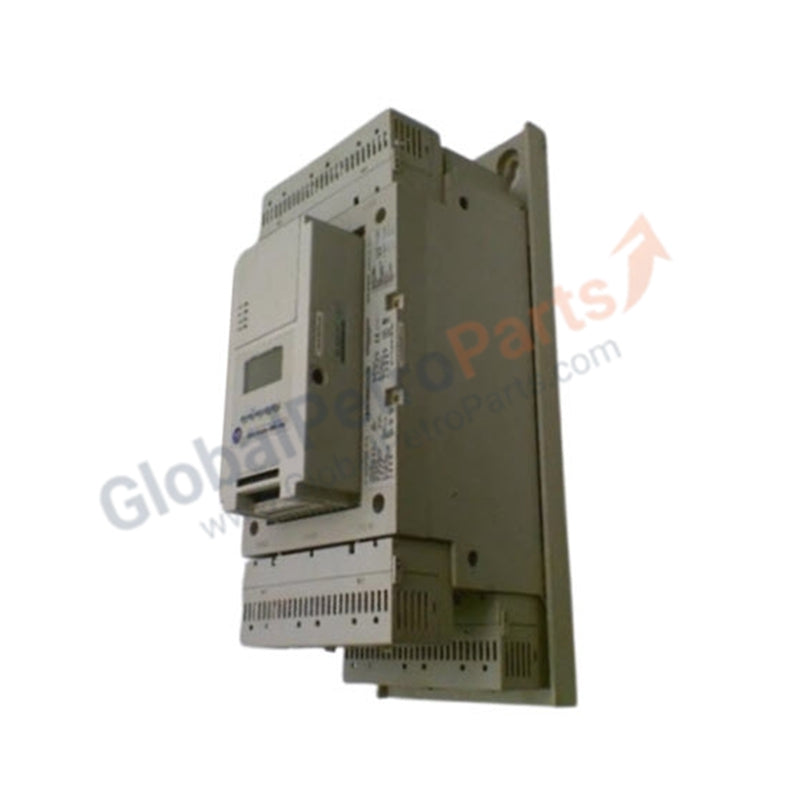

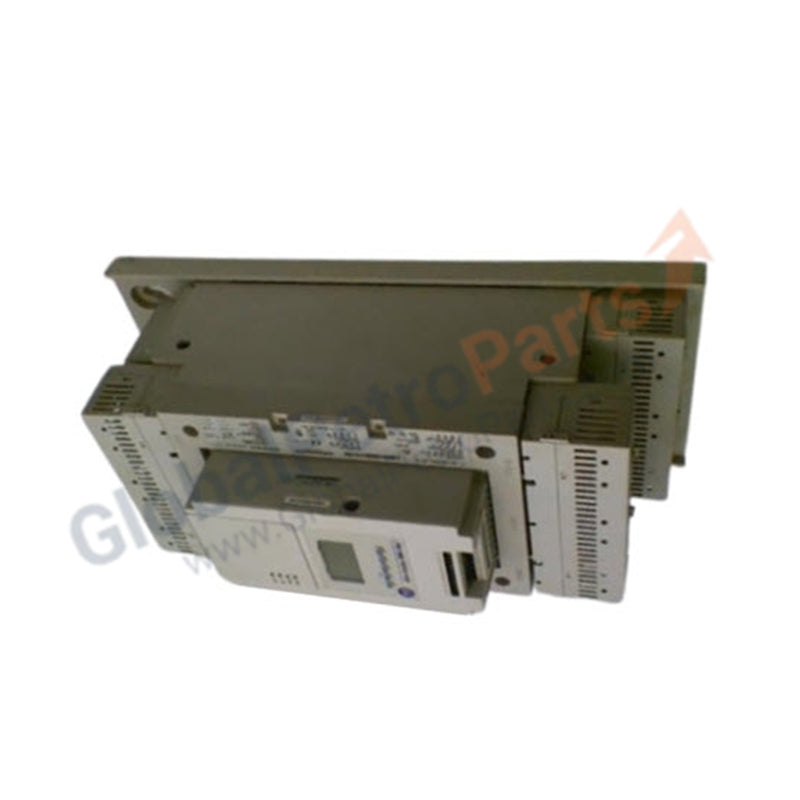

150-F201NBD SMC Flex Solid-State Smart Motor Controller | Allen-Bradley

Product Overview

The 150-F201NBD belongs to the high-performance SMC Flex series, providing advanced solid-state starting and stopping for heavy-duty industrial motors. This Smart Motor Controller manages high-inertia loads and reduces mechanical stress on drive strings by regulating current and torque during the start sequence. We offer this unit in 100% Brand New condition, ensuring maximum operational lifespan and adherence to factory efficiency standards for your motor control centers.

Part Number Breakdown

Technical Specifications

Engineering Advantages

• Advanced Torque Control: The 150-F201NBD utilizes internal power infrastructure to provide linear acceleration. This prevents the current spikes and mechanical "jerks" associated with traditional across-the-line starters, significantly extending the life of belts, gears, and couplings.

• Integrated Bypass Contactor: The controller features an internal bypass. Once the motor reaches full speed, the unit closes the bypass contactor to reduce heat dissipation and increase energy efficiency, allowing for a more compact cabinet design without excessive cooling requirements.

• Open Enclosure Versatility: The "N" type open enclosure design simplifies integration into existing motor control centers (MCC) or custom industrial racks. It facilitates direct airflow and easy access for power cable termination.

• Comprehensive Motor Diagnostics: Built-in electronic motor overload protection and fault diagnostics monitor system health in real-time. The unit detects phase imbalance, undervoltage, and overtemperature, stopping the motor before hardware damage occurs.

FAQs

How do I configure the starting mode for the 150-F201NBD?

Access the built-in LCD display and keypad on the front of the unit. The SMC Flex supports multiple modes including Soft Start, Selectable Kickstart, Current Limit Start, and Full Voltage Start. Navigate the parameters menu to match the torque curve to your specific application (e.g., pumps vs. conveyors).

Does this unit support controlled stopping?

Yes. The 150-F201NBD provides Smart Coasting and Soft Stop features. For high-friction loads or pumping applications, the Soft Stop function prevents "water hammer" by gradually reducing voltage rather than cutting power abruptly.

What are the clearance requirements for mounting an open-type controller?

Maintain at least 150 mm (6 inches) of vertical clearance above and below the unit to ensure proper convective cooling. Since this is an "Open" enclosure, you must install it within a secondary protective enclosure (such as NEMA Type 4 or 12) to shield it from dust and moisture in factory environments.

Is the control voltage separate from the line voltage?

Yes. This module utilizes the "D" control option, requiring a separate 100–240V AC supply to power the internal logic and display. This separation allows you to maintain control power for diagnostics even if the 460V 3-phase line power is disconnected for safety.
