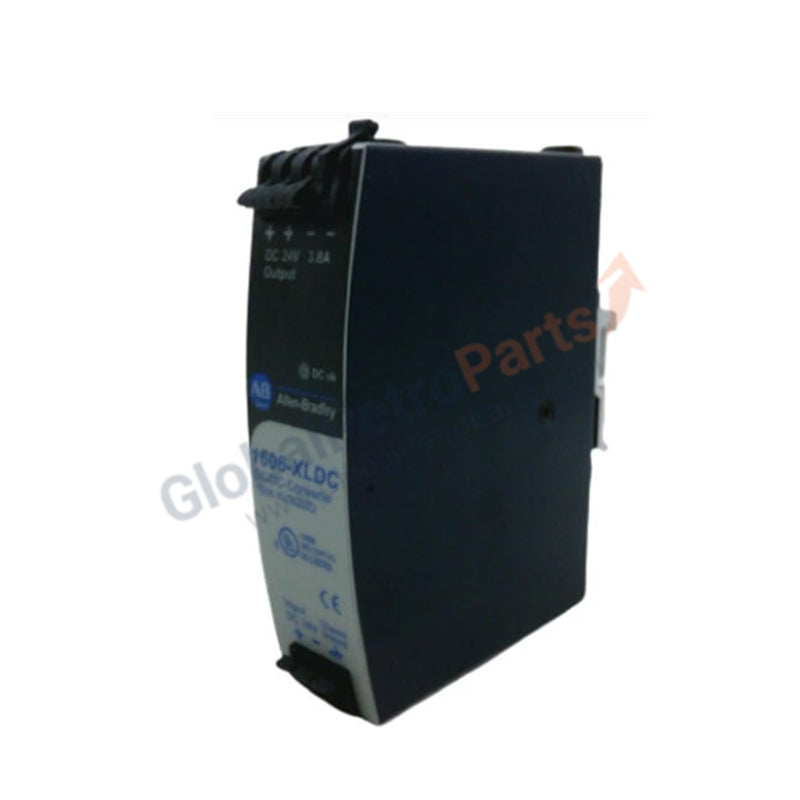

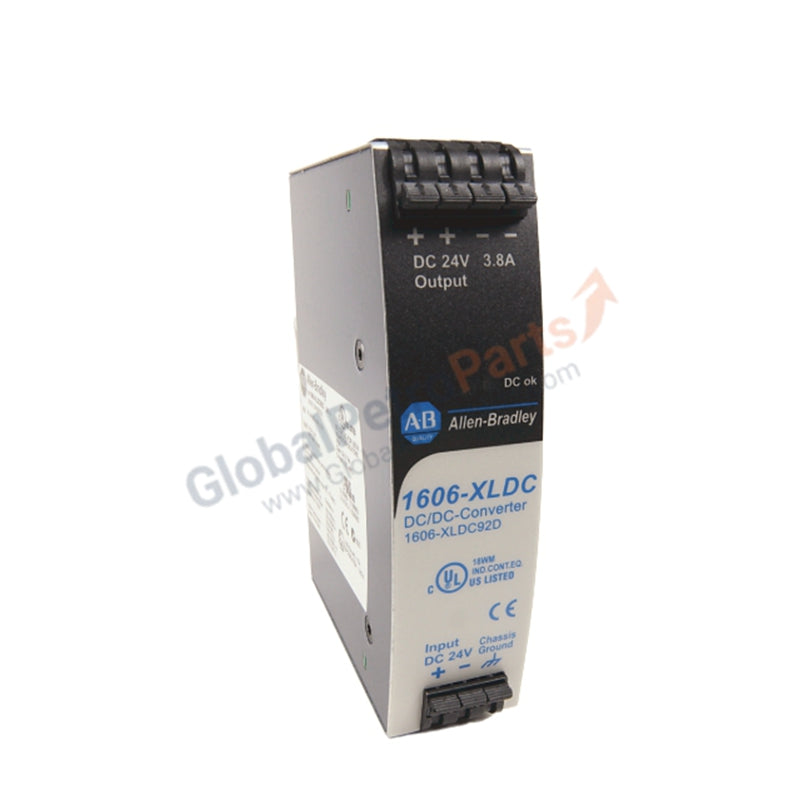

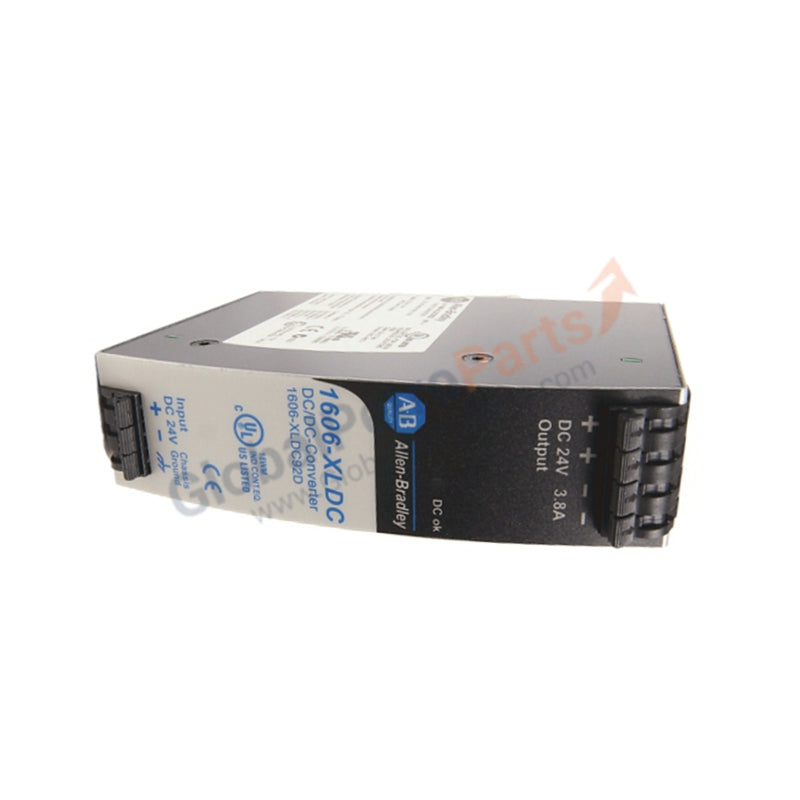

1606-XLDC92D | Allen Bradley 1606 Series Switched Mode DC Power Supply

Product Description

The Allen Bradley 1606-XLDC92D is a compact switched mode DC power supply unit from the 1606 series, engineered for reliable performance in industrial automation systems. It delivers a stable 240 W output with adjustable voltage and features spring-clamp terminals for secure connections. With minimal heat generation and integrated DC-OK signaling, the 1606-XLDC92D ensures efficient power distribution in demanding environments.

Technical Specifications

• Manufacturer Allen Bradley

• Product Line 1606 Series Switched Mode Power Supplies

• Product Type DC Power Supply Unit

• Part Number 1606-XLDC92D

• Weight 3.00 lbs (1.36 kg)

• Input Voltage Range 22.5–30 V DC

• Nominal Output Voltage Adjustable DC output

• Output Power 240 W

• Output Current 10 A

• Terminals Spring-clamp type

• Signal Indicator DC-OK output signal

• Design Compact, open-style enclosure

• Heat Generation Minimal for efficient operation

Application Scenarios

• Industrial automation systems requiring compact DC power supplies

• Distributed control systems with adjustable voltage requirements

• Machine-level applications needing reliable 240 W output

FAQ

Q: What is the maximum output current of the 1606-XLDC92D?  A: 10 A.

Q: Does the unit provide a status signal?  A: Yes, it includes a DC-OK signal output.

Q: What type of terminals are used?  A: Spring-clamp terminals for secure and easy wiring.

Comparable Models

• 1606-XLDC92D: 240 W DC power supply (this model)

• 1606-XLP50E: Compact 50 W DC power supply

• 1606-XLDNET4: Power supply with DeviceNet integration
