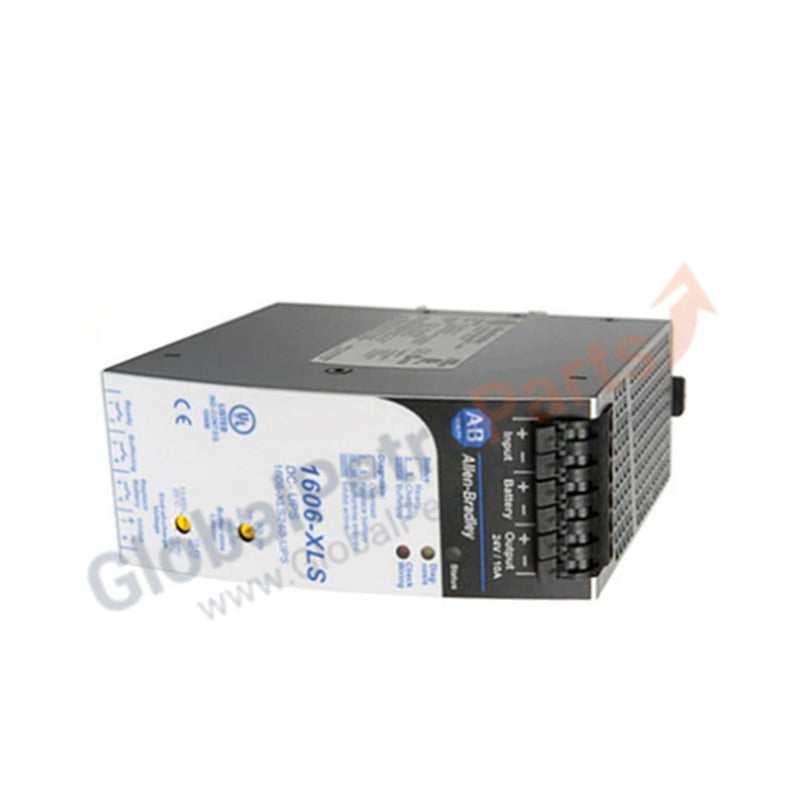

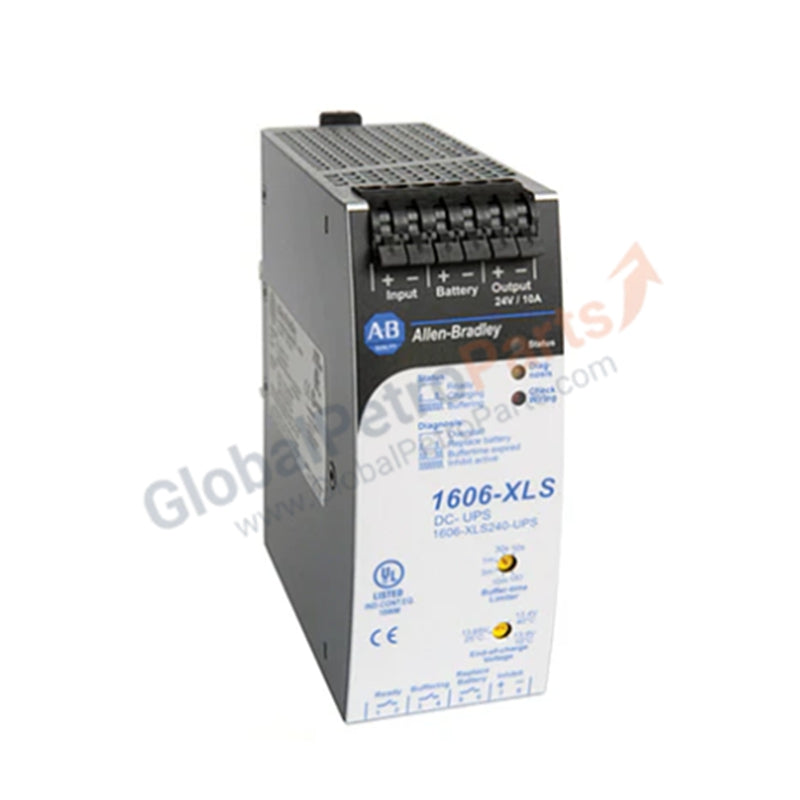

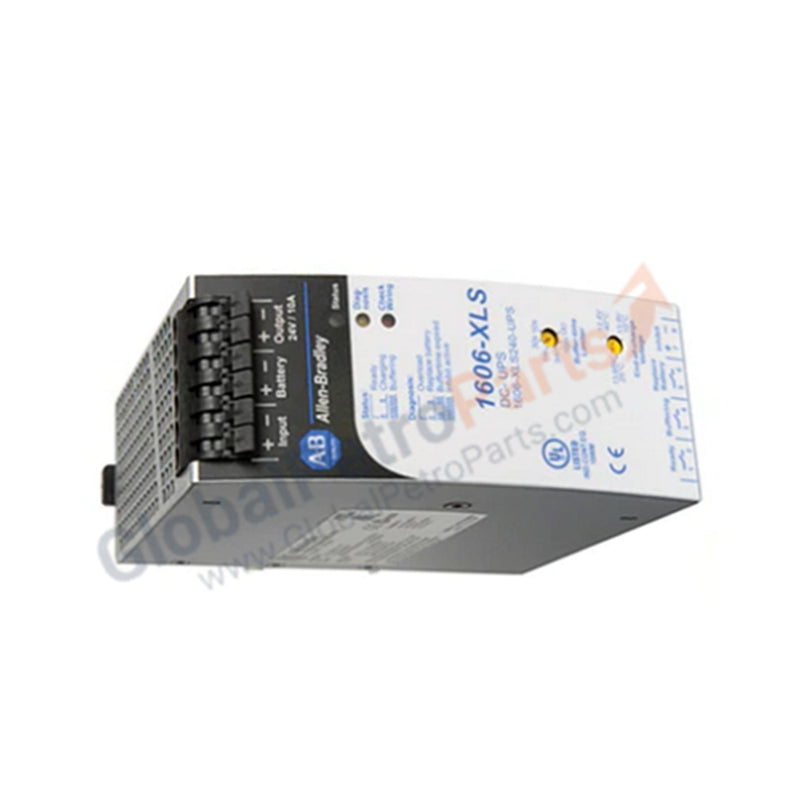

1606-XLS240-UPS 1606 XLS Uninterruptible Power Supply Module | Allen-Bradley

Product Overview

The Allen-Bradley 1606-XLS240-UPS provides essential power redundancy for 24V DC control circuits. This module interfaces between a primary power supply and an external battery to bridge voltage gaps during utility failures. It maintains a constant 10A output, ensuring that PLCs, HMIs, and critical sensors remain operational during power transitions. We supply this unit as 100% Brand New and Original, serving as a critical component for systems requiring high availability and zero-downtime performance.

Technical Specifications

Engineering Advantages

• Seamless Battery Management: The 1606-XLS240-UPS monitors the health of external battery packs and manages the charging cycle. This prevents overcharging and extends the overall service life of the lead-acid cells, reducing long-term maintenance costs.

• Hazardous Location Compliance: With Class I Div 2 certification, this UPS module operates safely in environments where flammable gases or vapors may exist. This rating makes it ideal for oil and gas, chemical processing, and petrochemical applications.

• SEMI F47 Voltage Sag Immunity: The module meets SEMI F47 standards, allowing equipment to withstand voltage sags common in semiconductor manufacturing. It compensates for brief power dips, preventing costly tool crashes and wafer loss.

• Space-Saving DIN Rail Profile: The narrow 60mm width saves significant horizontal space on the DIN rail. This compact footprint allows engineers to integrate power redundancy into crowded control cabinets without requiring expensive enclosure expansions.

• Bridge Capacity Scaling: Because the module utilizes an external battery, engineers can scale the buffer time to meet specific application needs. Simply increase the Amp-hour (Ah) rating of the connected battery to achieve longer backup durations for critical shutdowns.

FAQs

• What type of batteries should I use with the 1606-XLS240-UPS?

  The module supports standard 24V lead-acid batteries or equivalent deep-cycle industrial batteries. Always ensure the battery voltage matches the 24V input specification to prevent hardware damage.

• Does the module include internal batteries?

  No. The 1606-XLS240-UPS requires an external battery. This design allows you to customize the buffer time and facilitates easier battery replacement without removing the UPS module from the DIN rail.

• Can I install this module in a cabinet with high vibration?

  Yes. The rugged DIN rail mounting mechanism and industrial-grade internals comply with standard vibration specs for factory environments. For extreme vibration, ensure you use high-quality DIN rail end anchors to prevent lateral movement.

• How does the module signal a battery fault?

  The 1606-XLS240-UPS features diagnostic indicators that monitor the battery connection and charging status. You can integrate these signals into your PLC logic to trigger maintenance alerts before a power failure occurs.
