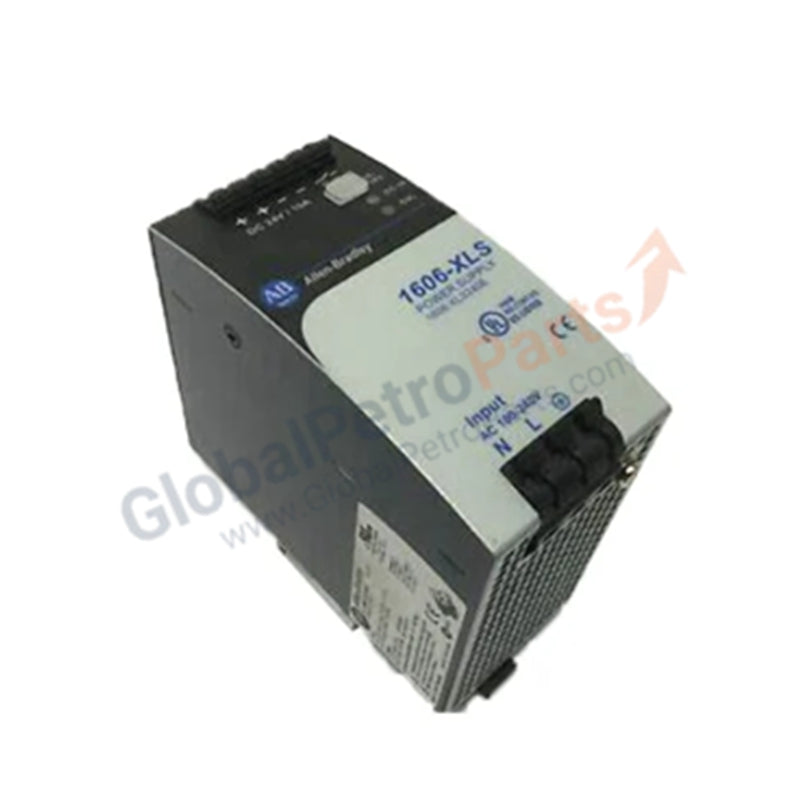

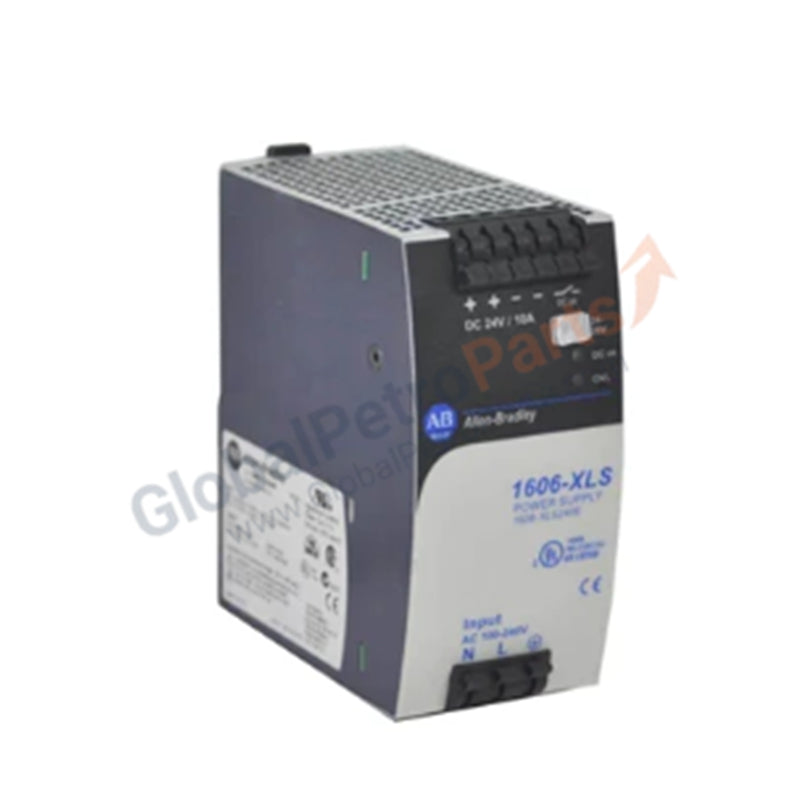

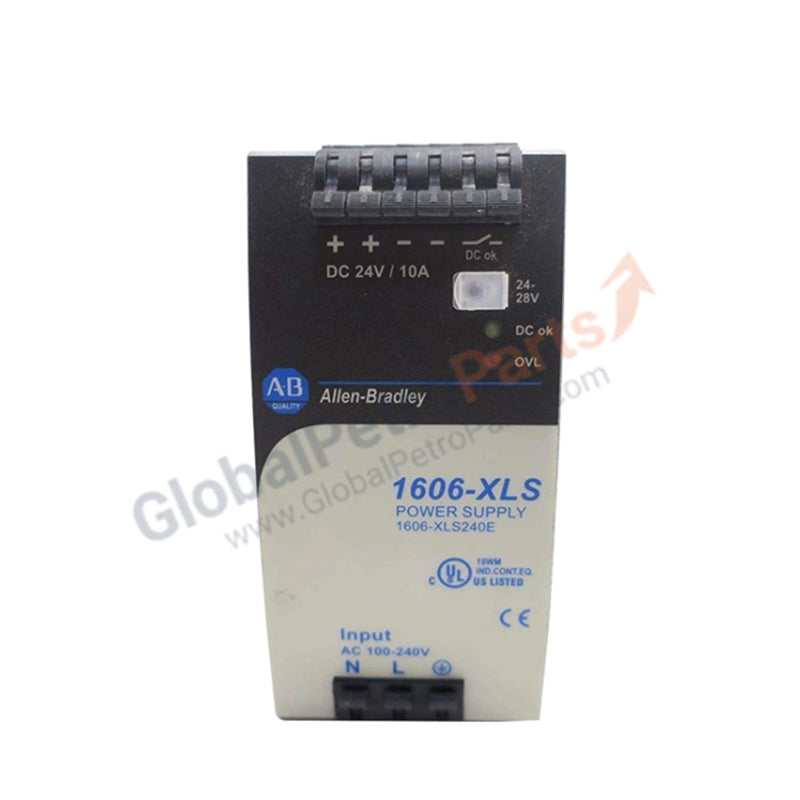

1606-XLSDNET4 | Allen Bradley | Performance Series DeviceNet Power Supply

Product Overview

The Allen Bradley 1606-XLSDNET4 serves as a high-performance switched-mode power supply specifically engineered for DeviceNet network requirements. This module converts wide-range AC or DC input voltages into a stabilized 24VDC output, providing clean power to scanners, nodes, and field devices. We supply this unit as 100% Brand New and original, ensuring your automation architecture maintains peak signal integrity and uptime.

Technical Specifications

The 1606-XLSDNET4 features a compact, rugged design optimized for industrial control panels:

Engineering Advantages

• Universal Input Flexibility: The module accepts a vast input range (85-264VAC or 88-375VDC). This versatility eliminates the need for separate regional stock and handles severe voltage drops or fluctuations in unstable power grids.

• DeviceNet Optimized Performance: Unlike standard power supplies, this performance module meets the strict ripple and noise requirements of DeviceNet networks. It prevents communication errors and data packet loss by delivering ultra-stable DC current.

• Efficient Heat Dissipation: The switched-mode design minimizes energy loss. The slim housing maximizes airflow within crowded electrical cabinets, allowing for high-density DIN-rail mounting without excessive thermal de-rating.

• Rapid Installation: The integrated DIN-rail bracket snaps securely onto standard rails, reducing labor time. The front-accessible terminals simplify wiring and facilitate quick voltage testing during commissioning.

FAQs

Q: Can I use the 1606-XLSDNET4 to replace an older 1606-XLDNET4 unit?

A: Yes. The 1606-XLSDNET4 serves as the direct replacement for the discontinued 1606-XLDNET4 model. It maintains the necessary form factor and electrical characteristics required for a seamless swap.

Q: Does this power supply support DC input as well as AC?

A: Yes. This module functions with both single-phase AC (85-264V) and high-voltage DC (88-375V) inputs, making it suitable for specialized DC battery-backed systems or standard plant power.

Q: How does this module handle DeviceNet network noise?

A: This Performance Series module includes advanced internal filtering. It suppresses electromagnetic interference (EMI) and limits output ripple to ensure that sensitive network transceivers receive clean power, preventing "Bus-Off" errors.

Q: Is the output voltage adjustable for long cable runs?

A: While factory-set for DeviceNet standards, the module maintains a tight 24VDC output. For exceptionally long network trunks, ensure your cable gauge minimizes voltage drop, as the 1606-XLSDNET4 focuses on providing regulated, high-stability power.
