16925-30 Interconnect Cable Bently Nevada

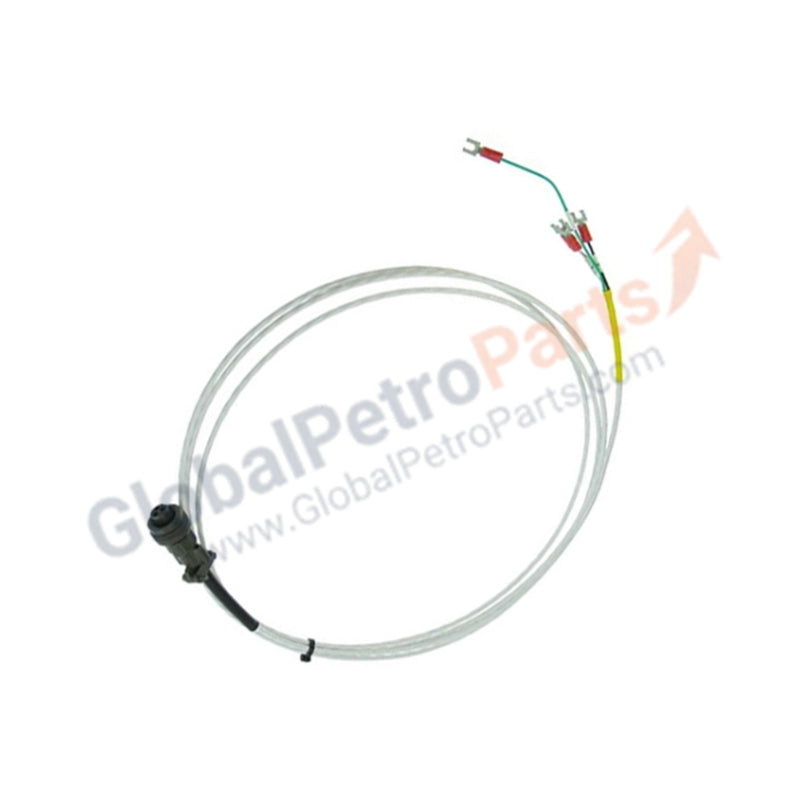

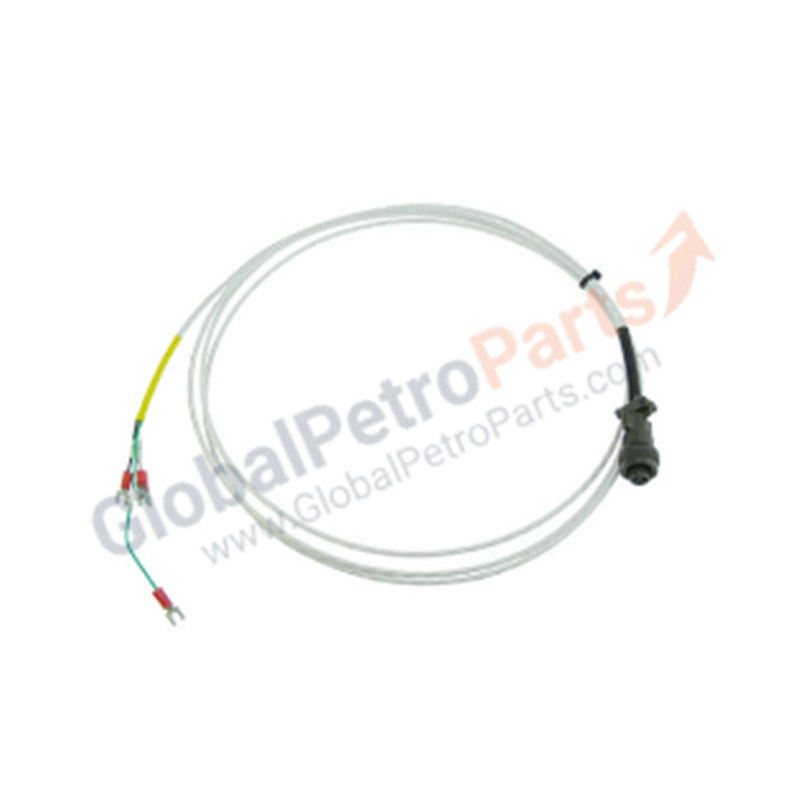

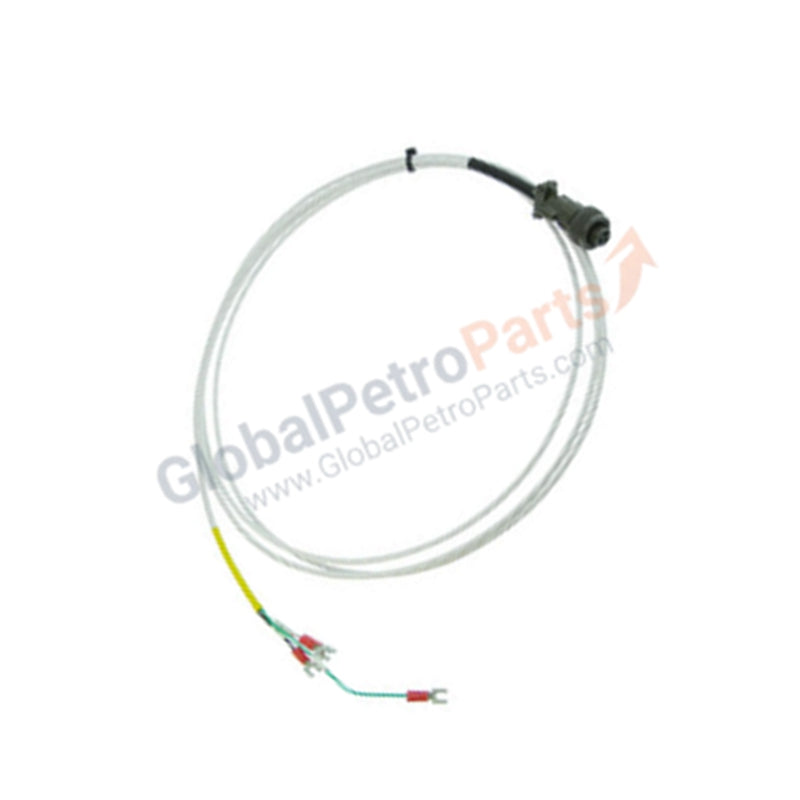

Configured for signal transmission in mechanical monitoring systems, the Bently Nevada 16925-30 (16925 Interconnect Cable) provides direct physical execution of sensor signal routing between transducers and monitoring interfaces.

Suffix Breakdown & Model Matrix

The model number 16925-30 indicates the series designation 16925 with a defined cable length option. The suffix -30 denotes a total physical cable length of 30 ft.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 16925-30 cable is engineered to maintain signal integrity for proximity probe systems. When installing these cables, strict adherence to eddy-current probe scaling protocols is required to account for the additional lead length. Verification of gap voltage validation (-10 VDC targets) at the monitoring interface is necessary after installation to ensure the total system impedance matches the required specifications for accurate rotor dynamics interpretation. Furthermore, proper cable routing must be maintained to provide effective cross-talk suppression, preventing electromagnetic interference from contaminating raw sensor waveforms before they reach the monitor input.

Frequently Asked Questions

Q: Does the 30 ft length introduce significant signal attenuation?

A: The cable is designed for specific system impedance requirements. Extending or shortening the cable beyond factory-specified lengths will alter the loop impedance and may require recalibration of the probe system to maintain accurate gap voltage readings.

Q: Are there specific installation requirements to minimize electrical noise?

A: Yes, maintain physical separation between the interconnect cable and high-voltage power conduits. Utilize dedicated cable trays and ensure that the outer jacket remains intact to preserve the electromagnetic shielding effectiveness.

Field Installation Guidelines

1. Inspection: Verify that the cable connectors are free of contaminants and that the pins are not bent or oxidized before mating.
2. Routing: Lay the cable in designated instrument conduits or trays. Avoid sharp bends that exceed the minimum bend radius of the cable, as this can degrade internal shielding.
3. Connection: Ensure the threaded or quick-disconnect connectors are fully seated to provide a low-resistance path for the signal. Do not over-tighten, as this may damage the internal dielectric or connector shell.
4. Validation: Post-installation, perform a static gap voltage check. Verify that the transducer output voltage aligns with expected proximity values at the interface module.
