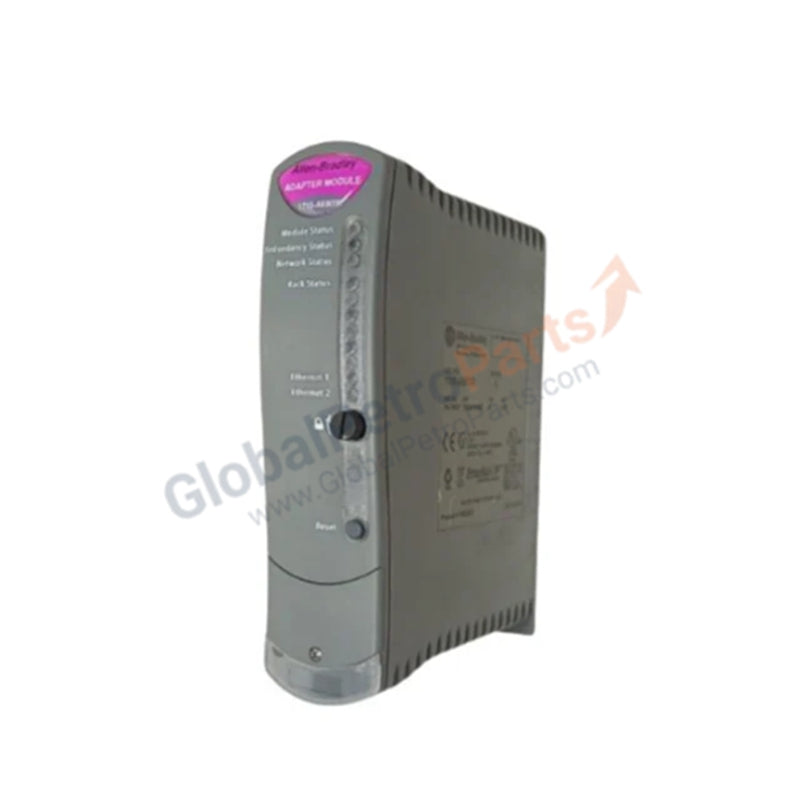

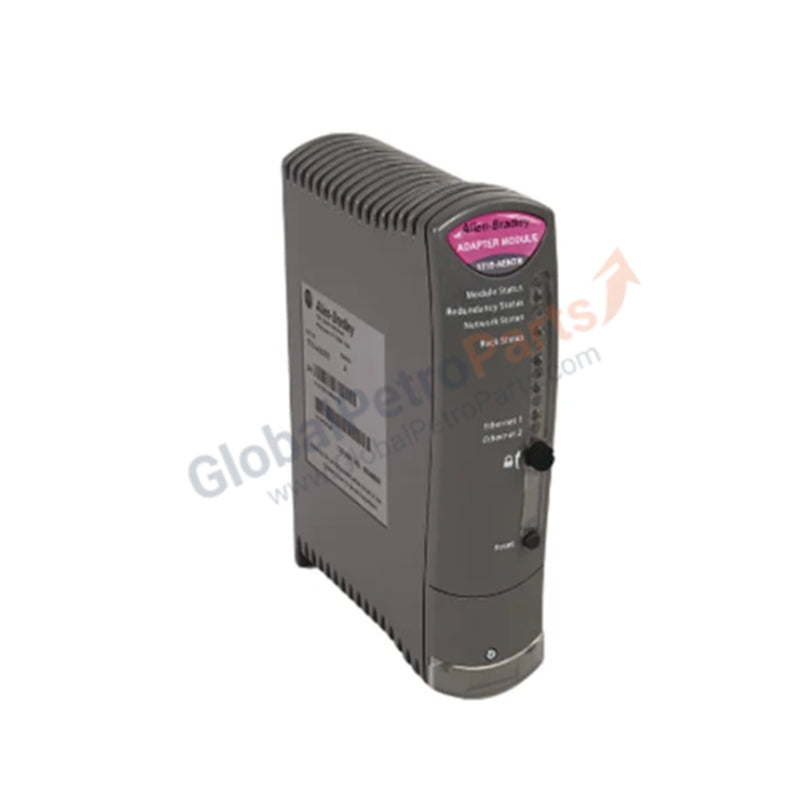

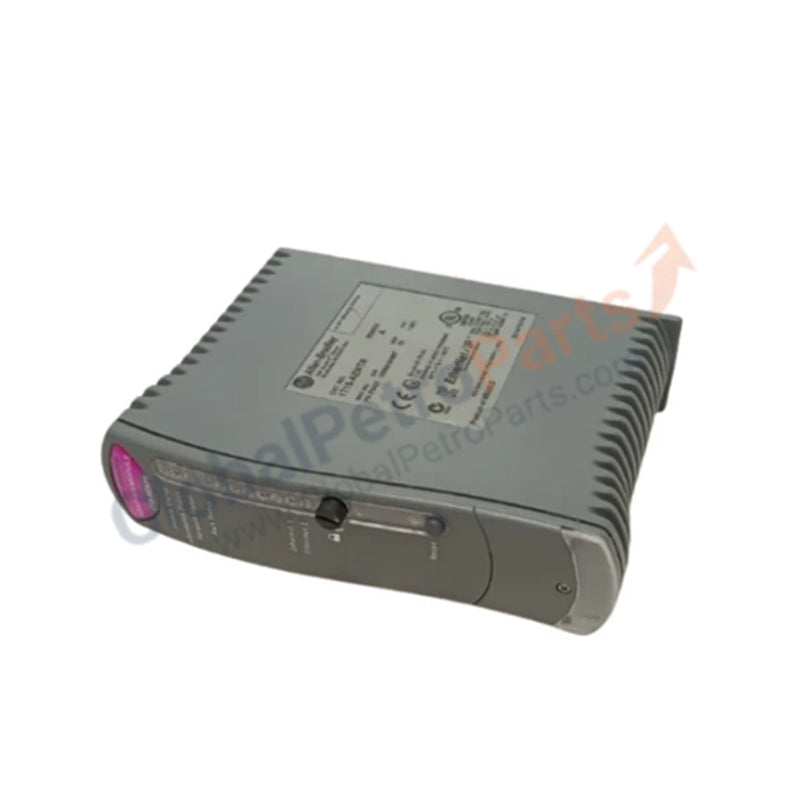

1715-AENTR | Allen-Bradley | Ethernet Adapter Module for Distributed I/O Systems

Product Description

Overview The Allen-Bradley 1715-AENTR Ethernet Adapter Module is designed to provide reliable communication connectivity for distributed I/O systems. It ensures stable data transfer across Ethernet networks while supporting industrial-grade wiring and protective features. Compact and lightweight, this module integrates seamlessly into control architectures requiring Ethernet-based communication.

Technical Specifications

• Manufacturer Allen-Bradley

• Product Line Distributed I/O

• Model / Part Number 1715-AENTR

• Product Type Ethernet Adapter Module

• Wiring Category Category 2 – power ports, Category 2 – communication ports

• Operating Voltage Range 18…32 VDC

• Backplane Current 380 mA @ 18…32 VDC

• Fuse Type 4 A, 125 V, Type T

• Weight 0.42 kg

• Mounting Standard module installation within distributed I/O systems

• Enclosure Open frame design

Applications

• Ethernet-based communication for distributed I/O in process and factory automation

• Systems requiring reliable backplane current distribution and protective fuse integration

• Lightweight module installations where compact design is critical

FAQ

• Q: What is the primary function of the 1715-AENTR module? A: It serves as an Ethernet adapter, enabling communication between distributed I/O modules and the control system.

• Q: What type of fuse is integrated? A: A 4 A, 125 V Type T fuse is used for circuit protection.

• Q: Is the module suitable for industrial Ethernet applications? A: Yes, it is specifically designed for Ethernet-based communication in industrial automation environments.
