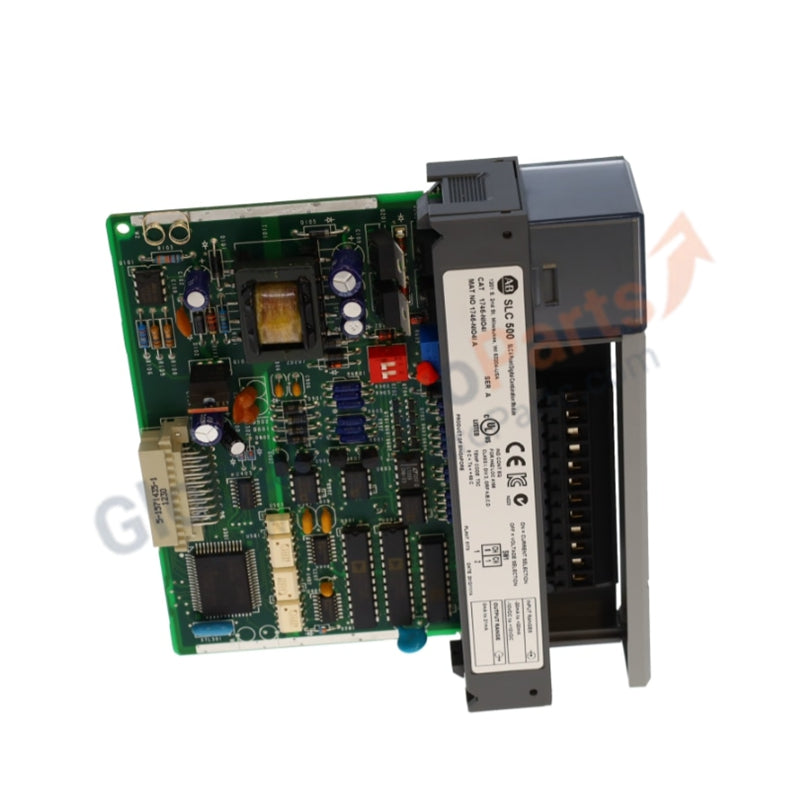

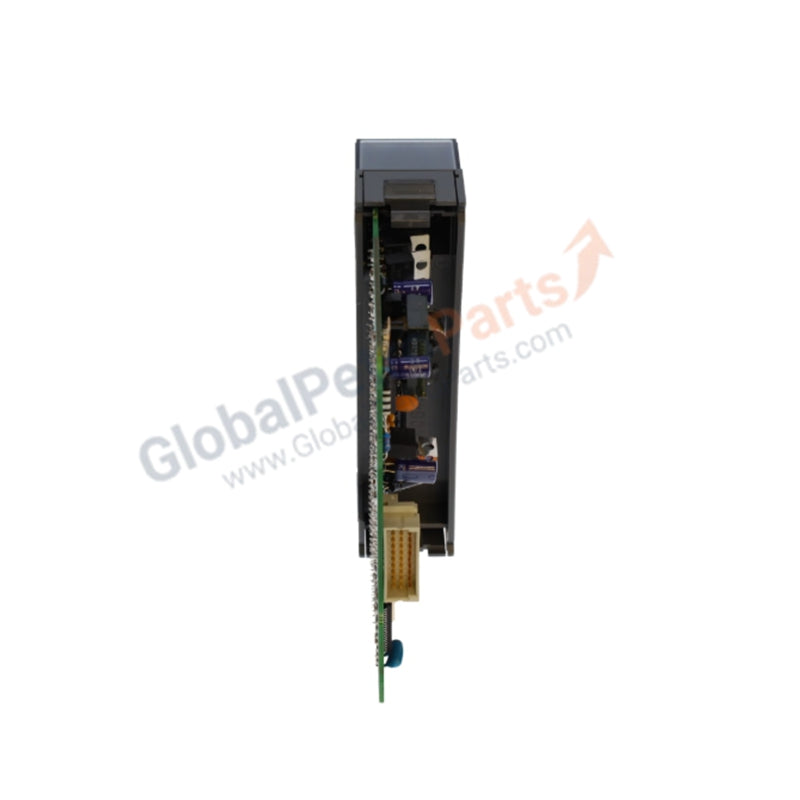

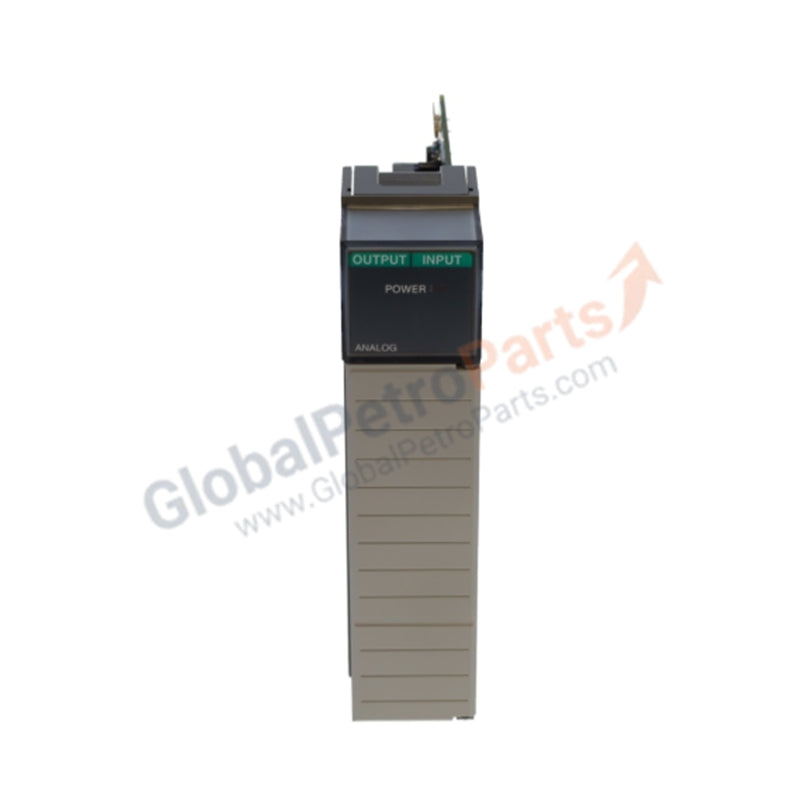

1746-NIO4I | Allen Bradley | SLC 500 Analog Combination I/O Module

Product Overview

The Allen Bradley 1746-NIO4I serves as a high-precision analog combination module for the SLC 500 PLC platform. This module integrates two input channels and two output channels into a single-slot form factor, providing a cost-effective solution for small-scale PID loops and process monitoring. We supply this unit in 100% Brand New, original condition, ensuring that your legacy systems maintain peak accuracy and operational continuity without the risks of used components.

Technical Specifications

The 1746-NIO4I delivers professional-grade signal conversion and high-speed processing for industrial variables:

Engineering Advantages

• High-Resolution Signal Accuracy: The 16-bit input resolution allows the module to detect minute changes in process variables. This precision proves vital for applications requiring tight tolerances, such as chemical dosing or temperature regulation.

• Rapid Control Loop Execution: A lightning-fast 512-microsecond update time minimizes latency between signal detection and logic execution. This speed ensures that your SLC 500 system responds almost instantaneously to dynamic process fluctuations.

• Space-Saving Integration: By combining both inputs and outputs on a single card, the 1746-NIO4I frees up valuable chassis slots. This design optimizes cabinet space in compact machine builds where expansion room remains limited.

• Robust Signal Isolation: The module features 500V tested voltage isolation. This barrier protects the PLC backplane from field-side electrical noise and ground loops, preventing processor crashes and data corruption in electrically noisy environments.

FAQs

Q: Does the 1746-NIO4I support current (mA) outputs as well as voltage?

A: No. While the inputs support both voltage (-10 to +10V) and current (-20 to +20 mA), the outputs on the 1746-NIO4I provide voltage signals only (-10 to +10V DC). If your application requires 4-20mA outputs, you must select an alternative module like the 1746-NO4I.

Q: Can I mix voltage and current signals on the input channels?

A: Yes. You configure each input channel independently. This flexibility allows you to monitor a pressure transducer (4-20mA) and a position sensor (0-10V) simultaneously using the same module.

Q: What terminal block does this module require?

A: The 1746-NIO4I uses standard SLC 500 removable terminal blocks. This feature allows you to replace the module hardware without disconnecting individual field wires, significantly reducing maintenance downtime.

Q: Is this a refurbished unit, given that the SLC 500 is an older line?

A: We guarantee this product is 100% Brand New and original. We maintain high-quality, unused factory stock to support engineers who require the reliability of new hardware for their established SLC 500 installations.
