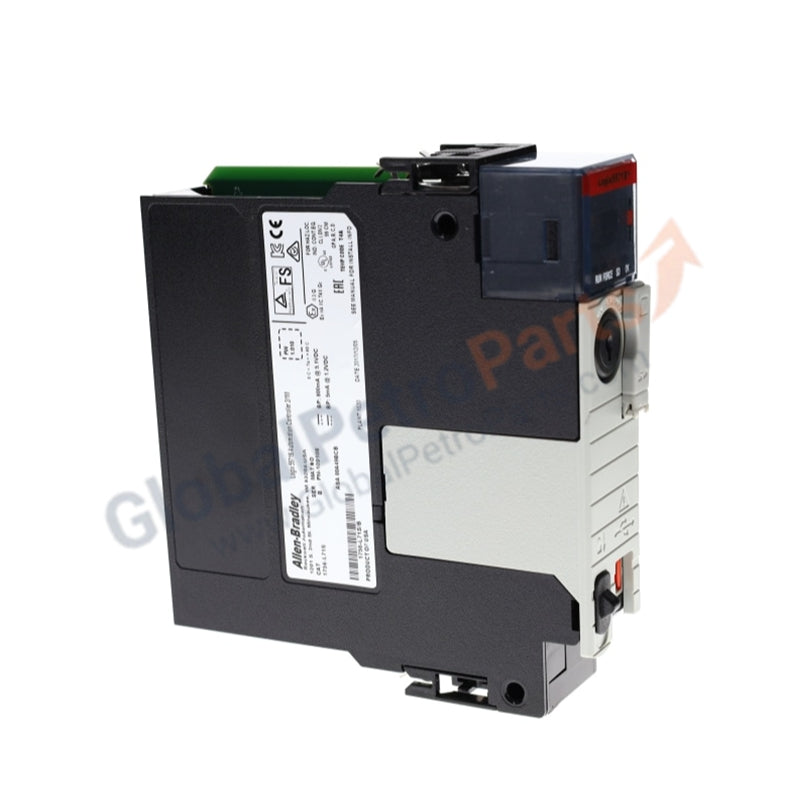

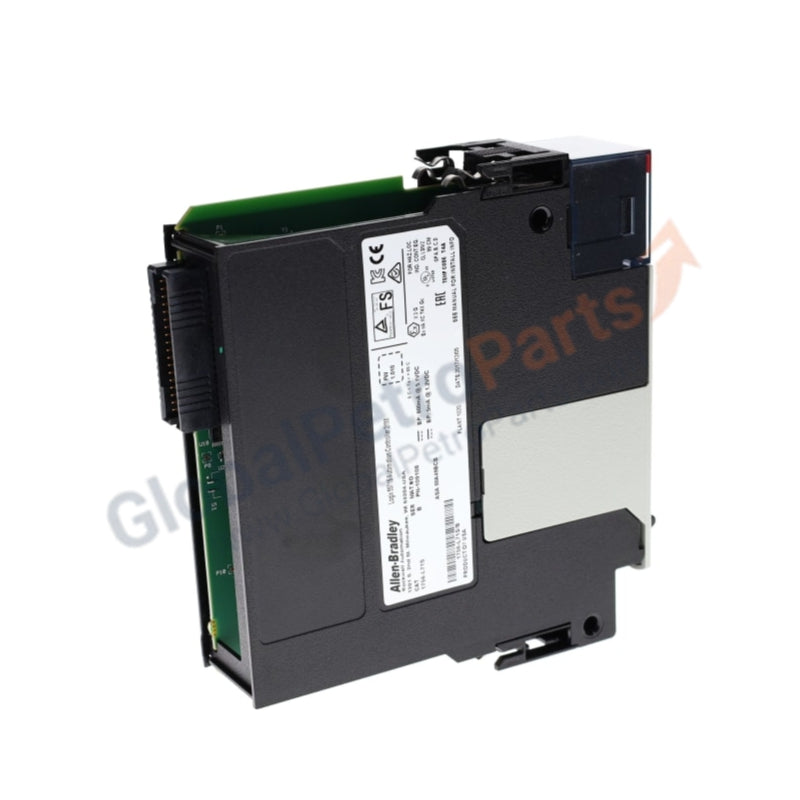

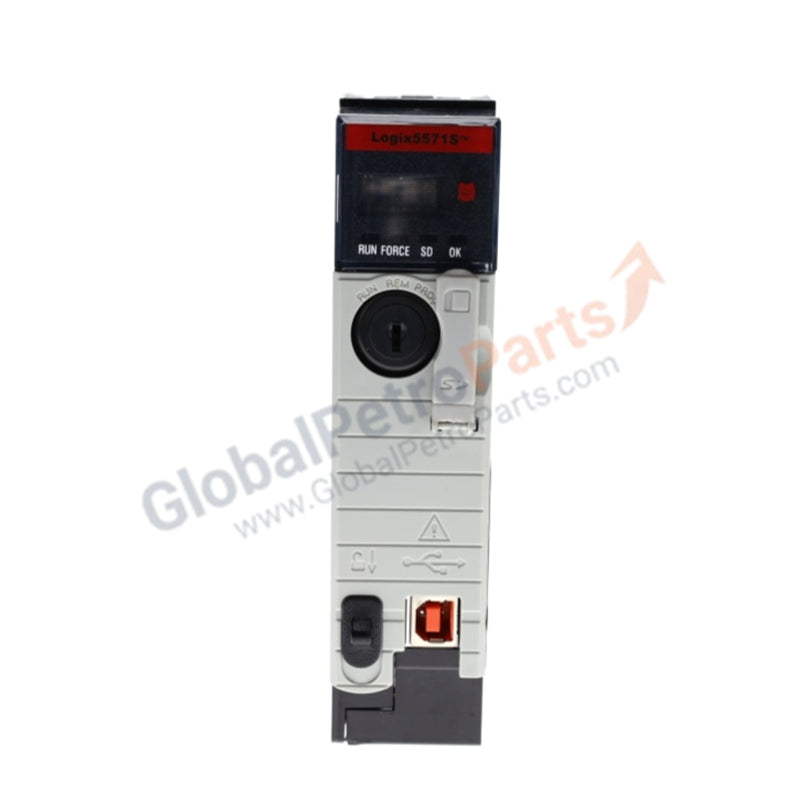

1756-L71S | Allen Bradley | GuardLogix 5570 Safety PAC Controller

Product Overview

The Allen Bradley 1756-L71S functions as a high-performance GuardLogix 5570 controller, providing integrated safety and standard control within a single ControlLogix chassis. This Programmable Automation Controller (PAC) achieves SIL 3 (IEC 61508) and PLe (ISO 13849-1) ratings when paired with a safety partner module. It manages high-speed motion, discrete logic, and safety tasks simultaneously, making it a critical asset for modern manufacturing lines requiring rigorous personnel and equipment protection. We supply this unit as 100% Brand New, ensuring factory-sealed authenticity for your safety-critical infrastructure.

Technical Specifications

Engineering Advantages

• Integrated Safety & Control: The 1756-L71S eliminates the need for separate safety relays or independent safety PLCs. By running safety and standard logic in one processor, you simplify programming, reduce hardware costs, and accelerate troubleshooting through unified diagnostic tools.

• Rapid Safety Response: This controller executes dedicated safety tasks alongside 31 standard tasks. It prioritizes safety logic to ensure immediate shutdown or safe-state transition in the event of an E-stop or light curtain breach, maintaining uncompromising protection for operators.

• Maintenance-Free Data Security: The unit ships with a 1GB non-volatile storage card. This feature eliminates the dependency on batteries for program retention. During power cycles, the controller automatically reloads the program, preventing downtime caused by battery depletion.

• Energy-Efficient Processing: Drawing only 800 mA at 5.1V DC and generating minimal thermal output (8.5 BTU/hr), the module reduces the heat load within the ControlLogix chassis. This efficiency extends the operational life of adjacent I/O modules and communication adapters in high-density cabinets.

FAQs

• Is the 1756-L71S unit brand new or refurbished?

  We sell this product as 100% Brand New original factory stock. It arrives in the original manufacturer’s packaging with all security seals intact, guaranteeing full compliance with industrial safety standards.

• Does this controller require a Safety Partner module?

  Yes. To achieve SIL 3/PLe safety ratings, you must install the 1756-L7SP safety partner module in the slot immediately to the right of the 1756-L71S. The controller cannot perform safety functions in a standalone configuration.

• Which communication protocols does this module support?

  While the 1756-L71S features a built-in USB port for local configuration, it supports EtherNet/IP, ControlNet, and DeviceNet through optional 1756 communication bridge modules. Most modern safety architectures utilize EtherNet/IP for distributed I/O.

• Can I use the USB port for HMI communication?

  No. The integrated USB 2.0 port serves only for initial configuration, programming, and firmware updates. You must use a dedicated network adapter (like the 1756-EN2TR) for permanent HMI and SCADA connectivity.
