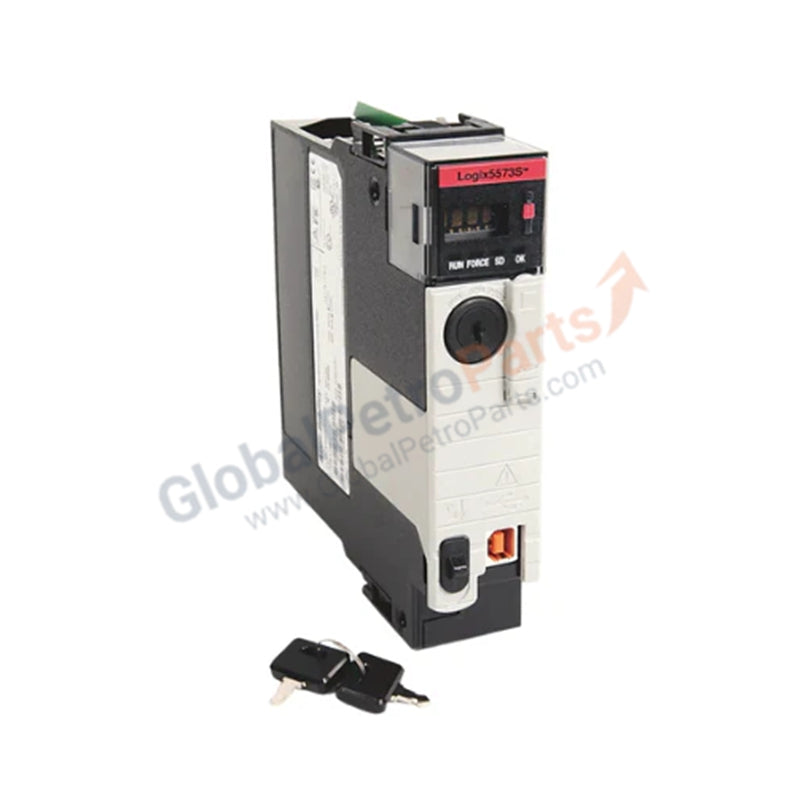

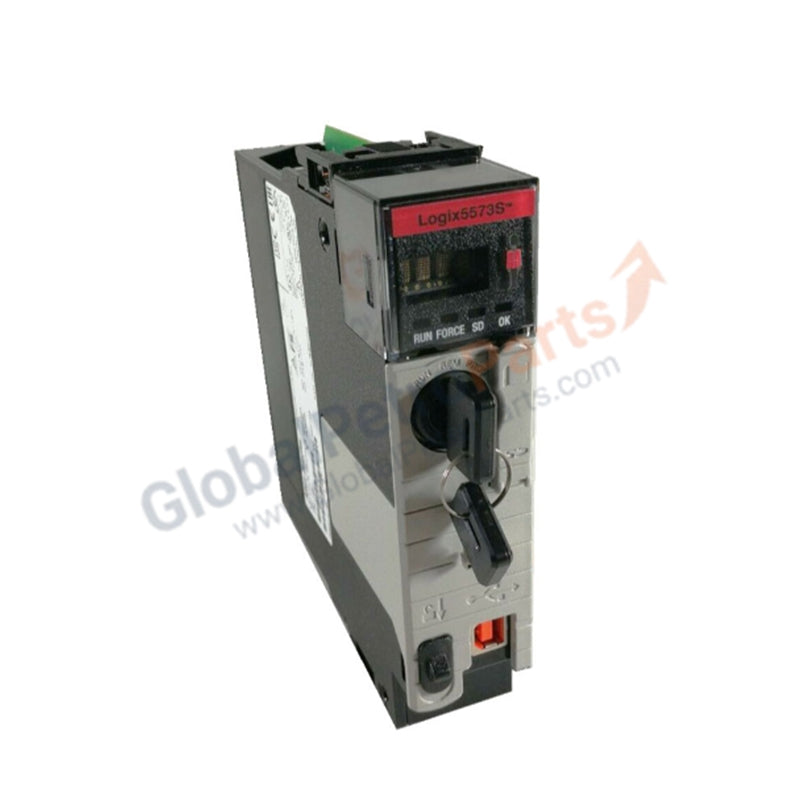

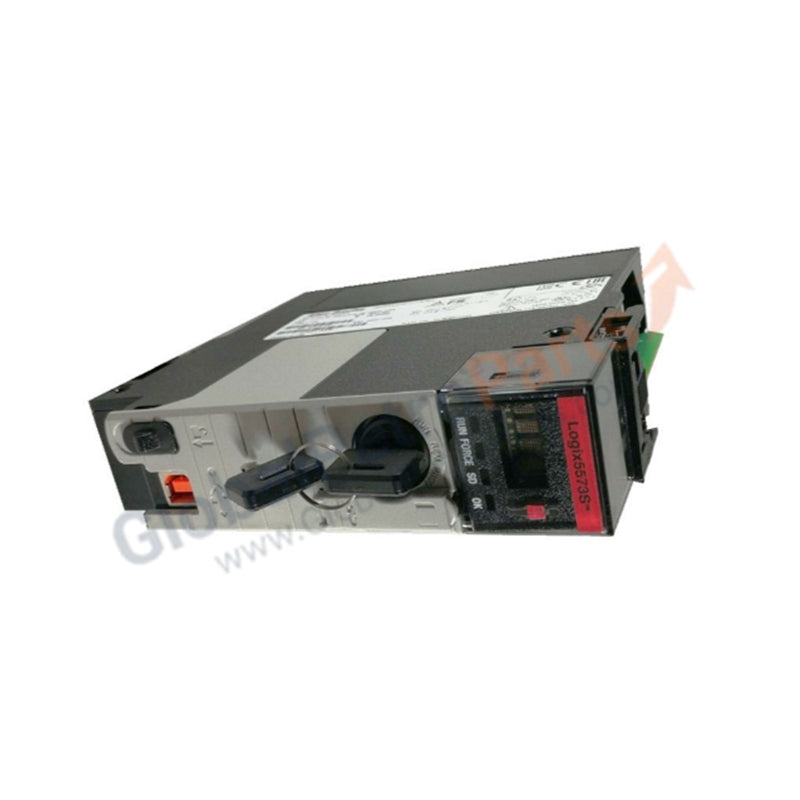

1756-L73S GuardLogix 5570 Safety Controller | Allen Bradley

Product Overview

The Allen Bradley 1756-L73S functions as a high-performance GuardLogix 5570 safety controller, providing integrated safety and motion control in a single ControlLogix chassis. This processor executes both standard and safety-critical tasks simultaneously, achieving SIL 3 and PLe (Category 4) safety ratings when paired with its dedicated safety partner. It manages high-speed logic and complex safety algorithms across large-scale industrial applications. We supply this unit as 100% Brand New and factory-original, ensuring your critical safety infrastructure operates with maximum integrity and compliance.

Technical Specifications

The 1756-L73S leverages a dual-processor architecture to ensure diagnostic coverage and fault detection in high-risk environments.

Engineering Advantages

• Integrated Safety and Control: This module eliminates the need for independent safety systems. By running safety and standard code in one controller, engineers reduce hardware costs, simplify network architecture, and streamline data sharing between safety and standard logic.

• High-Speed Diagnostic Performance: The GuardLogix 5570 series significantly reduces safety reaction times. The processor executes safety tasks with dedicated priority, ensuring the system reaches a safe state instantly during an emergency event or hardware fault.

• Enhanced Memory Management: With 8MB of user memory and a dedicated 4MB for safety code, the 1756-L73S handles massive instruction sets without sacrificing scan times. The included 1GB non-volatile memory card secures your firmware and project files against power loss.

• Simplified Commissioning via USB: The built-in USB port provides high-speed access for firmware updates, programming, and online diagnostics. This eliminates the requirement for complex network configurations during initial setup and field maintenance.

• Robust Signal Isolation: 30V continuous isolation protects the internal processor logic from external electrical noise and backplane transients, ensuring stable operation in high-interference industrial environments.

FAQs

• Can the 1756-L73S operate without the 1756-L7SP?

  No. To achieve safety-rated functionality, you must pair the 1756-L73S with the 1756-L7SP safety partner controller. The primary controller handles the standard and safety logic, while the partner provides the necessary redundancy and cross-checking required for SIL 3 compliance.

• Is this unit provided with the original factory seal?

  Yes. We supply only 100% Brand New units in their original Allen Bradley packaging. Each controller ships with its factory-installed 1GB SD card and documentation.

• Does this controller support ControlLogix redundancy?

  The 1756-L73S does not support standard ControlLogix redundancy (e.g., via 1756-RM2). It focuses specifically on safety redundancy through the GuardLogix partner-processor architecture.

• How do I manage the safety signature?

  The controller utilizes a safety signature to lock and protect safety-critical code. Once you validate your safety program, you generate a unique signature that prevents unauthorized or accidental modifications to the safety logic.
