1756-L83ES | Allen-Bradley | ControlLogix 5580 GuardLogix Safety Controller

Product Overview

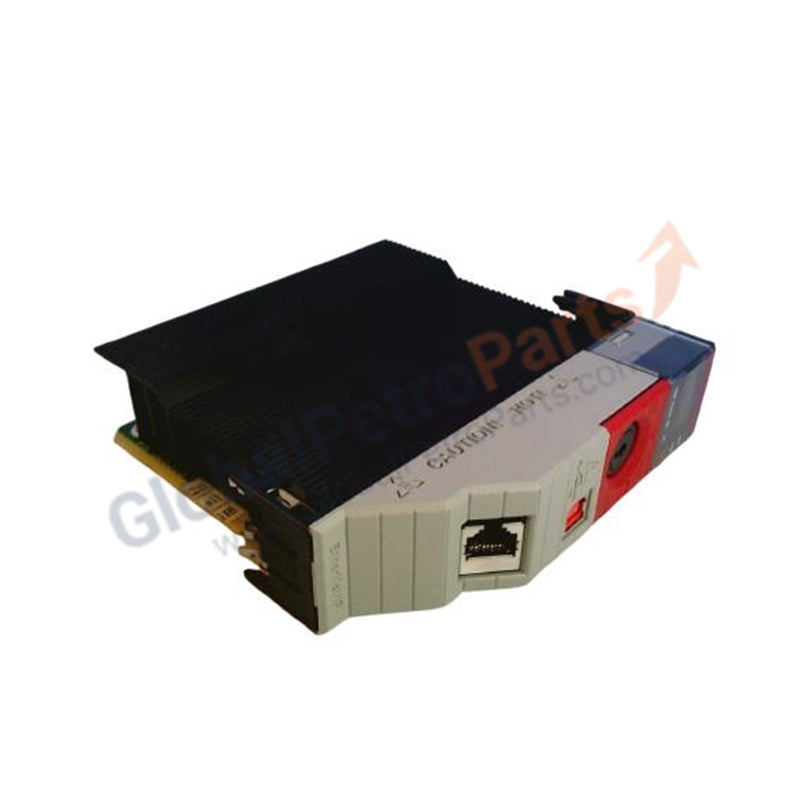

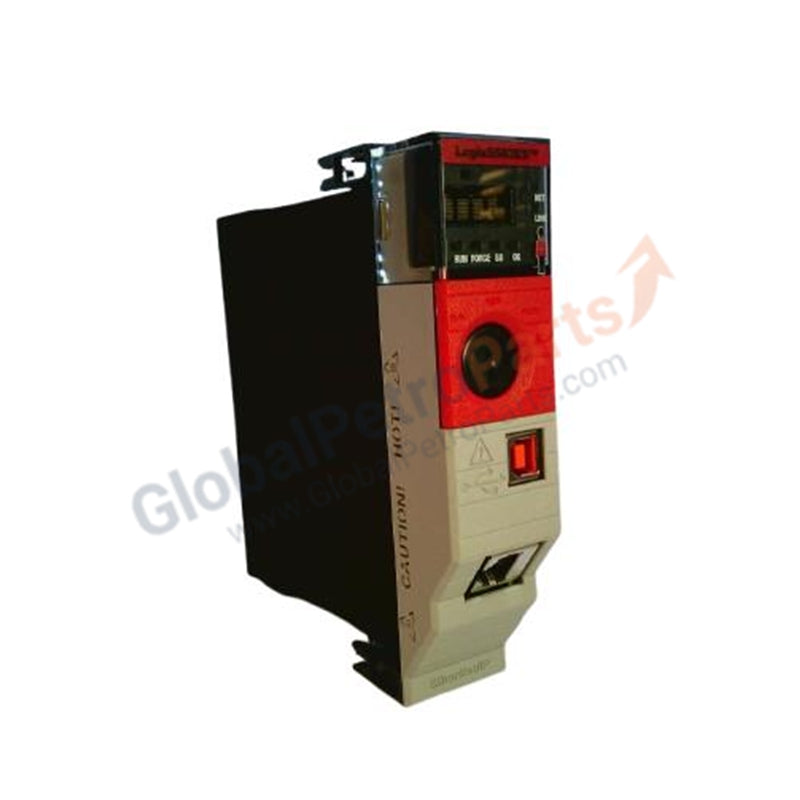

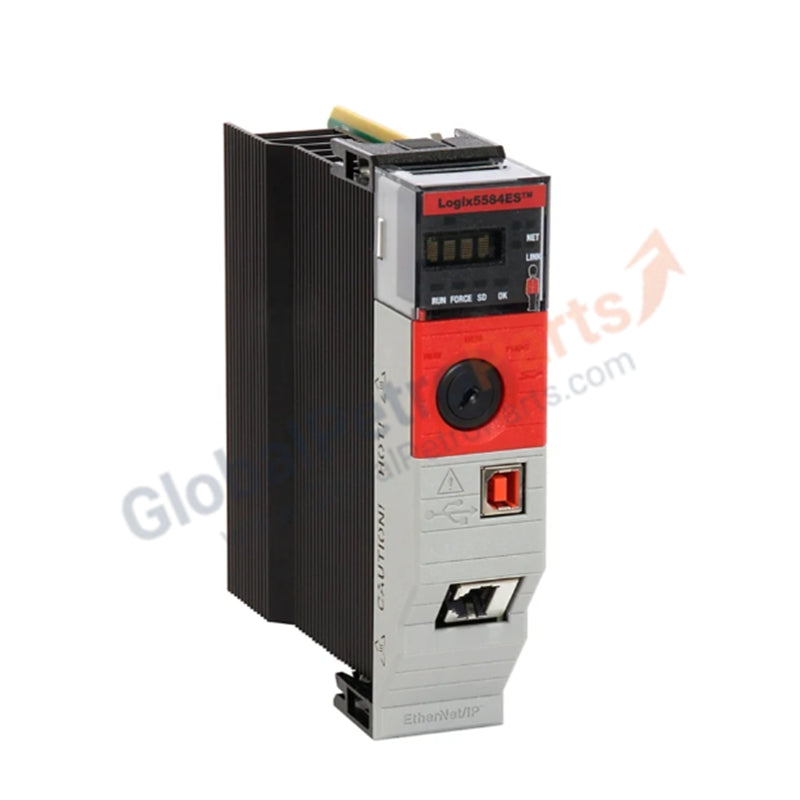

The 1756-L83ES serves as a premier safety processing solution within the ControlLogix 5580 platform. This controller integrates both standard and safety control functions into a single chassis, achieving up to SIL 3 and PLe safety ratings. It manages complex motion, discrete, and safety logic concurrently, providing the processing power required for high-speed manufacturing lines. We provide this unit as 100% Brand New original factory stock, ensuring the highest reliability for human-machine protection and system availability.

Technical Specifications

Engineering Advantages

• Superior Communication Throughput: The integrated 1Gbps Ethernet port eliminates communication bottlenecks. It handles up to 250 EtherNet/IP nodes, allowing the processor to manage massive distributed I/O arrays and high-axis-count motion without requiring additional communication bridge modules.

• Streamlined Safety Architecture: This module executes safety logic alongside standard control code. This integration eliminates the need for a separate safety partner module (required in older L7 series), reducing hardware costs, saving chassis slots, and simplifying the safety signature verification process.

• Real-time System Diagnostics: The front-facing 4-character alphanumeric display provides instantaneous status updates and error codes. This feature allows maintenance teams to identify fault conditions or network issues directly at the rack without connecting a PC.

• High-Speed Execution: The 5580 architecture delivers significantly faster scan times than previous generations. It optimizes the execution of large instruction sets, ensuring the safety system reacts within microseconds to field device triggers like light curtains or E-stops.

FAQs

Does the 1756-L83ES require a separate safety partner module?

No. Unlike the older 1756-L7 series, the 1756-L83ES utilizes the 5580 dual-core architecture to handle safety functions within a single module. This design saves rack space and reduces the complexity of your I/O configuration.

What is the benefit of the built-in 1Gbps Ethernet port?

The embedded port provides dedicated high-speed bandwidth for the controller. It supports DLR (Device Level Ring) topologies natively and ensures that safety-critical CIP Safety data packets prioritize correctly over standard network traffic.

Can I replace a standard 1756-L83E with this safety version?

Yes, the 1756-L83ES contains the same 10MB of standard memory as the L83E but adds the 5MB safety memory partition. You must use Studio 5000 Logix Designer version 31 or higher to configure the safety-specific features of this module.

How does the USB port assist in field commissioning?

The USB 2.0 port provides a high-speed local connection for firmware flashing and programming. It allows engineers to configure the module or perform diagnostics without needing to know the pre-set IP address of the Ethernet port.
