1756-L8SP | Allen Bradley ControlLogix GuardLogix Safety Partner Controller

Product Overview

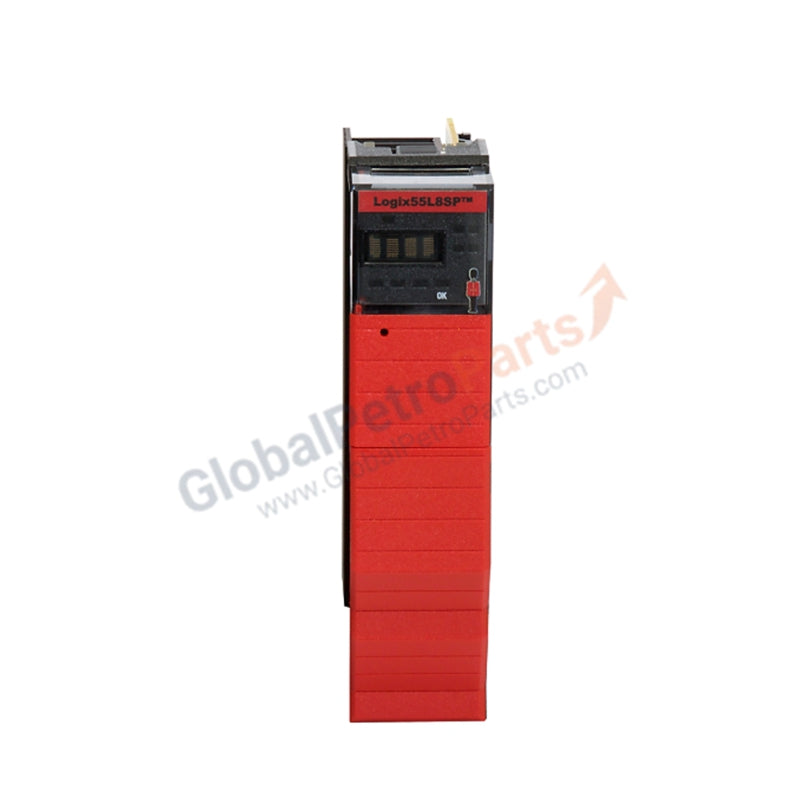

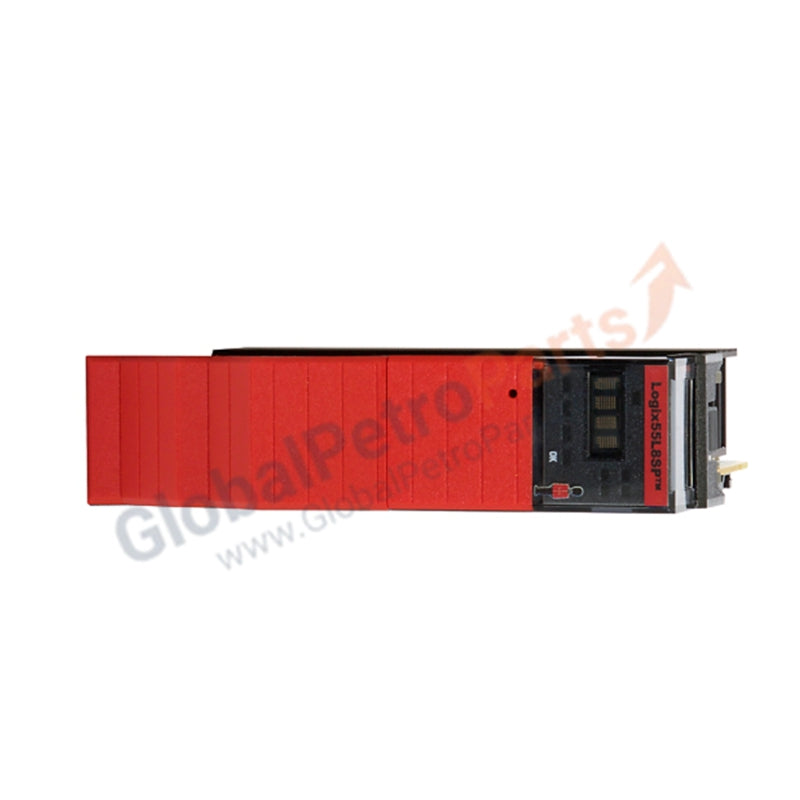

The Allen Bradley 1756-L8SP functions as a high-performance GuardLogix safety partner controller within the ControlLogix 5580 product family. This specialized coprocessor pairs directly alongside a primary GuardLogix 5580 controller to achieve SIL 3, PLe functional safety ratings for critical industrial operations. It provides the necessary processing redundancy to safeguard high-risk applications, including automotive assembly, robotic cells, and material handling systems. We guarantee this unit is 100% brand new, authentic factory stock in its original packaging.

Technical Specifications

Engineering Advantages

• Harsh-Environment Survival via Conformal Coating: Factory-applied conformal coating shields the internal circuitry against airborne moisture, dust, corrosive chemical vapors, and conductive particulates. This barrier prevents unexpected short circuits and corrosion in aggressive setups like wastewater facilities or chemical processing plants.

• Streamlined SIL 3 Dual-Processor Architecture: The module executes safety tasks in parallel with the primary processor without complex synchronization wiring. This unified chassis architecture eliminates the need for separate, bulky safety sub-systems, saving significant control panel DIN rail space.

• Extended Thermal Performance Window: The ruggedized hardware components support an expanded operating range from -25°C to 70°C. This wide operational range prevents thermal shutdown inside unventilated control enclosures exposed to extreme factory-floor ambient temperatures.

• High Component Longevity: The controller handles up to 80,000 distinct power cycles without degrading the memory architecture or internal power rails. This heavy-duty design profile ensures long-term operational availability during frequent plant maintenance intervals.

FAQs

• Which primary controllers require the 1756-L8SP safety partner?

  You must use the 1756-L8SP alongside a primary GuardLogix 5580 safety controller (such as the 1756-L81S, 1756-L82S, 1756-L83S, or 1756-L84S) to unlock SIL 3 and PLe safety functionality.

• Where exactly must I install this module inside the ControlLogix chassis?

  You must install the 1756-L8SP in the slot immediately to the right of the primary GuardLogix safety controller. The two modules communicate across the backplane as a functional pair.

• Does this safety partner require its own project file or independent programming?

  No. Studio 5000 Logix Designer treats the primary controller and the safety partner as a single cohesive unit. You download the configuration program solely to the primary controller, which then updates the 1756-L8SP automatically.

• Does this product ship with the battery or energy storage module?

  The 1756-L8SP leverages internal non-volatile memory and does not require a legacy lithium battery. We ship the unit 100% brand new, factory sealed with the standard factory-installed capacitor-based energy storage module.
