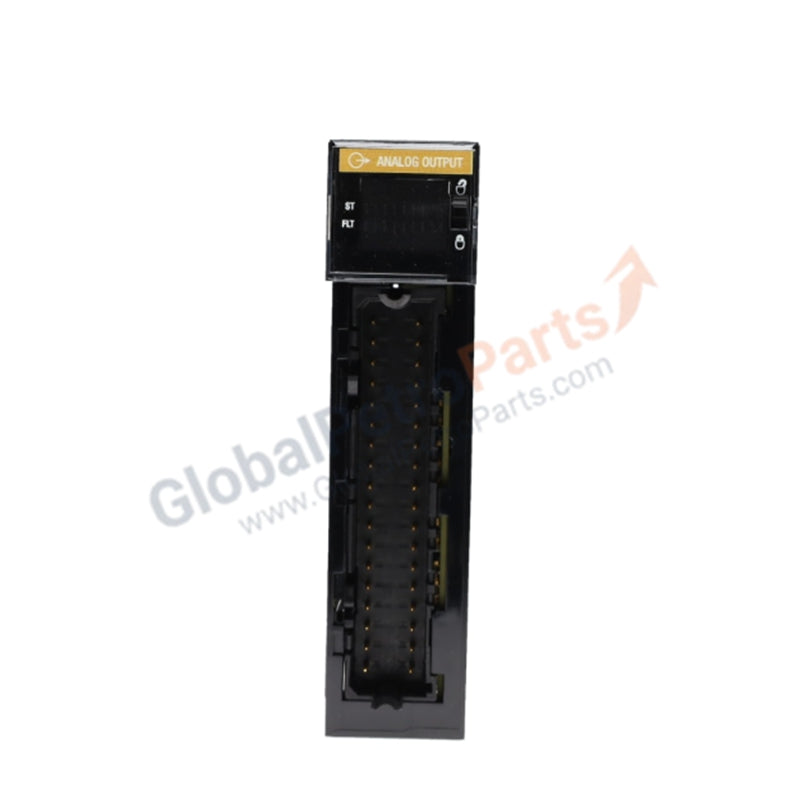

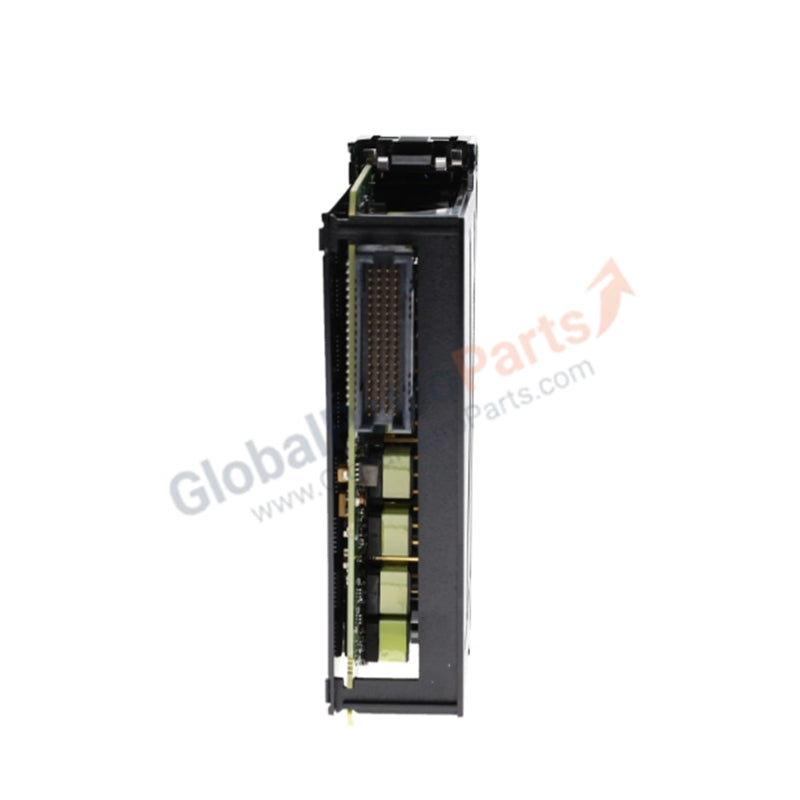

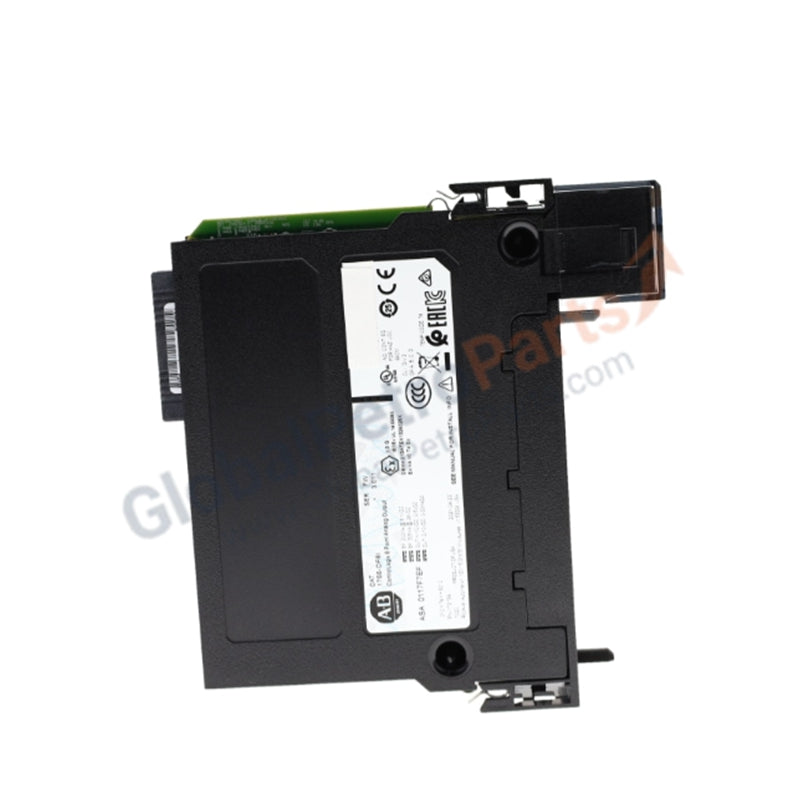

1756-OF8 | Allen-Bradley ControlLogix | Analog Output Module

Product Description

The Allen-Bradley 1756-OF8 is an analog output module engineered for ControlLogix systems, delivering precise voltage and current signals for industrial automation. With high-resolution output and flexible configuration, it ensures accurate control across a wide range of applications.

Key Features

• Model 1756-OF8 analog output module

• Number of Outputs 8 independent analog channels

• Voltage Output Range 0 … 10 VDC

• Current Output Range 4 … 20 mA

• Resolution 16-bit for precise signal generation

• Output Type Configurable for voltage or current mode

• Power Rating 6.3 W per channel

• Operating Temperature -10 … +55 °C

• Mounting Style DIN rail installation

• Dimensions 178 × 107 × 40 mm

• Weight 0.5 kg

Technical Specifications

• Signal Accuracy High-resolution 16-bit conversion for stable analog output

• Diagnostics LED indicators for channel status and troubleshooting

• Integration Fully compatible with Allen-Bradley ControlLogix controllers and networks

• Design Compact housing optimized for space-efficient installation

Application Scenarios

• Process Control Precise analog signal generation for industrial processes

• Machine Automation Voltage and current outputs for actuator and drive control

• Distributed Systems Compact design suitable for decentralized installations

• Energy Management Reliable analog outputs for monitoring and regulation tasks

Similar Model Comparison

• 1756-OF8 Standard analog output module with 8 channels

• 1756-OF6CI Combination module supporting current and voltage inputs/outputs

• 1756-OF4 Compact version with fewer channels for smaller systems

FAQ

• Q: How many analog outputs are available on the 1756-OF8?  A: It provides 8 independent analog output channels.

• Q: What output modes are supported?  A: Both voltage (0–10 VDC) and current (4–20 mA) modes are supported.

• Q: Is the module compatible with all ControlLogix chassis?  A: Yes, it integrates seamlessly with ControlLogix systems.
