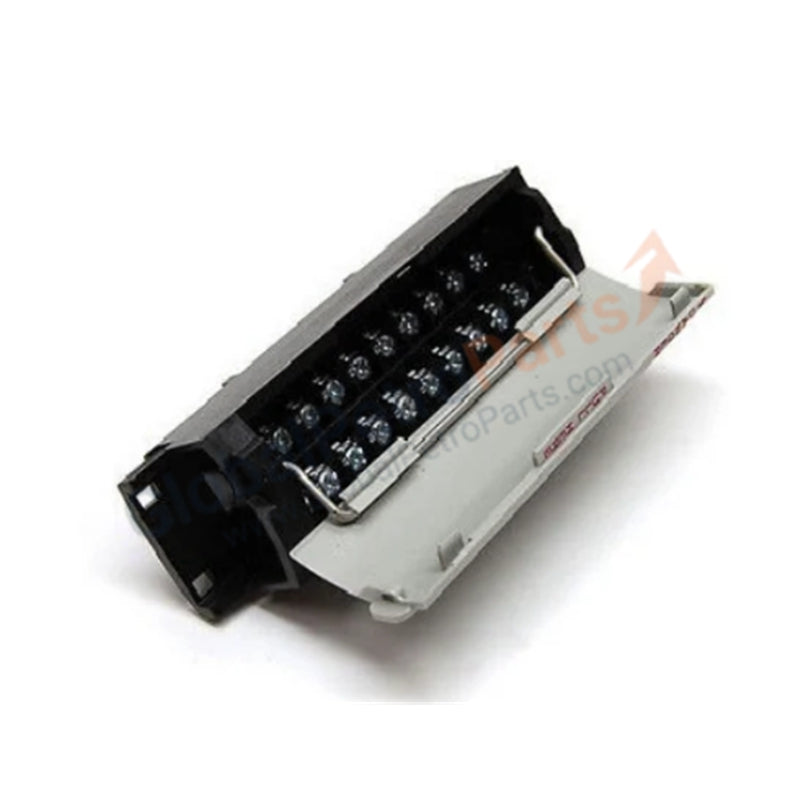

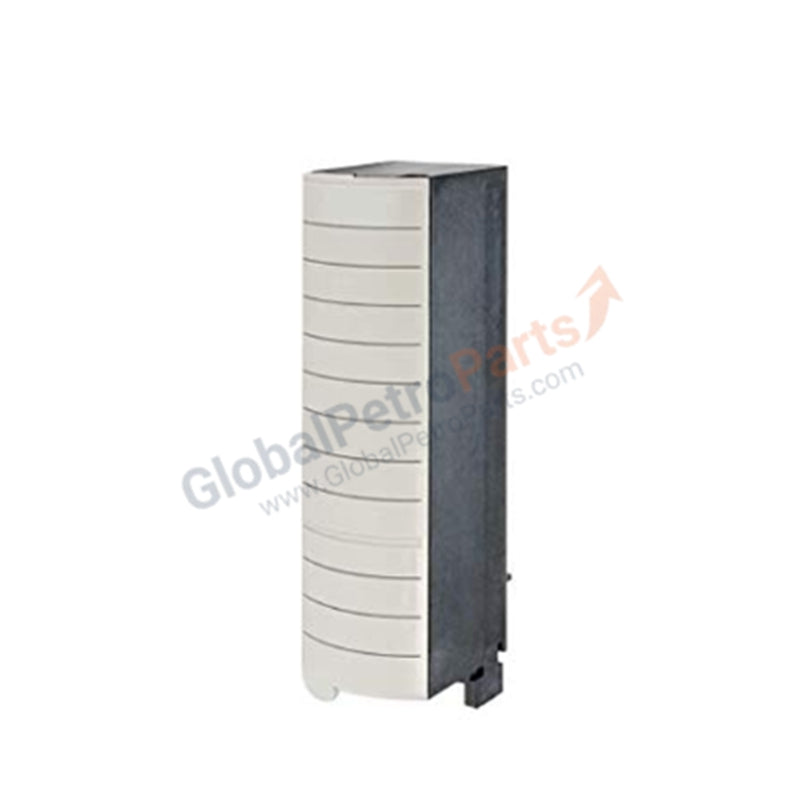

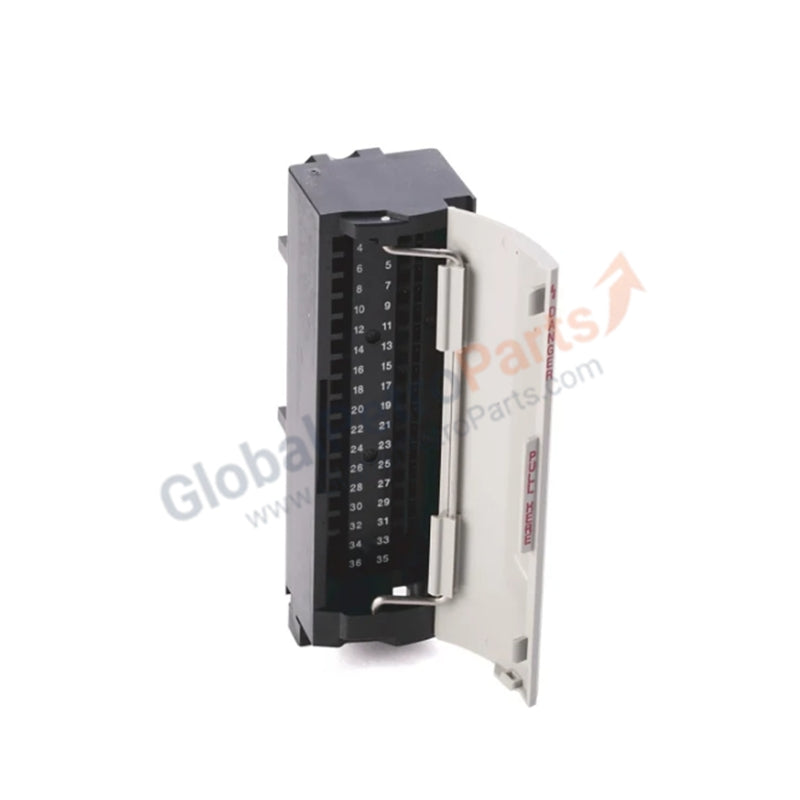

1756-TBS6H | Allen | Bradley ControlLogix 36-Pin Spring-Clamp Terminal Block

Product Description

The Allen Bradley 1756-TBS6H is a removable terminal block designed for ControlLogix modules, providing secure spring-clamp connections for 36-pin wiring. Engineered for reliability and ease of installation, it supports efficient current distribution and stable performance in industrial automation systems. Its compact design and compatibility with ControlLogix chassis make it an essential accessory for modular PLC configurations.

Technical Specifications

• Manufacturer: Allen Bradley

• Category: PLCs

• Product Line: ControlLogix

• Part Number: 1756-TBS6H

• UPC: 612598171873

• Weight: 0.25 lbs (0.11 kg)

• Module Type: Terminal Block

• Connection Type: Spring-clamp

• Pins: 36-pin removable connection

• Backplane Current (5 VDC): 1200 mA

• Backplane Current (24 VDC): 2.5 mA

• Power Dissipation (Max): 6.19 W

• Wire Size Supported: 20 AWG

• Operating Temperature: 0–60 °C (32–140 °F)

• Enclosure: None (open-style design)

Application Scenarios

• Designed for ControlLogix modules requiring removable terminal blocks

• Suitable for distributed control systems with high-density wiring needs

• Provides secure spring-clamp connections for industrial automation panels

FAQ

Q: How many pins does the 1756-TBS6H support?  A: It supports 36-pin removable connections.

Q: What type of clamp connection is used?  A: Spring-clamp terminals for secure and reliable wiring.

Q: What wire size is supported?  A: 20 AWG conductors.
