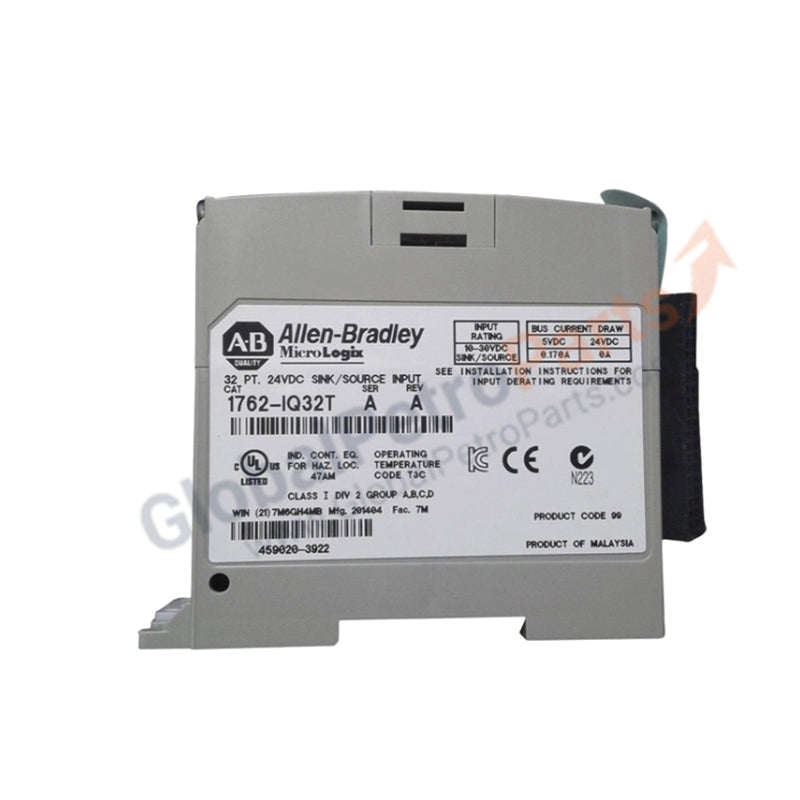

1762-IQ32T | Allen-Bradley MicroLogix 1200 | 32-Point Digital Input Module

Product Description

Allen-Bradley MicroLogix 1200 Digital Input Module – Model: 1762-IQ32T  The 1762-IQ32T is a high-density discrete input module designed for the MicroLogix 1200 series. It provides thirty-two (32) DC input channels organized into four isolated groups, each containing eight channels. This module is engineered for compact control systems requiring reliable signal acquisition and efficient integration with MicroLogix controllers.

Technical Specifications

Application Scenarios

• Compact machine control systems requiring multiple digital inputs

• Packaging and assembly line monitoring

• Energy management and utility control systems

• Industrial automation projects with limited panel space

FAQ

Q: Which MicroLogix controllers are supported?  A: The 1762-IQ32T is compatible with MicroLogix 1100, 1200, and 1500 controllers.

Q: How are the inputs grouped?  A: The module has four isolated groups, each containing eight input channels.

Q: What is the isolation rating?  A: It is verified by dielectric tests at 1200 V AC or 1697 V DC for 2 seconds, with a working voltage of 75 V DC.
