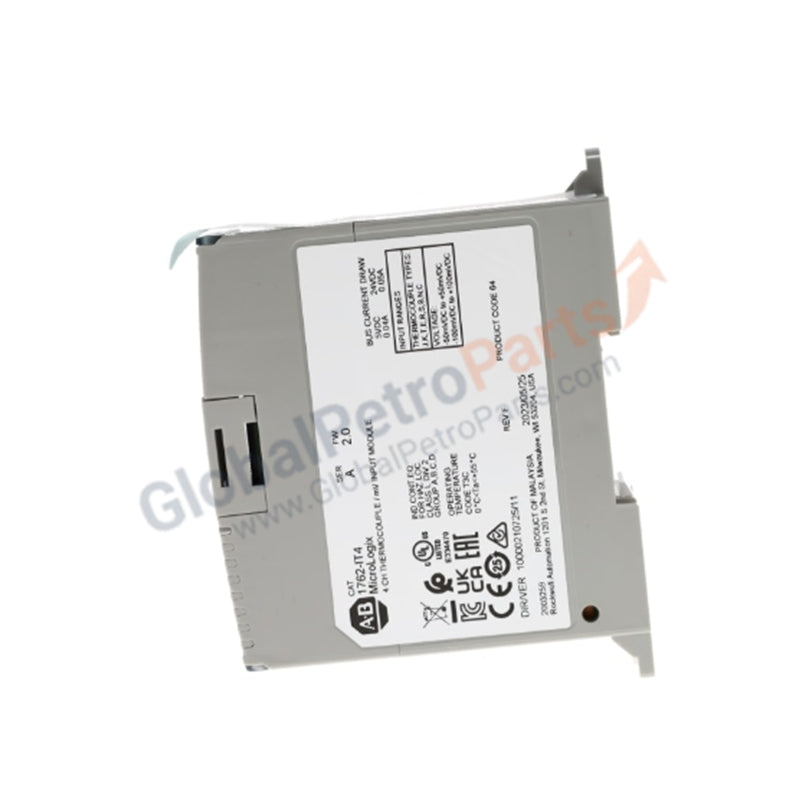

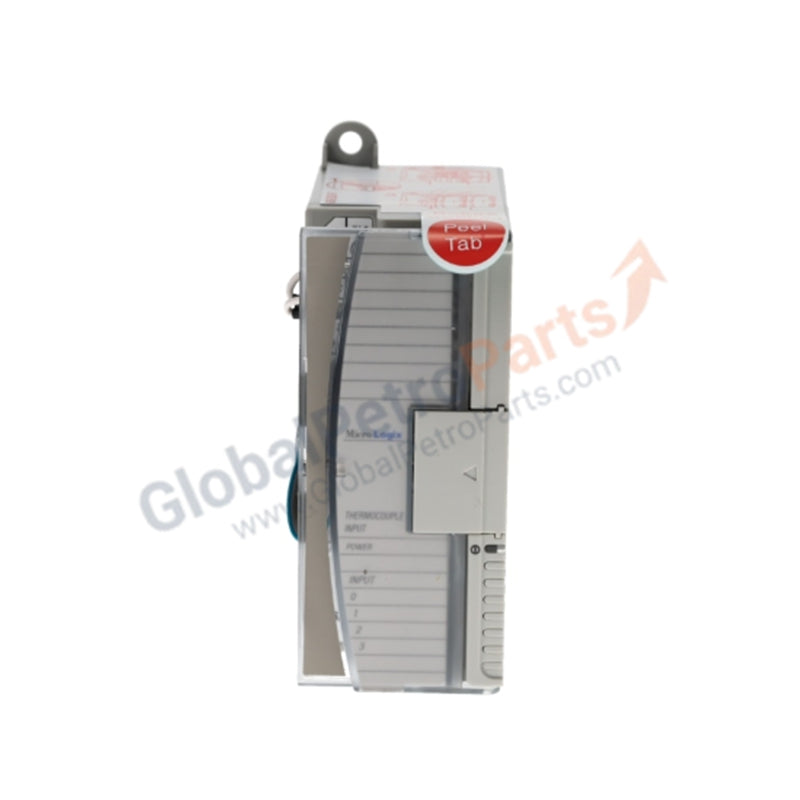

1762-IT4 | Allen Bradley | MicroLogix 1200 Thermocouple/mV Input Module

Product Overview

The Allen Bradley 1762-IT4 acts as a high-precision temperature monitoring expansion module for the MicroLogix 1200 controller platform. This hardware accepts up to four independent thermocouple inputs or low-voltage millivolt ($\pm50\text{ mV}$ / $\pm100\text{ mV}$) signals directly from thermal sensors on the plant floor. It translates minute thermal voltage changes into actionable digital temperature values for kilns, ovens, injection molding equipment, and chemical batch processes. We guarantee this expansion module arrives in 100% brand new, original factory-sealed condition.

Technical Specifications

Engineering Advantages

• High-Accuracy Cold Junction Compensation: The module includes an integrated Cold Junction Compensation (CJC) sensor providing $\pm1.3\text{ °C}$ accuracy. This hardware eliminates the requirement for external reference junctions, ensuring precise temperature tracking even when ambient control panel temperatures fluctuate rapidly.

• Advanced Delta-Sigma Noise Rejection: The onboard Delta-Sigma converter paired with a programmable notch filter eliminates high-frequency electromagnetic interference (EMI). Engineers select filter frequencies like 50 Hz or 60 Hz to block local electrical grid hum from corrupting low-voltage thermocouple signals.

• Speed vs. Resolution Optimization: The card delivers configurable channel update speeds ranging from a fast 7 ms up to 303 ms. This allows control designers to prioritize blazing-fast response times for high-speed thermal reactions, or choose slower, high-resolution processing for steady-state applications.

• Automatic Field Self-Calibration: The module executes an automatic calibration routine during every power-up sequence and runs background programmable calibration cycles during runtime. This feature offsets component drift caused by aging and thermal stress, maintaining instrument accuracy over long deployment cycles.

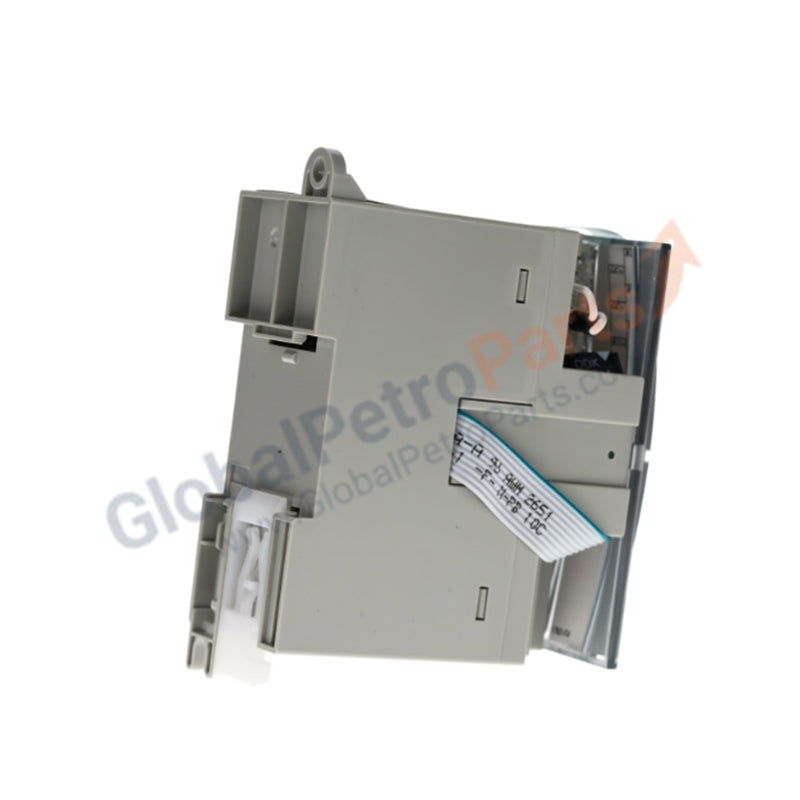

• Direct DIN Rail Snap-In Mounting: The open-type compact enclosure snaps directly onto standard 35mm DIN rails. The integrated ribbon cable hooks straight into the adjacent MicroLogix 1200 controller or expansion card, eliminating tedious point-to-point backplane bus wiring.

FAQs

• Does this 1762-IT4 module arrive with the original factory packaging and seals?

  Yes. We ship this Allen Bradley 1762-IT4 module as a 100% brand new, authentic factory-packaged item. It comes inside its original Rockwell Automation box with protective anti-static wrapping and original product booklets.

• Can I mix different thermocouple types on the same module?

  Yes. The module allows you to configure each of the 4 input channels independently via your RSLogix 500 programming software. You can wire a Type J thermocouple to channel 0, a Type K to channel 1, and millivolt signals to the remaining terminals.

• What is the exact purpose of the Power Supply Distance Rating of 6?

  The distance rating indicates that you must install the 1762-IT4 within 6 slots of the primary MicroLogix 1200 controller or an expansion power supply. Placing the module further away drops the voltage across the ribbon cable below acceptable thresholds.

• Does the module require manual calibration with a voltage simulator?

  No. The module autocalibrates itself automatically at startup and continues to run background self-calibration cycles based on your user configuration parameters, removing the need for regular physical adjustment interventions.
