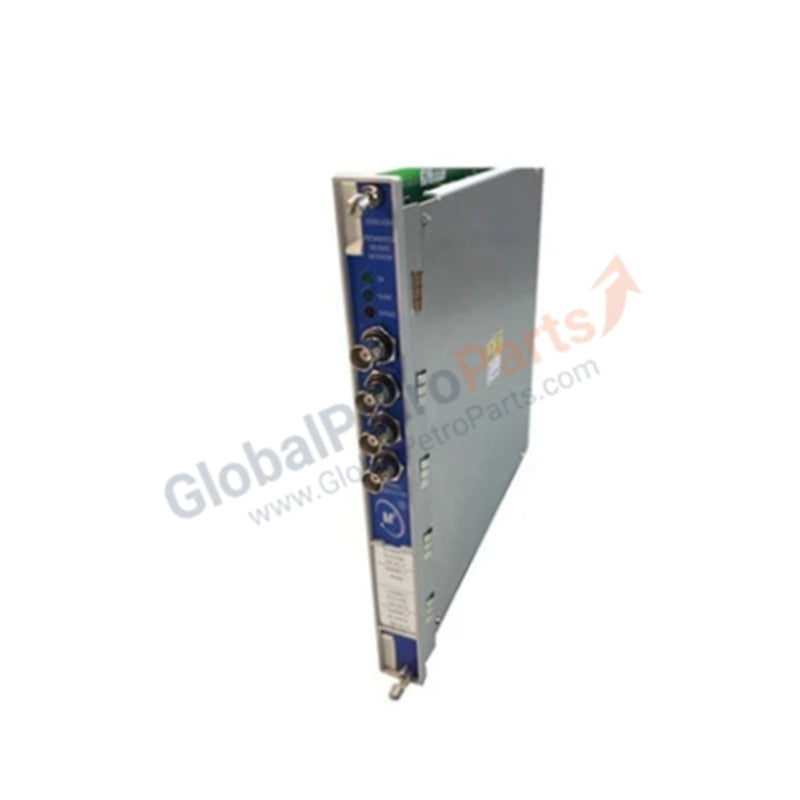

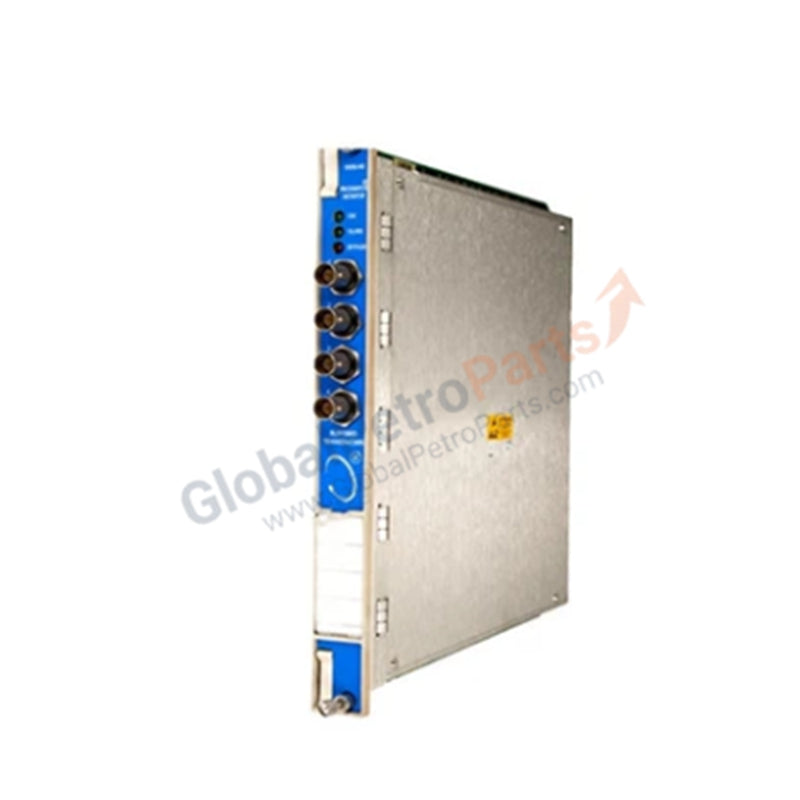

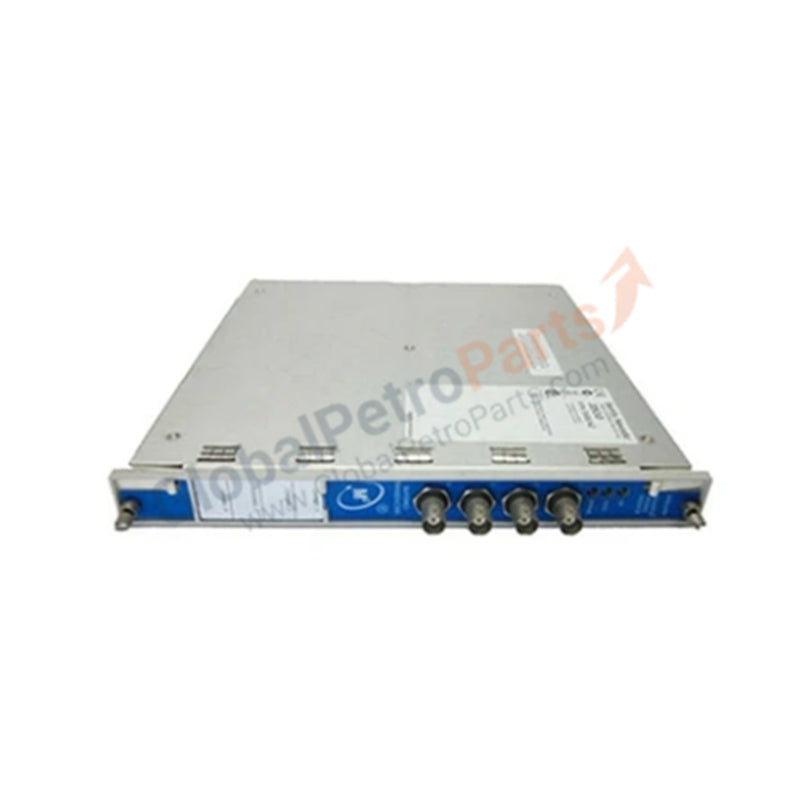

176449-09 3500/70M | Bently Nevada | Recip Impulse Velocity Monitor

Configured for reciprocating compressor vibration monitoring within 3500 Machinery Protection System platforms, the Bently Nevada 176449-09 (3500/70M) Recip Impulse Velocity Monitor provides direct physical and electrical execution for multi-channel impulse and velocity signal acquisition.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Integration

The 3500/70M monitor processes complex vibration signals from reciprocating compressor components such as crankcases and crossheads. Effective monitoring requires accurate eddy-current probe scaling if integrated with shaft-relative inputs, or precise seismic scaling for casing-mounted transducers. Gap voltage validation, targeting -10 VDC, is necessary for any proximity-based inputs to ensure the signal remains within the linear dynamic range of the transducer. The module employs signal processing to extract impulse acceleration and various velocity metrics, which are key indicators in rotor dynamics and reciprocating mechanism health. Cross-talk suppression is maintained through internal filtering and differential processing, ensuring that high-frequency impulse events do not interfere with low-frequency velocity measurements.

Frequently Asked Questions

Q: Does the 3500/70M module support hot-swapping in the 3500 rack?

A: Yes, the module supports hot-swapping. Verify that the Rack Interface Module (RIM) identifies the module slot and that the configuration logic is correctly mapped before enabling the alarm trip functions.

Q: Can the four channels be configured for four different vibration functions?

A: No, the channels are programmable in pairs. The module supports a maximum of two unique vibration functions concurrently, with each pair sharing the programmed function type.

Field Installation Guidelines

1. Pre-Installation Inspection: Verify that the rack backplane connectors are free of oxidation or debris. Ensure the module firmware is compatible with the existing rack configuration.
2. Mounting: Insert the module into the designated 3500 rack slot. Utilize the ejector levers to ensure the connector is fully seated against the backplane.
3. Signal Termination: Connect field transducers to the I/O module terminal blocks. Utilize shielded cabling to minimize EMI ingress, grounding the shield exclusively at the rack common point.
4. Configuration: Use the 3500 configuration software to assign functions (Impulse Acceleration, Recip Velocity, etc.) to channel pairs. Validate the channel programming against the compressor monitoring requirements.
5. Loop Validation: Perform a system check by simulating transducer inputs to verify alarm logic activation and the accuracy of the displayed velocity or acceleration values.
