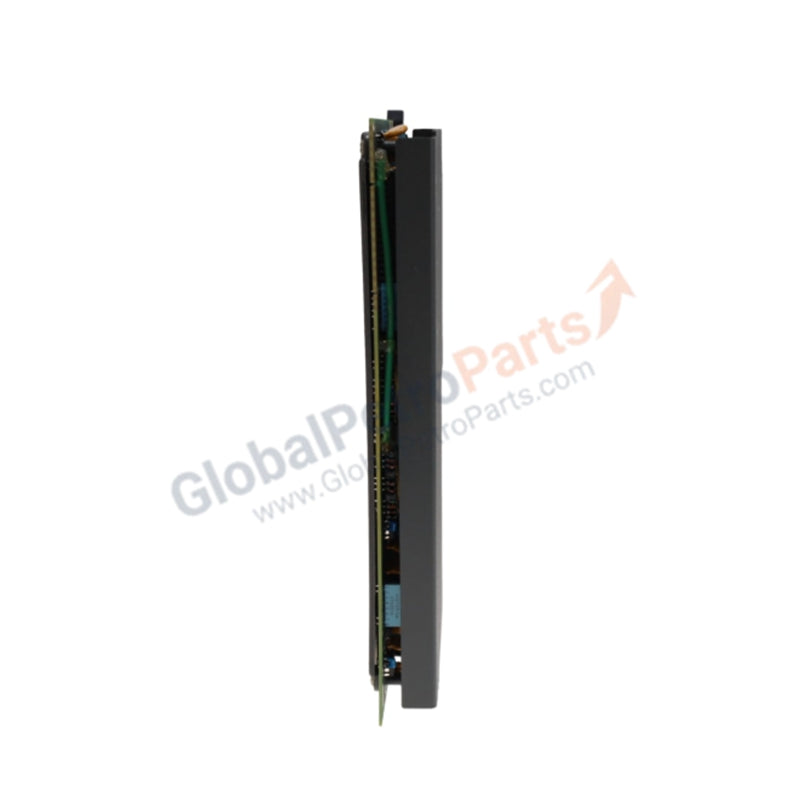

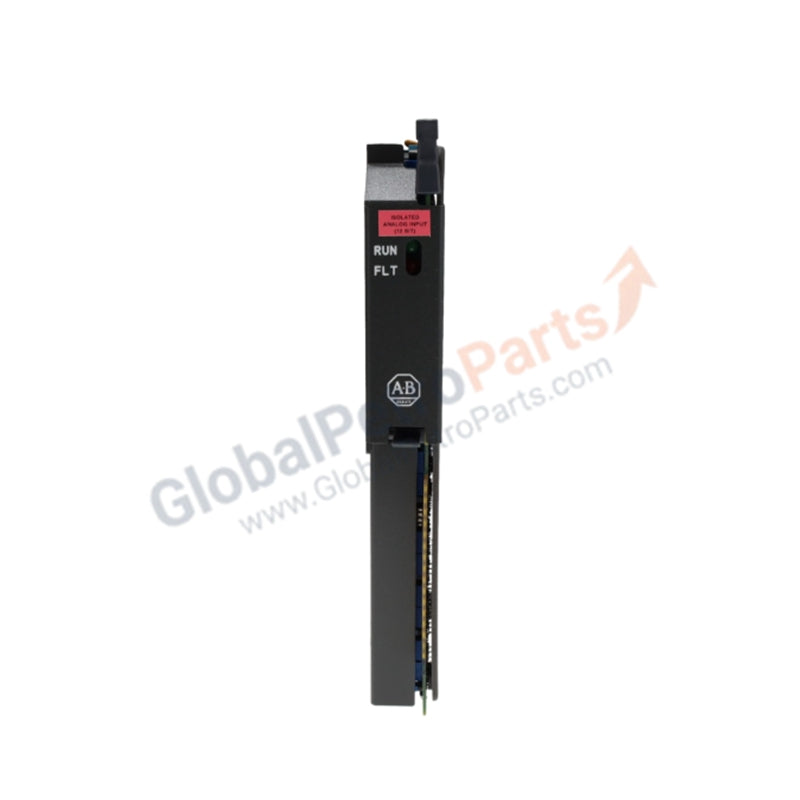

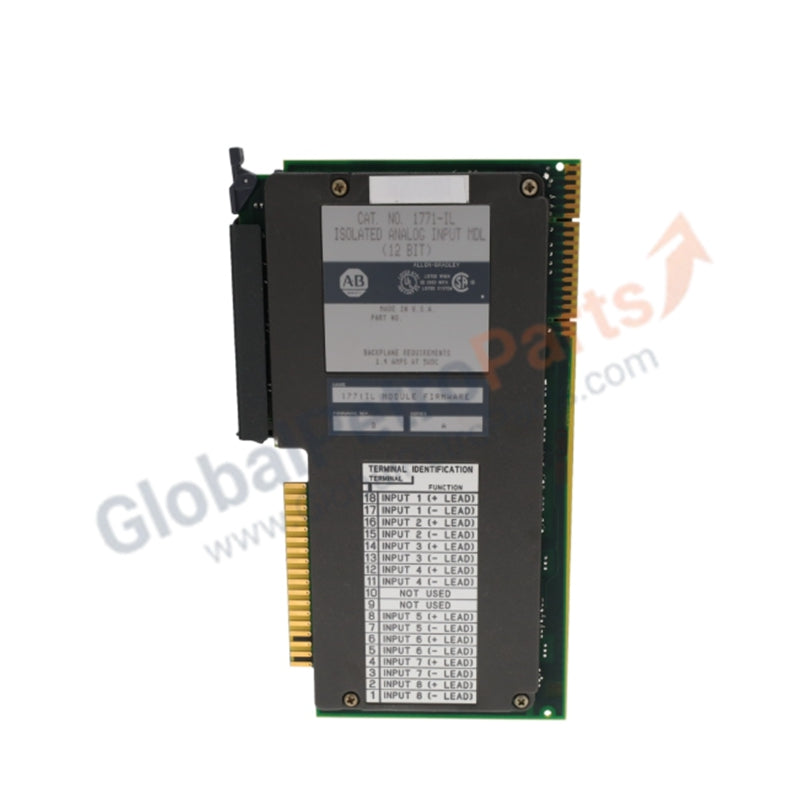

1771-IL PLC-5 Isolated Differential Analog Input Module | Allen-Bradley

Product Overview

The Allen-Bradley 1771-IL functions as a high-performance analog input interface for the PLC-5 Universal I/O platform. This module converts analog signals from field transmitters—such as pressure transducers, flow meters, and thermocouples—into digital data for the processor. By utilizing isolated differential inputs, the 1771-IL eliminates ground loop interference and ensures high-signal integrity in harsh electrical environments. We supply this unit as 100% Brand New and Original, providing a rare opportunity to secure factory-fresh hardware for mission-critical legacy infrastructure.

Technical Specifications

Engineering Advantages

• Superior Ground Loop Immunity: The 1771-IL features isolated differential inputs. This architecture prevents common-mode noise and ground loops from corrupting low-level analog signals, a critical requirement for accurate measurements in large-scale industrial plants with varying ground potentials.

• Versatile Signal Compatibility: Engineers configure each channel for specific voltage or current ranges. This flexibility allows the module to interface with diverse field instruments without requiring external signal conditioners, simplifying the bill of materials for control cabinet retrofits.

• Efficient Block Transfer Communication: The module utilizes Block Transfer (BT) programming to exchange large volumes of data with the PLC-5 processor in a single scan. This optimizes backplane traffic and ensures the CPU receives synchronized updates from all eight channels simultaneously.

• Rugged Chassis Integration: The 1771-IL slides into any standard 1771 I/O chassis. The robust mechanical design withstands the vibration and thermal cycles found in heavy industrial environments, ensuring consistent performance over decades of operation.

FAQs

• Q: Can the 1771-IL replace the non-isolated 1771-IFE module?

  A: Yes. While the 1771-IFE offers more channels, the 1771-IL provides superior isolation. If your application suffers from signal noise or ground loops, upgrading to the 1771-IL often solves these instability issues, though you must adjust your wiring and PLC block transfer code accordingly.

• Q: Does the 1771-IL require an external power supply for the analog loops?

  A: The module draws logic power from the 1771 backplane, but your field transmitters typically require a separate 24V DC loop power supply. Always refer to your specific sensor requirements to ensure the 4-20mA loop remains properly energized.

• Q: How do I configure the input ranges for different sensors?

  A: You set the input ranges (e.g., 4-20mA, 0-10V, 1-5V) using a combination of physical DIP switches on the module's circuit board and the configuration block in your RSLogix 5 software. Ensure these settings match before inserting the module into a live chassis.

• Q: What is the benefit of "Differential" inputs in an industrial setting?

  A: Differential inputs measure the voltage difference between two signal wires rather than measuring one wire relative to ground. This allows the 1771-IL to reject "common-mode" noise—interference that appears on both wires simultaneously—providing a much cleaner signal for high-precision processing.
