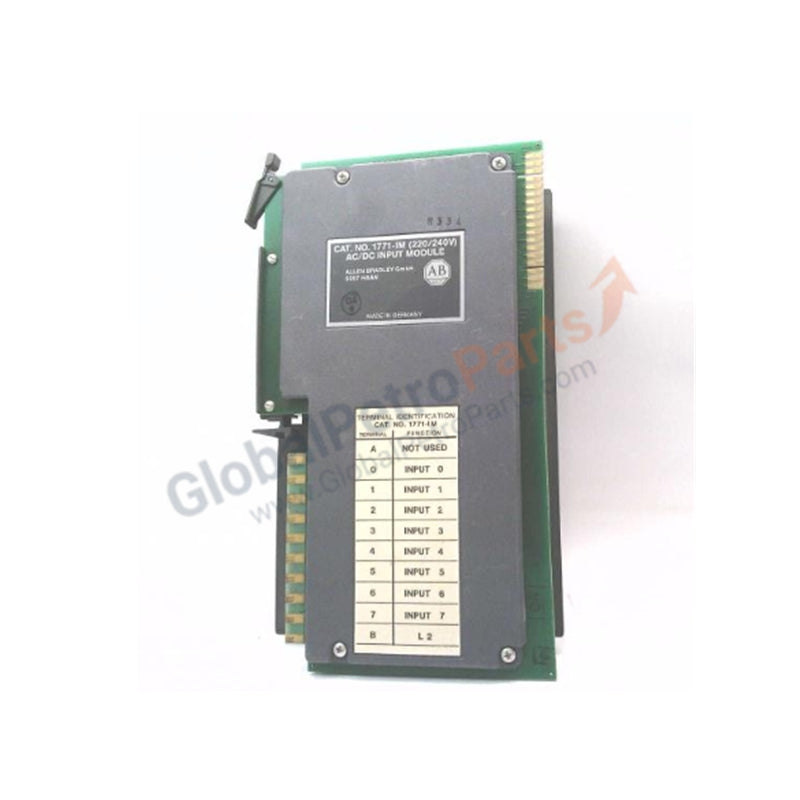

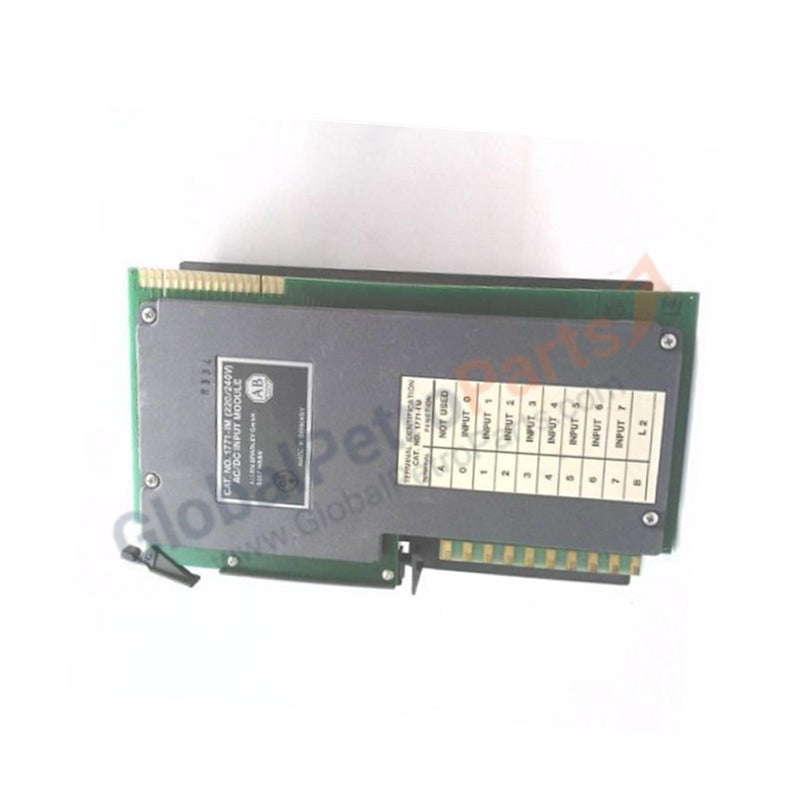

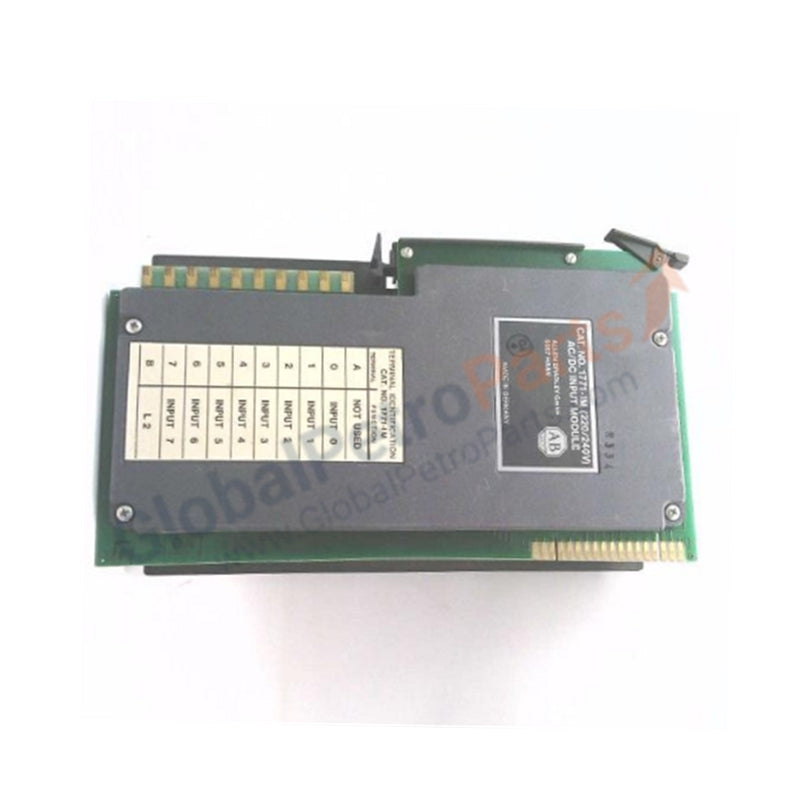

1771-IM | Allen-Bradley | Universal I/O PLC-5 Digital Input Module

Product Overview

The 1771-IM serves as a critical interface for the Allen-Bradley PLC-5 platform, converting high-voltage field signals into logic-level data. It monitors discrete states from limit switches, pushbuttons, and motor starters operating at 220/240V levels. We provide this unit in 100% Brand New condition, ensuring maximum MTBF (Mean Time Between Failure) for plants maintaining legacy PLC-5 architectures.

Technical Specifications

Engineering Advantages

• Universal Voltage Compatibility: The module bridges the gap between high-voltage field power and low-voltage logic. It accepts both AC and DC inputs, providing engineering teams with the flexibility to standardize spare parts across different power distributions.

• Optical Isolation: Internal circuitry separates field-side transients from the sensitive PLC-5 backplane. This isolation prevents voltage spikes from cascading through the rack, protecting the processor and neighboring modules.

• Reduced Rack Loading: With a low backplane current draw of only 75 mA, this module allows for dense I/O configurations without overtaxing the 1771 power supply.

• Hardened Industrial Design: The 1771-IM utilizes the classic "Universal I/O" rugged housing. It withstands the thermal stresses of unconditioned cabinets, maintaining signal accuracy in environments ranging from 0 to 60°C.

FAQs

How does the 1771-IM handle signal debouncing?

The module hardware incorporates fixed filters that require a signal to persist for approximately 20ms before registering as a "high" state. This prevents electrical noise and contact bounce from triggering false logic execution.

Can I replace a 1771-ID (120V) with a 1771-IM (220V)?

No. While the physical form factor remains the same, the 1771-IM requires a 220/240V threshold to activate. Using it in a 120V circuit will result in the module failing to detect input transitions.

What are the wiring requirements for the 1771-IM?

The module requires the 1771-WN wiring arm. This swing-arm design allows you to replace the module without disconnecting individual field wires, significantly reducing downtime during maintenance cycles.

Does this brand-new unit require specific configuration in RSLogix 5?

You configure the 1771-IM as a standard 8-point discrete input module within the I/O configuration tree. Since it uses a 1-slot addressing format, ensure your DIP switch settings on the 1771 backplane match your intended rack addressing logic.
