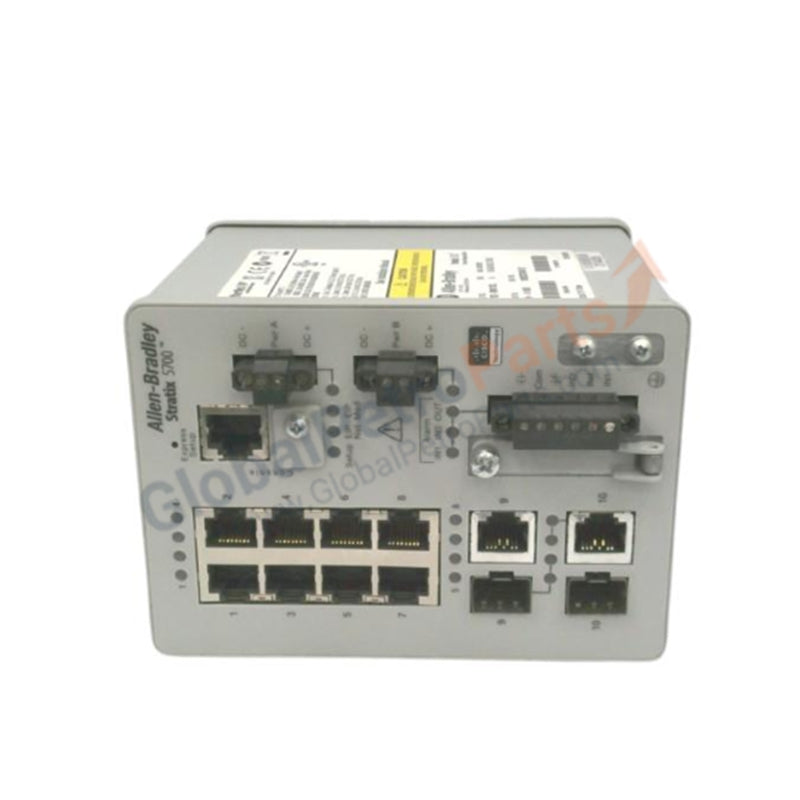

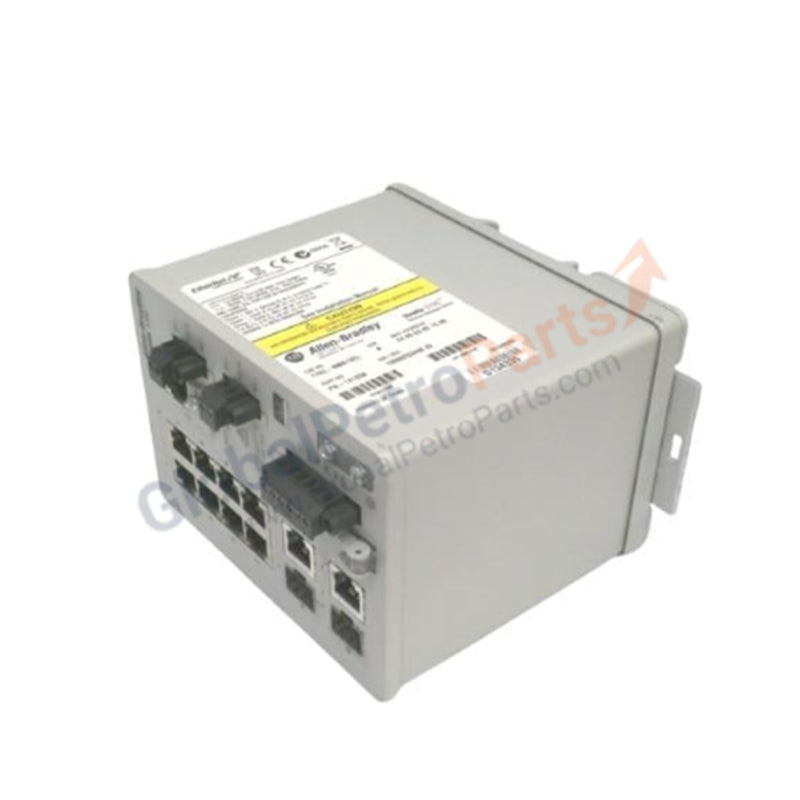

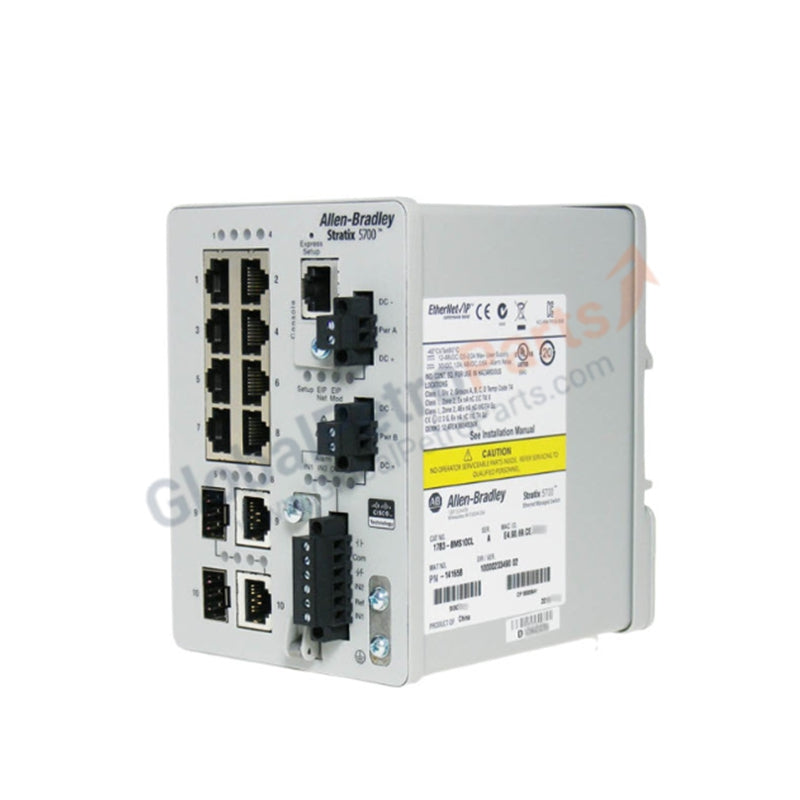

1783-BMS10CL | Allen-Bradley Stratix 5700 Managed Ethernet Switch

Description

The Allen-Bradley 1783-BMS10CL is a managed Ethernet switch from the Stratix 5700 series, designed to deliver reliable and secure industrial network connectivity. Built on Cisco technology, it provides advanced network management, diagnostics, and performance monitoring capabilities tailored for automation environments. This model supports a total of 10 ports, including 8 RJ45 copper ports and 2 combo ports for fiber or copper connections, enabling flexible network design.

With its ruggedized metal housing and wide DC input voltage range, the 1783-BMS10CL ensures dependable performance in challenging industrial settings. It is ideal for integrating real-time control, machine-level networking, and plant-wide Ethernet communications.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Product Line: Stratix 5700

• Model Number: 1783-BMS10CL

• Product Type: Managed Ethernet Switch

• Weight: 2.88 lbs (1.30 kg)

• Number of Ports: 10 total

• RJ45 Ports: 8 copper Ethernet ports

• Combo Ports: 2 ports (SFP or RJ45)

• Input Voltage Range: 12–48 V DC

• Supported Memory Card: 1784-SD1

• Mounting Type: DIN-rail or panel mount

• Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)

• Management Features: VLAN support, QoS, IGMP snooping, SNMP, and network diagnostics

Application Scenarios

The 1783-BMS10CL managed switch is ideal for applications that require reliable Ethernet-based industrial communication and real-time control. Typical use cases include:

• Manufacturing automation networks

• Process control systems in energy and utilities

• Material handling and packaging systems

• Machine-level Ethernet integration with PLCs and HMIs

Comparison with Similar Models

• 1783-BMS06TL: 6-port unmanaged model for smaller systems

• 1783-BMS10CL: 10-port managed version with combo port flexibility

• 1783-BMS20CA: 20-port model for high-density industrial networks

FAQs

Q1: Does the 1783-BMS10CL support redundant ring topologies?
A1: Yes, it supports Device Level Ring (DLR) and Rapid Spanning Tree Protocol (RSTP) for network redundancy.

Q2: What type of memory card is required for configuration storage?
A2: The switch uses the 1784-SD1 Secure Digital (SD) memory card.

Q3: Can this switch be integrated with Studio 5000 or FactoryTalk software?
A3: Yes, it supports integration and diagnostics through Studio 5000 Logix Designer and FactoryTalk View applications.
