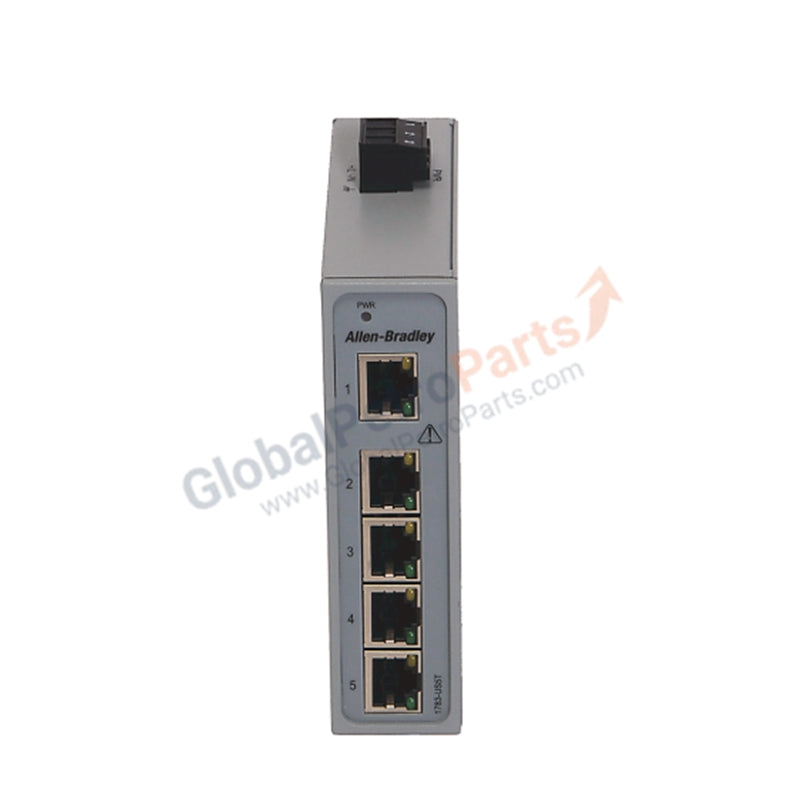

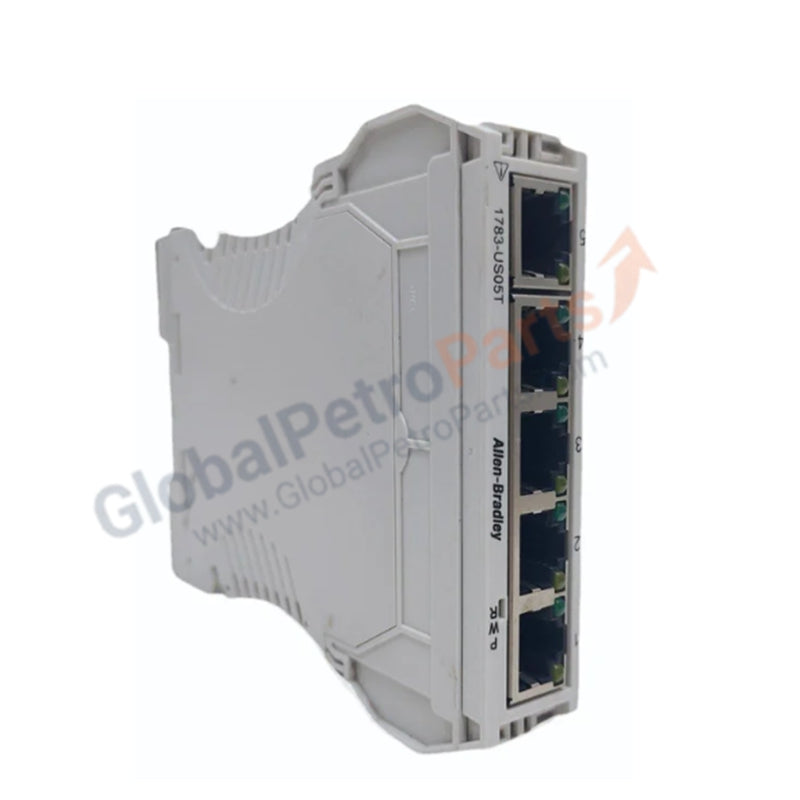

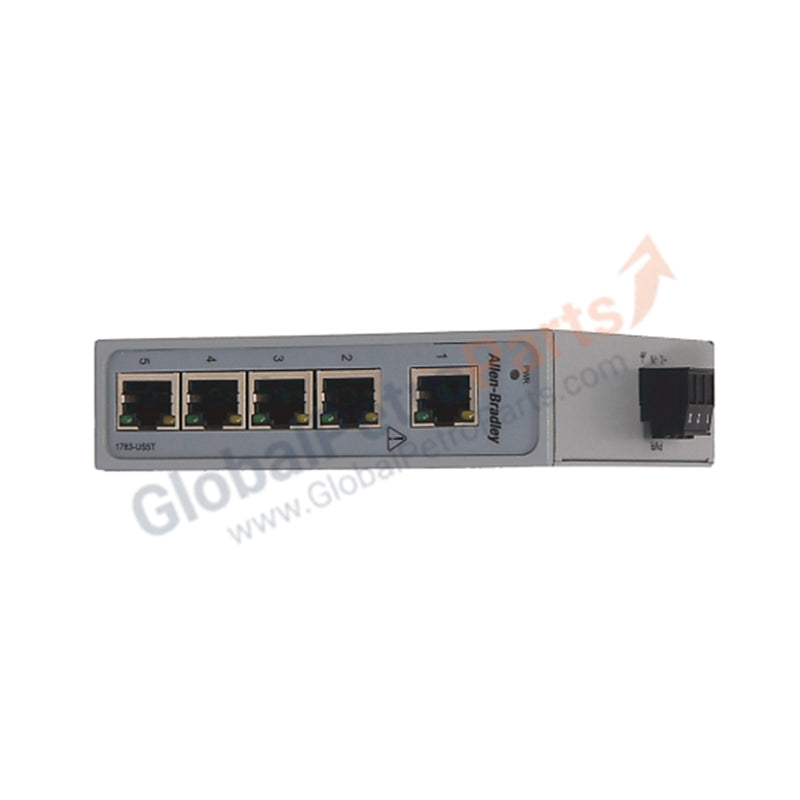

1783-US05T | Allen-Bradley Stratix 2000 5-Port Managed Ethernet Switch

Product Overview

The Allen-Bradley 1783-US05T serves as a compact, entry-level managed Ethernet switch designed specifically for the Stratix 2000 series. Providing 5 copper ports with 10/100 Mbps full/half duplex capabilities, this switch delivers essential network segmentation and traffic management for industrial automation systems. It supports flexible 10-35V DC or 10-24V AC power inputs, making it highly adaptable for integration into diverse machine-level control panels. We supply this item as a 100% Brand New, factory-sealed unit.

Technical Specifications

Engineering Advantages

Essential Managed Network Control
Unlike basic unmanaged switches, the 1783-US05T provides critical managed switch capabilities. It allows network engineers to configure VLANs, prioritize traffic using Quality of Service (QoS), and monitor network health. This level of control prevents network congestion and ensures time-sensitive industrial data—such as EtherNet/IP motion commands—reaches its destination without delay.

Flexible Industrial Power Integration
Engineered for global industrial applications, this switch accepts a wide range of input voltages, including 10-35V DC and 10-24V AC at 50/60 Hertz. This dual-voltage flexibility allows you to power the switch directly from standard machine control transformers or 24V DC power supplies, eliminating the need for dedicated power conditioning hardware.

Compact and Efficient Footprint
With a lightweight design weighing just 0.38 lbs (0.17 kg) and a low power dissipation of only 4 Watts, the 1783-US05T is perfect for space-constrained control cabinets. Its small form factor enables you to deploy network segmentation directly at the machine level without consuming valuable DIN rail space or generating excess heat inside the enclosure.

FAQs

Q: Is the 1783-US05T a managed or unmanaged switch?
A: The 1783-US05T is a managed Ethernet switch. It belongs to the Stratix 2000 series, which provides essential network management features like VLANs and traffic prioritization, unlike basic unmanaged switches.

Q: What is the network speed of the ports on this switch?
A: The 1783-US05T features 5 copper ports that support 10/100 Mbps network speeds with both full and half-duplex capabilities, making it ideal for standard industrial automation and control traffic.

Q: What type of power supply does this switch require?
A: This switch is highly versatile and accepts both 10-24 Volts AC and 10-35 Volts DC input power at 50/60 Hertz, allowing for seamless integration into various industrial control power systems.

Q: How much power does the 1783-US05T consume during operation?
A: The switch is highly energy efficient, consuming only 4 Watts of power with a maximum current draw of 400 mA, which helps minimize heat generation inside your control panel.
