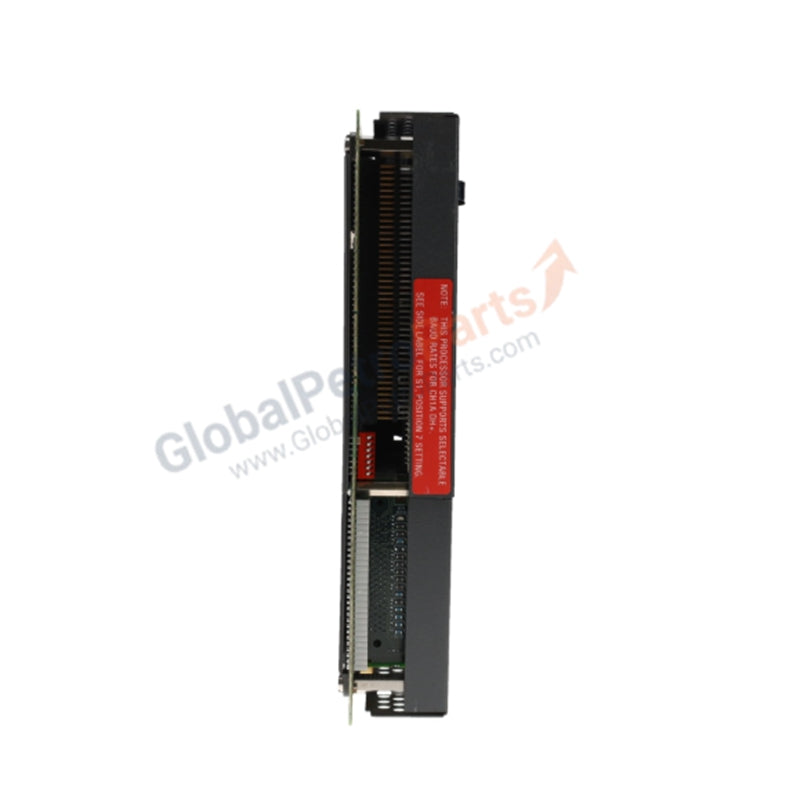

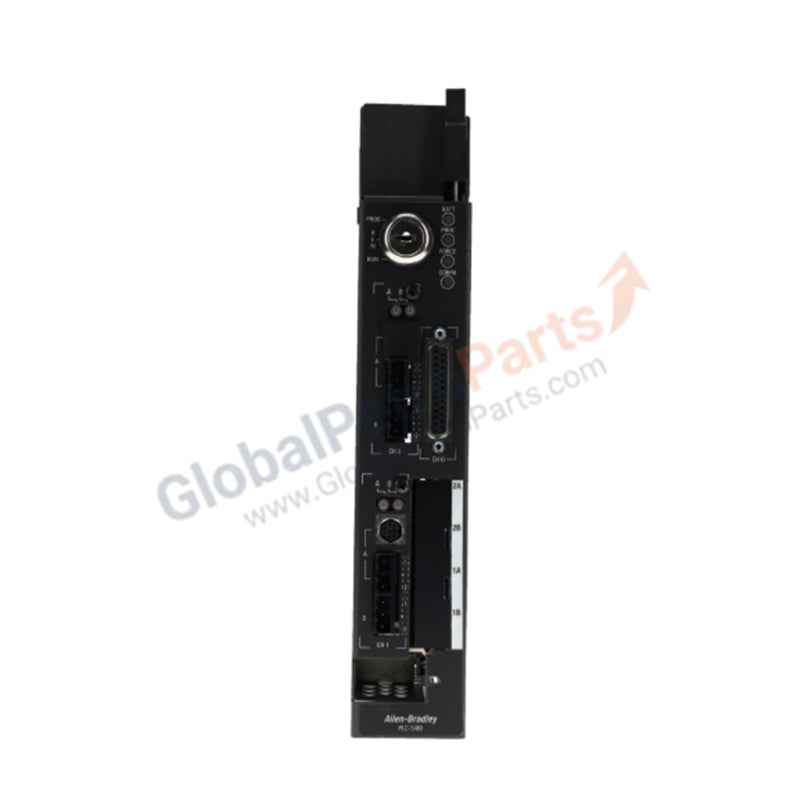

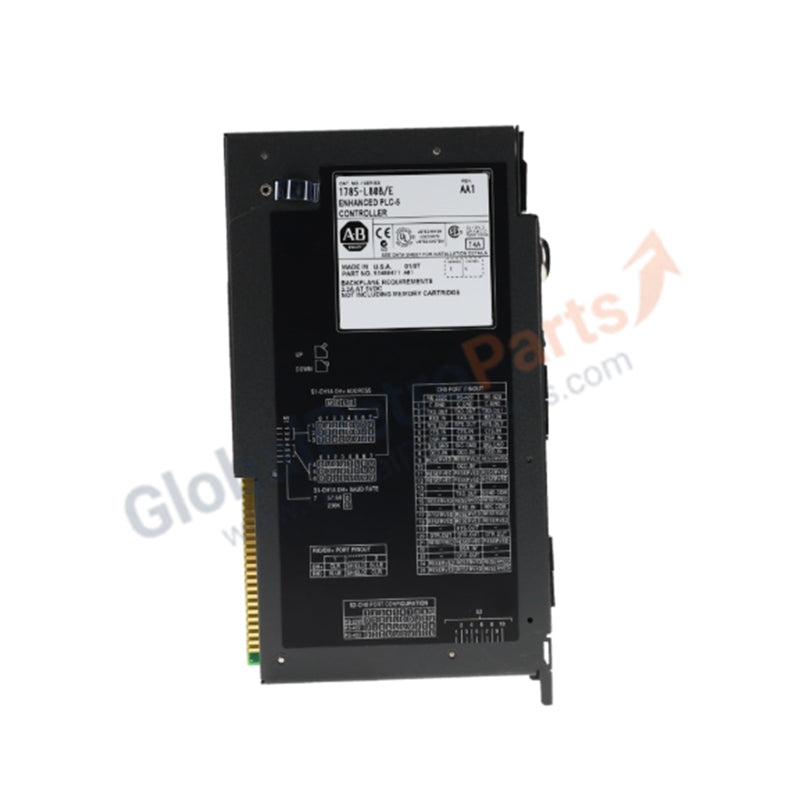

1785-L80B | Allen-Bradley | PLC-5/80 Controller

Configured for high-speed logic execution in distributed control networks, the Allen-Bradley 1785-L80B (1785-L80B PLC-5 Processor) provides direct physical/electrical execution. This hardware unit manages up to 100 Kilowords of user memory and utilizes a battery-backed static RAM architecture to facilitate complex command processing and remote I/O management across PLC-5 platform architectures.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1785-L80B utilizes deterministic backplane bus communication to synchronize state data across the PLC-5 rack environment. The controller facilitates Data Highway Plus (DH+) and Remote I/O (RIO) protocols for field-level data exchange, requiring adherence to cable impedance specifications to prevent signal reflection on the link. I/O scan performance is optimized based on the selected baud rate, ranging from 57.6 kbits/s to 230.4 kbits/s. Firmware flash compatibility and memory module revision states must be strictly aligned with the base processor to prevent checksum errors during the power-up sequence.

Frequently Asked Questions

Q: Does the 1785-L80B support hot-swapping during active operation?

A: No. The PLC-5/80 processor is not designed for removal or insertion under power (RIUP). Attempting to remove the module while the backplane is energized may result in hardware damage or uncontrolled state transitions in the I/O bus.

Q: How is the user memory maintained when the processor is powered down?

A: The module relies on a 1770-XYC battery for RAM data retention. For long-term non-volatile storage, a compatible 1785-series memory expansion module must be installed to ensure the control program is preserved during extended power loss.

Field Installation Guidelines

• Mounting Stability: Ensure the module is fully seated in the primary processor slot of the 1771 I/O chassis. Tighten top and bottom retaining screws to provide mechanical stability and ensure solid electrical contact with the backplane connector.
• Grounding and Shielding: Ensure the chassis backplane is connected to a common earth ground. All DH+ and RIO communication cables must use shielded, twisted-pair wiring, with the shield terminated at a single point to prevent ground loops.
• Battery Maintenance: The 1770-XYC battery should be replaced at scheduled intervals. Ensure the new battery is connected securely to the processor header before de-energizing the chassis to prevent memory loss.
• Operating Environment: Install the module in an industrial enclosure that maintains ambient temperatures between 0 deg C and 60 deg C with adequate airflow to prevent heat accumulation around the CPU circuitry.
