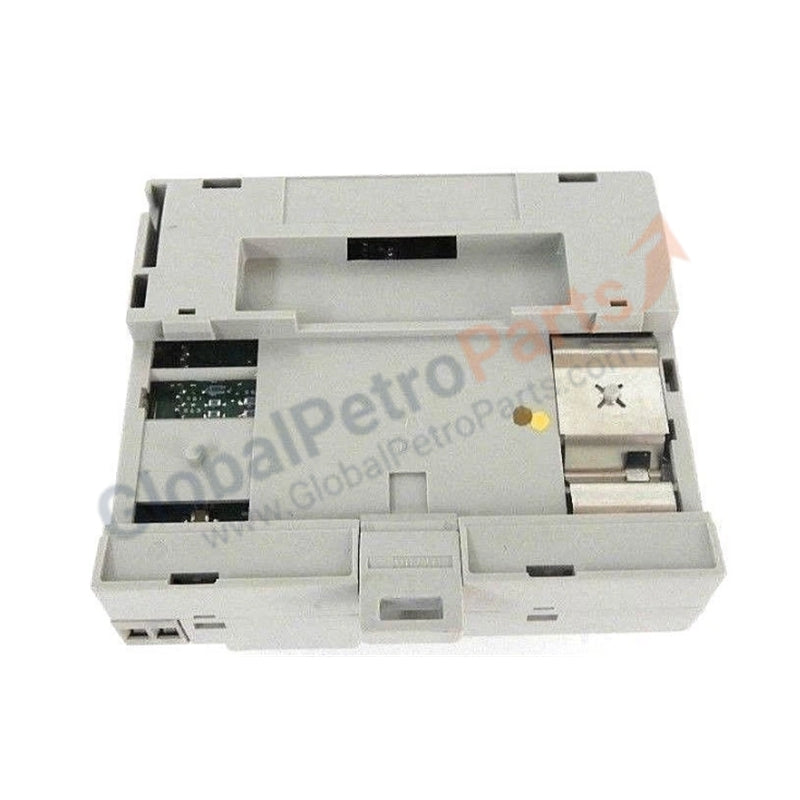

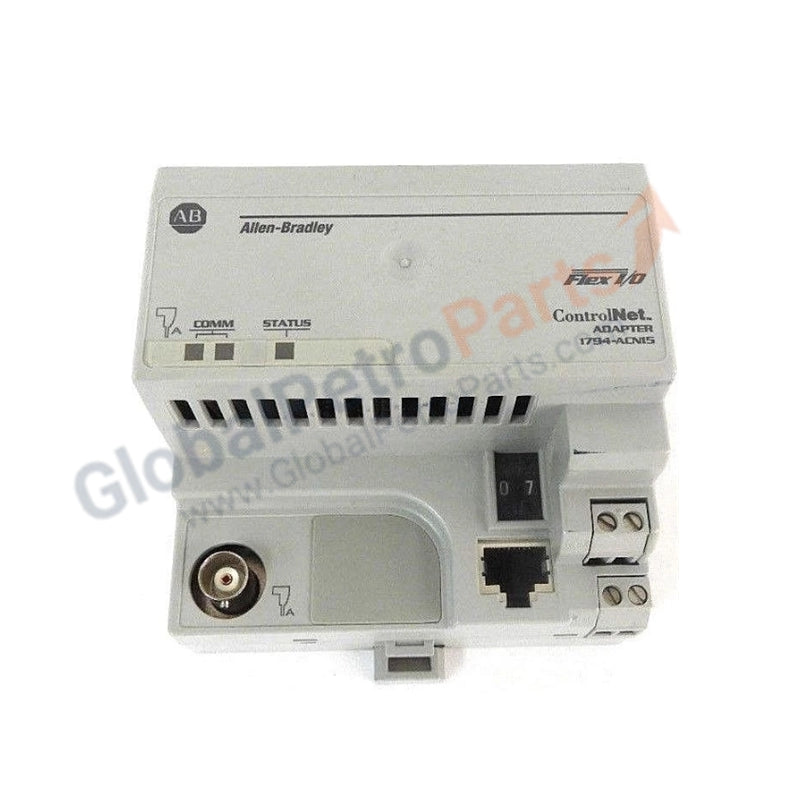

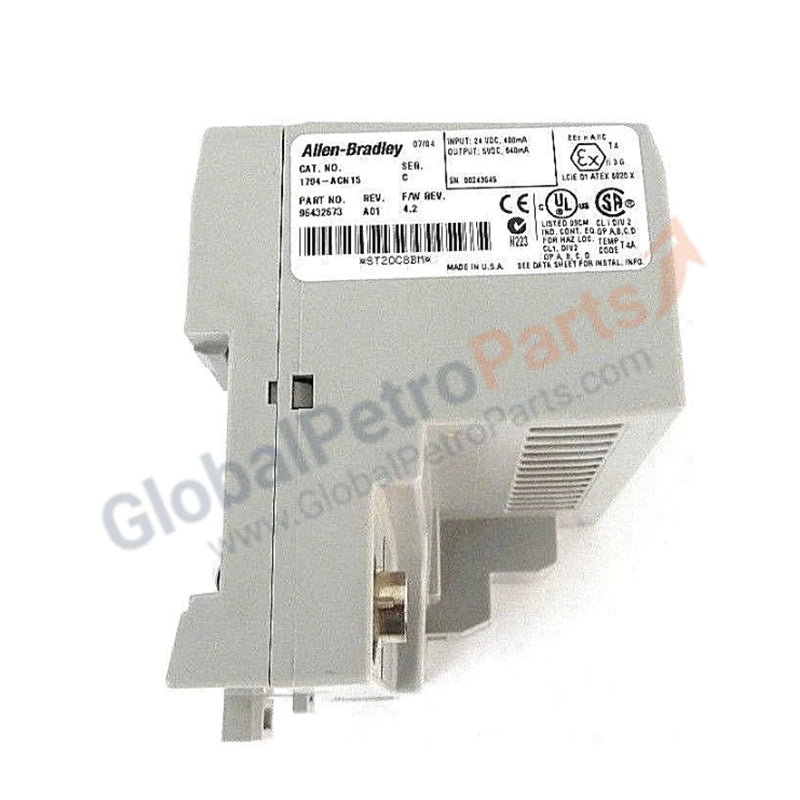

1794-ACN15 | Allen Bradley Flex I/O ControlNet Adapter

Product Overview

The Allen Bradley 1794-ACN15 functions as a high-performance communication interface within the Flex I/O system. This 100% brand new ControlNet adapter bridges the gap between the ControlNet network and up to eight Flex I/O modules. It manages data exchange and provides the necessary power to the backplane, ensuring seamless integration of field signals into your broader control architecture.

Technical Specifications

• Manufacturer: Allen Bradley

• Series: Flex I/O 1794

• Module Type: ControlNet Adapter

• I/O Module Capacity: Supports up to 8 modules

• Communication Rate: 5 Mbps

• Input Supply Voltage: 19.2 to 31.2 Volts DC

• Input Current: 400 mA

• Output Supply (Internal): 640 mA @ 5 Volts DC

• Inrush Current: 14 Amps for 2 ms

• Power Dissipation: 3.4 Watts maximum @ 19.2 Volts DC

• Operating Temperature: -25 to 55 °C (-13 to 131 °F)

• Operating Shock: 30 G

• Weight: 0.50 lbs (0.23 kg)

Engineering Advantages

• Simplified Node Configuration: The integrated node selection dials allow engineers to assign network addresses quickly without requiring complex software tools during the initial physical setup.

• Space-Efficient Modular Design: The 1794-ACN15 supports a small footprint, enabling high-density I/O configurations in cramped control cabinets where traditional rack-based systems fail to fit.

• Robust Signal Integrity: ControlNet technology provides deterministic, repeatable data delivery. This module maintains consistent 5 Mbps throughput, which eliminates network jitter in time-critical automation processes.

• Extreme Environment Resilience: With a 30 G shock rating and a wide operating temperature range, this adapter performs reliably in heavy-duty industrial environments subject to mechanical vibration and thermal fluctuations.

FAQs

• Does this unit come in original packaging?

  Yes, we provide only 100% brand new and original Allen Bradley hardware in factory-sealed packaging.

• How do I set the network address for the 1794-ACN15?

  Use the two rotary switches located on the front of the module to select the unique ControlNet node number (01-99) before powering the system.

• What is the maximum number of I/O modules this adapter can manage?

  A single 1794-ACN15 adapter supports a maximum of 8 Flex I/O modules connected via the backplane.

• Does the adapter provide power to the attached I/O modules?

  The adapter converts the 24V DC input into 640 mA of 5V DC backplane power to drive the internal logic of the connected modules.
