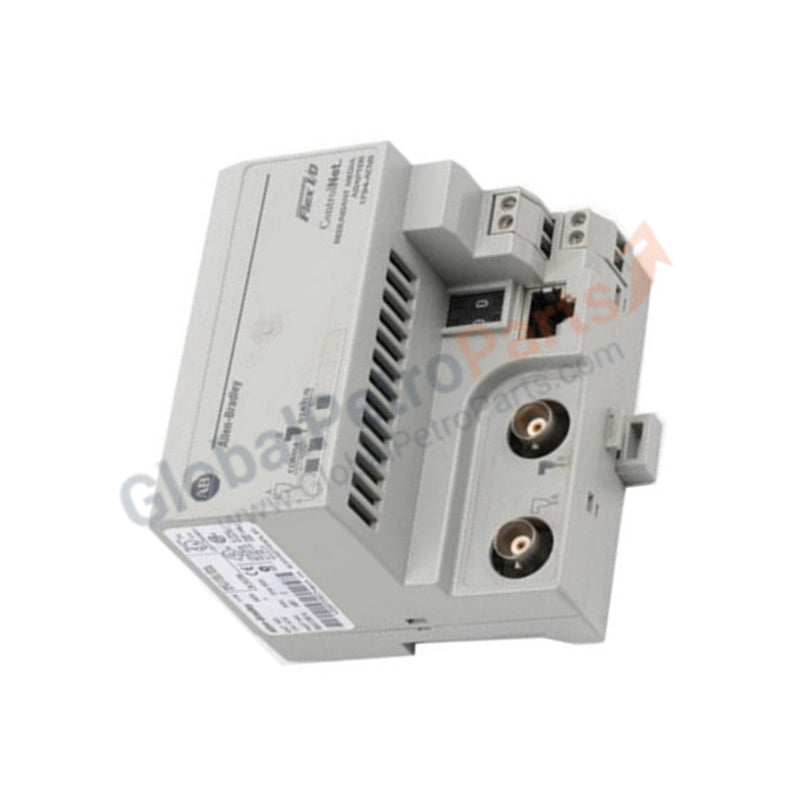

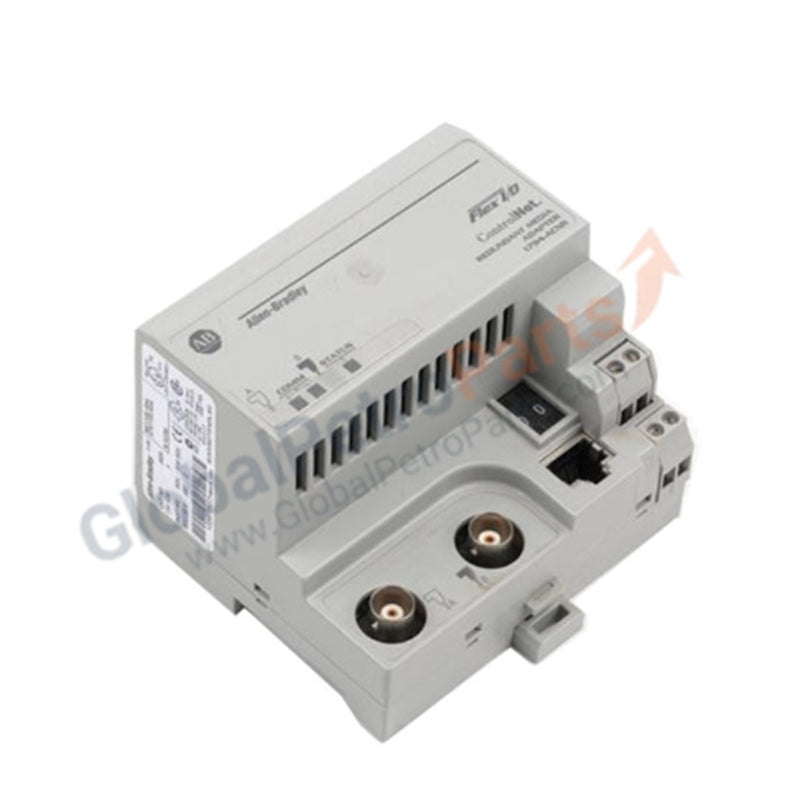

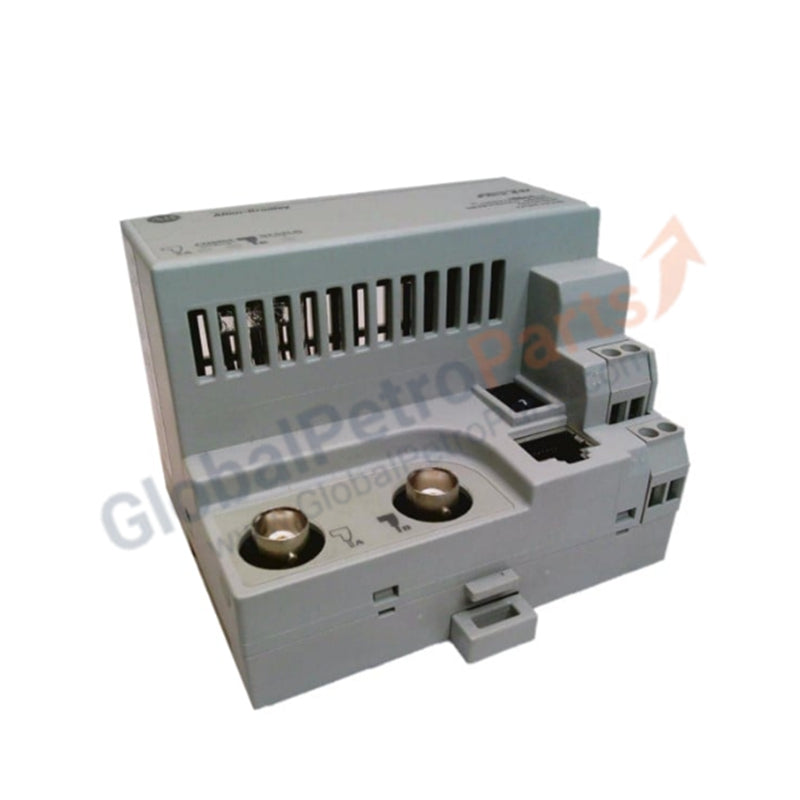

1794-ACNR | Allen-Bradley | Flex I/O ControlNet Redundant Media Adapter

Product Overview

The Allen-Bradley 1794-ACNR serves as the critical communication interface between a ControlNet network and Flex I/O modules. This adapter manages high-speed data transfer and provides a gateway for I/O signals in distributed control architectures. By utilizing dual BNC connectors, this module supports redundant media paths, ensuring your automation system maintains continuous operation even if one cable segment fails. We offer this unit as 100% Brand New and Original to guarantee peak performance in mission-critical applications.

Technical Specifications

The 1794-ACNR provides robust networking capabilities for complex industrial environments:

Engineering Advantages

The 1794-ACNR addresses several high-stakes industrial pain points through its specific hardware design:

• Redundant Path Reliability: The "R" designation signifies redundant media support. Two separate ControlNet cables connect to the Comm A and Comm B ports. If a cable breaks or a signal drops on one path, the adapter automatically switches to the secondary line without interrupting process data.

• High-Inrush Management: The module handles an inrush current of 23A for 2 milliseconds. This robust power circuit design prevents nuisance tripping of power supplies during system startup.

• Modular Expansion: The adapter drives up to 8 Flex I/O modules, delivering 640 mA to the Flexbus. This allows engineers to scale I/O density on a single network node, reducing the cost per point.

• Harsh Environment Resilience: With IEC 60068-2-27 shock ratings and an operating range down to -20 °C, this adapter survives in non-climate-controlled cabinets and high-vibration machinery zones.

FAQs

How do the LED indicators assist in troubleshooting?

The 1794-ACNR features three bi-color (red/green) LEDs: Comm A, Comm B, and I/O Status. These indicators instantly signal whether a specific network path has failed, if the adapter has established a connection with the scanner, or if an internal module fault exists, significantly reducing downtime during diagnostics.

What cable type does the 1794-ACNR require?

This module utilizes standard ControlNet coax media. Ensure you use 12 AWG (3.31 mm²) stranded cable with a maximum insulation thickness of 1.2 mm to maintain signal integrity at the 5 Mbps transfer rate.

Can I install this module on a standard DIN rail?

Yes. The 1794-ACNR snaps directly onto a standard 35mm DIN rail. For high-vibration environments, we recommend using end anchors to prevent lateral movement along the rail.

Is this unit compatible with non-redundant ControlNet systems?

Yes. You can use the 1794-ACNR in non-redundant applications by connecting a single cable to Port A; however, the redundancy benefits only activate when both ports connect to separate network media.
