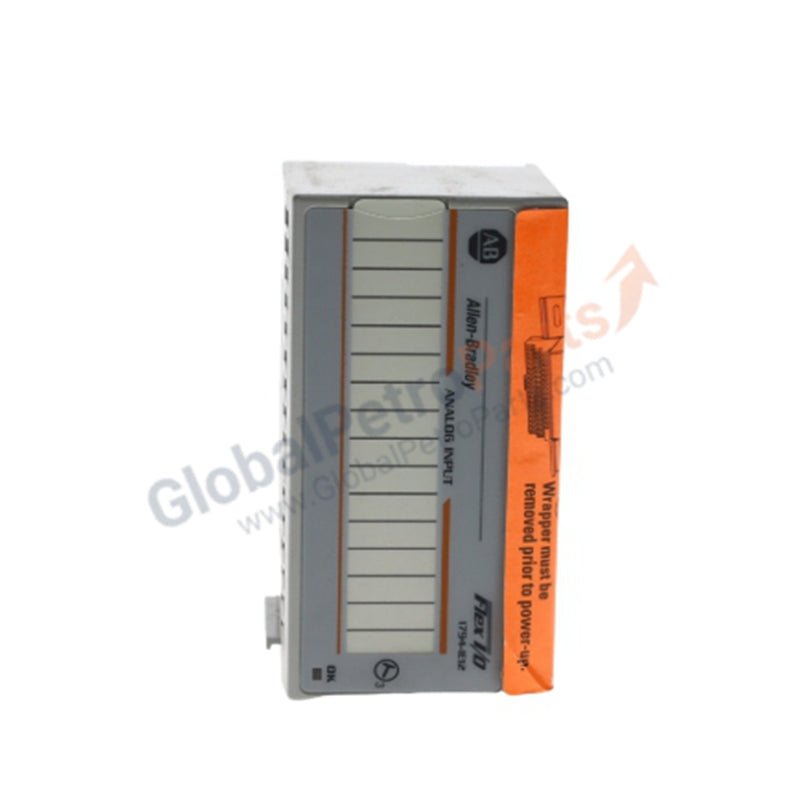

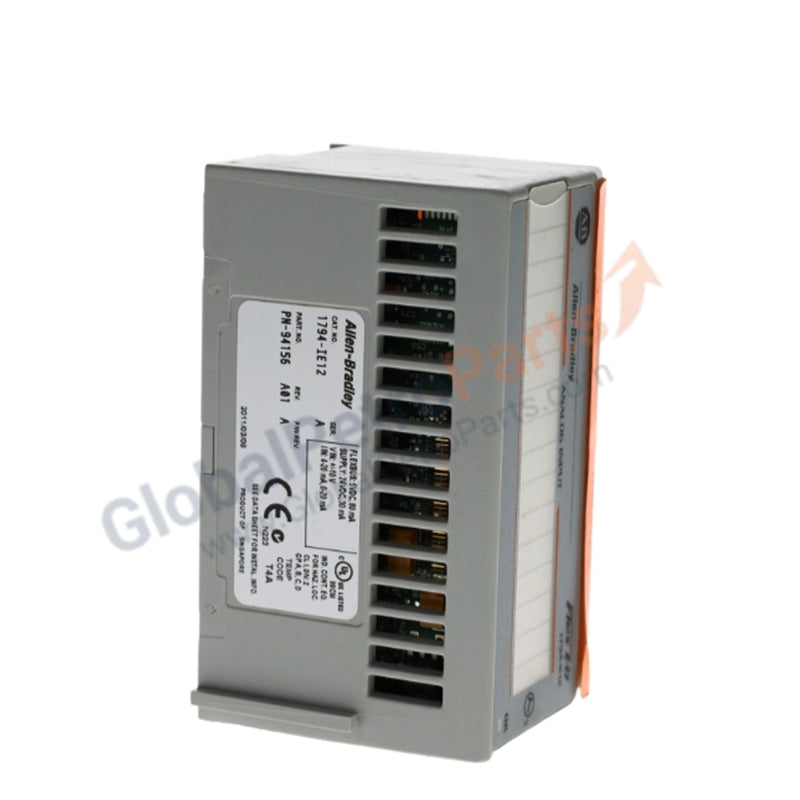

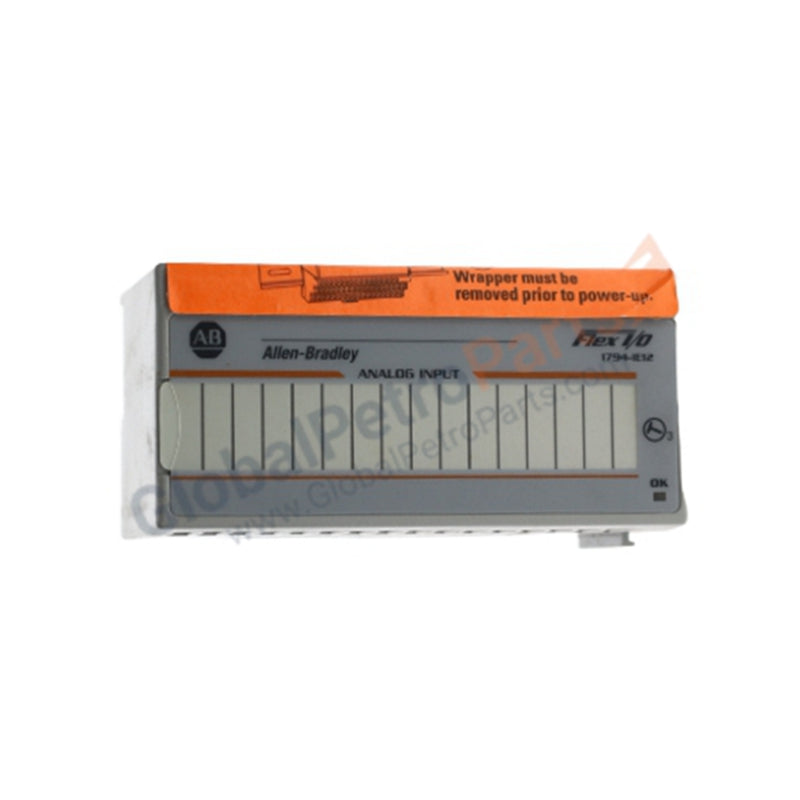

1794-IE12 | Allen-Bradley | FLEX I/O High-Density Analog Input Module

Product Overview

The Allen-Bradley 1794-IE12 functions as a high-density analog interface for the FLEX I/O platform, providing 12 single-ended input channels in a compact, modular footprint. This module eliminates the need for large, centralized I/O racks by enabling remote data collection for voltage and current signals. We supply this unit in 100% Brand New, original factory condition, ensuring your distributed control architecture maintains maximum signal fidelity and uptime.

Technical Specifications

Engineering Advantages

• High-Density Channel Mapping: The 1794-IE12 packs 12 analog inputs into a single FLEX I/O module width. This high-density design significantly reduces DIN rail space requirements and lowers the overall cost per point in large-scale sensor deployments.

• Rapid Multi-Channel Conversion: The module updates all 12 channels within 8.0 ms. This fast conversion rate ensures that your control logic receives near real-time data from pressure transducers, flow meters, and temperature transmitters, minimizing loop latency.

• Versatile Signal Compatibility: Engineers can configure individual channels for either current (mA) or voltage (V) signals. This flexibility allows a single 1794-IE12 to manage diverse field devices, simplifying your spare parts inventory and hardware standardization.

• Rugged Environmental Resistance: Built to withstand industrial stress, the module handles up to 5g of vibration and 30g of operating shock. The 50V continuous isolation protects the backplane from field-side electrical noise, ensuring stable communication even in interference-heavy environments.

• Efficient Thermal Profile: The unit dissipates only 1.2W at maximum voltage. This low power consumption prevents heat buildup in small remote enclosures, extending the life of adjacent communication adapters and power supplies.

FAQs

• Does this module require a specific terminal base for grounding?

  Yes. Allen-Bradley recommends using the 1794-TB3G or 1794-TB3GS terminal bases. These bases provide the necessary grounding bolts for cable shields, which is critical for maintaining 16-bit resolution in noisy environments.

• How do the status indicators help with troubleshooting?

  The module features a bi-color (Green/Red) LED. A solid green light indicates normal operation and power, while red signals a module-level fault or a configuration error, allowing for instant visual diagnostics without a laptop.

• Can I mix voltage and current inputs on the same 1794-IE12 module?

  Yes. The module supports a mix of 0–20mA, 4–20mA, and ±10V signals. You define these ranges during the I/O configuration in your programming software (e.g., Studio 5000 or RSLogix 500).

• Is this product a factory-original unit or a surplus item?

  We guarantee the 1794-IE12 is 100% Brand New. It ships in its original Allen-Bradley factory packaging with all security seals intact, ensuring the highest reliability for your mission-critical processes.
