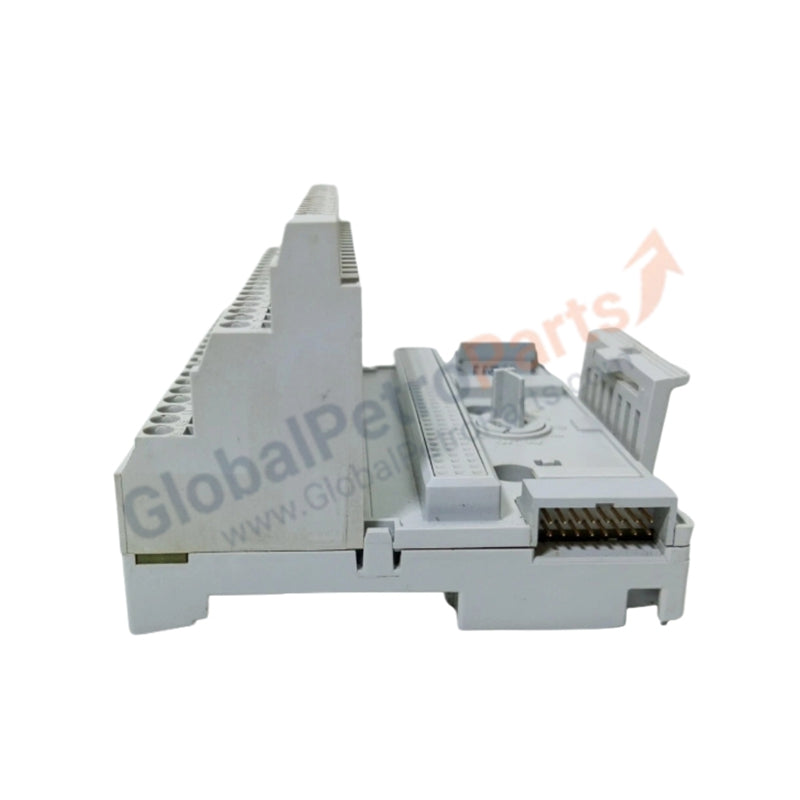

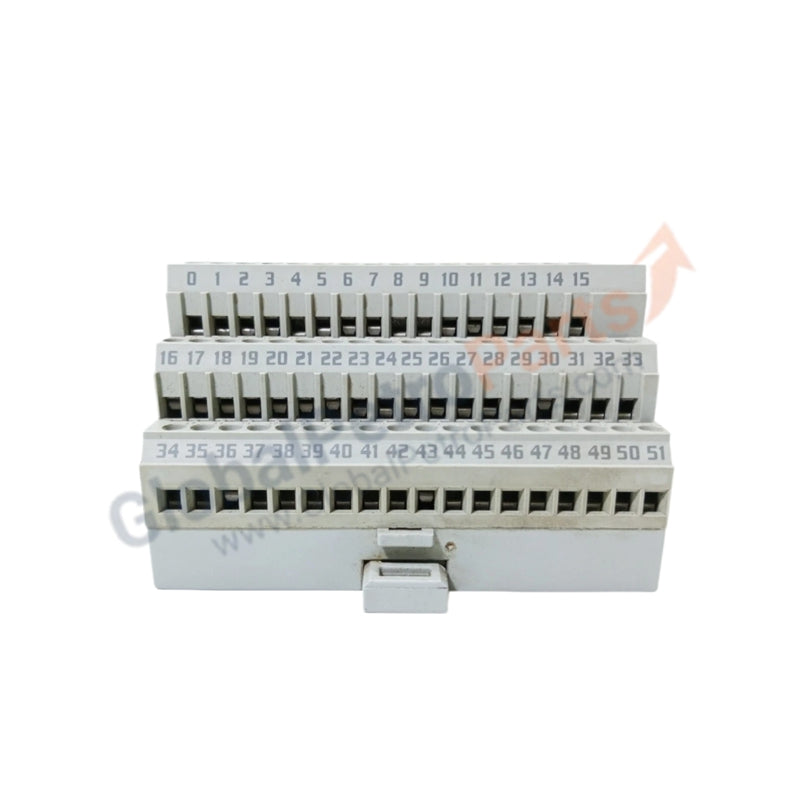

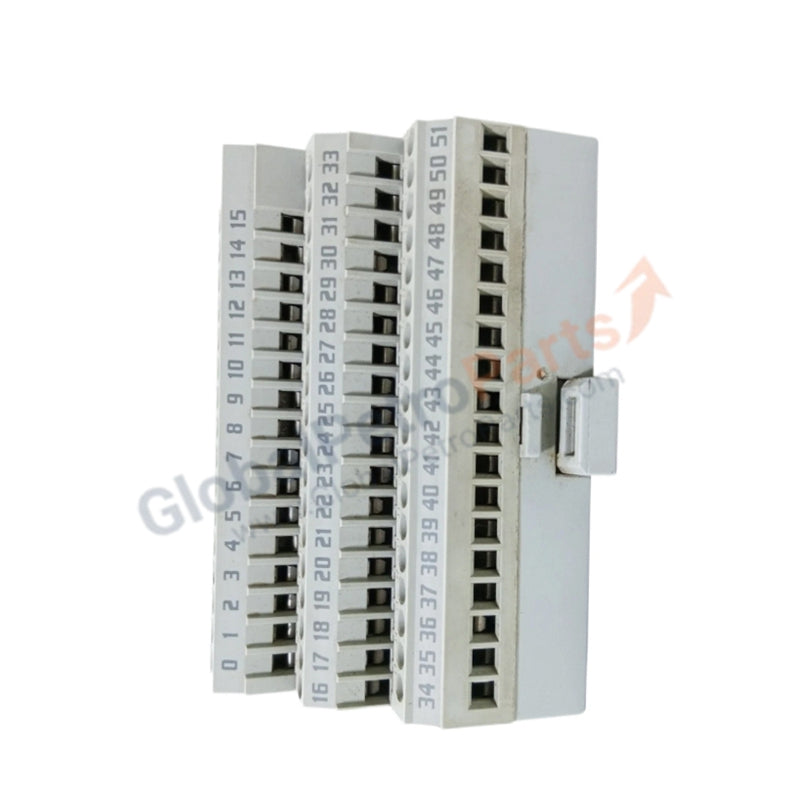

1794-TB32 | Allen Bradley FLEX I/O 32-Point Terminal Base

Product Description

The Allen Bradley 1794-TB32 is a FLEX I/O terminal base designed to support 32 input/output points with cage clamp connections. Built for reliability and ease of installation, it provides eight common terminals and eight +V terminals, ensuring efficient wiring for distributed control systems. Its DIN rail mounting and IP20 rating make it suitable for industrial environments where compact and secure wiring solutions are required.

Technical Specifications

• Manufacturer: Allen Bradley

• Product Line: FLEX I/O

• Part Number: 1794-TB32

• Product Type: Terminal Base

• Category: Panel Accessories

• Subcategory: Terminal Block / Wiring Device

• Weight: 0.50 lbs (0.23 kg)

• Wire Gauge Supported: 24–16 AWG

• Input/Output Capacity: 32 points

• Common Terminals: 8

• Output Terminals: 8 +V terminals

• Terminal Style: Cage clamp connection

• Mounting Type: DIN rail installation

• IP Rating: IP20

Application Scenarios

• Designed for FLEX I/O systems requiring compact terminal bases

• Suitable for distributed control systems and modular automation setups

• Provides secure cage clamp wiring for industrial panels

FAQ

Q: How many I/O points does the 1794-TB32 support?  A: It supports 32 input/output points.

Q: What type of wiring connection is used?  A: Cage clamp terminals for secure and reliable wiring.

Q: What is the IP rating of the terminal base?  A: The module is rated IP20, suitable for protected industrial environments.
