193-DNCT | Allen-Bradley DeviceNet Configuration Terminal with 193-CB1 Cable

Functional Utility and Scope

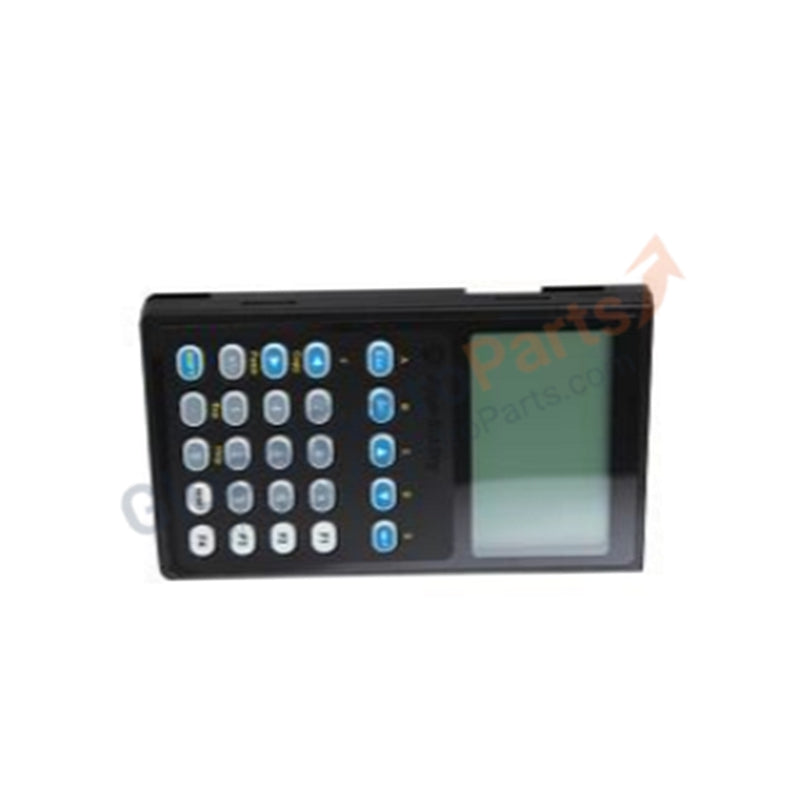

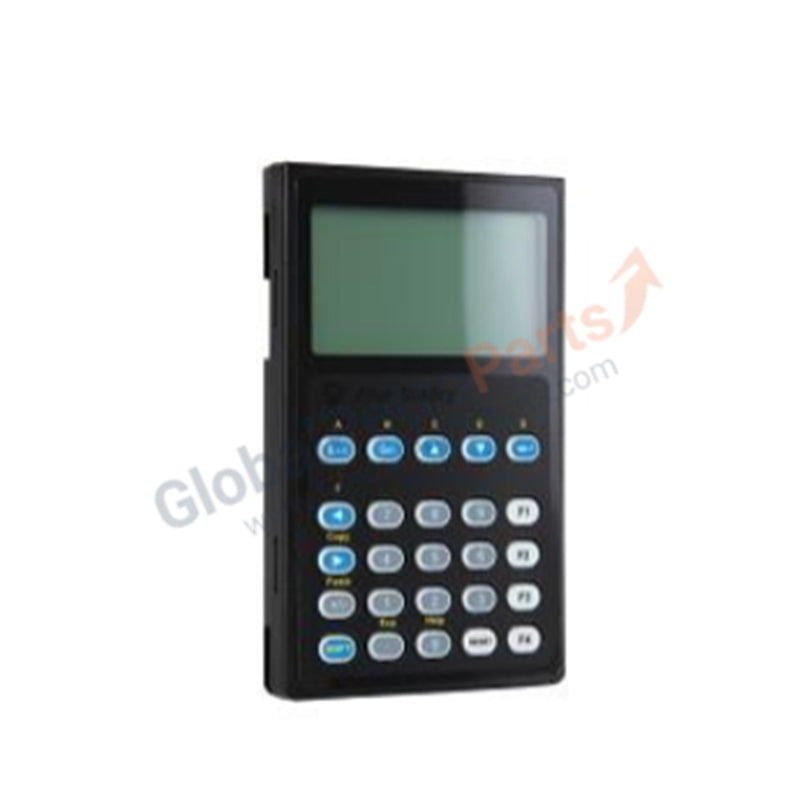

The 193-DNCT is a handheld configuration tool engineered for direct interaction with intelligent devices on a DeviceNet network. This terminal allows maintenance personnel and engineers to commission, configure, and troubleshoot DeviceNet-compatible hardware without requiring a full workstation or laptop. It is specifically designed to interface with E3 and E3 Plus Electronic Overload Relays, as well as ArmorStart distributed motor controllers. By providing a portable window into device parameters and diagnostic data, the 193-DNCT simplifies the management of motor protection and control objects across the factory floor.

Technical Characteristics

• Manufacturer: Allen-Bradley / Rockwell Automation

• Model Number: 193-DNCT

• Device Type: Portable Handheld Configuration Terminal

• Network Protocol: DeviceNet

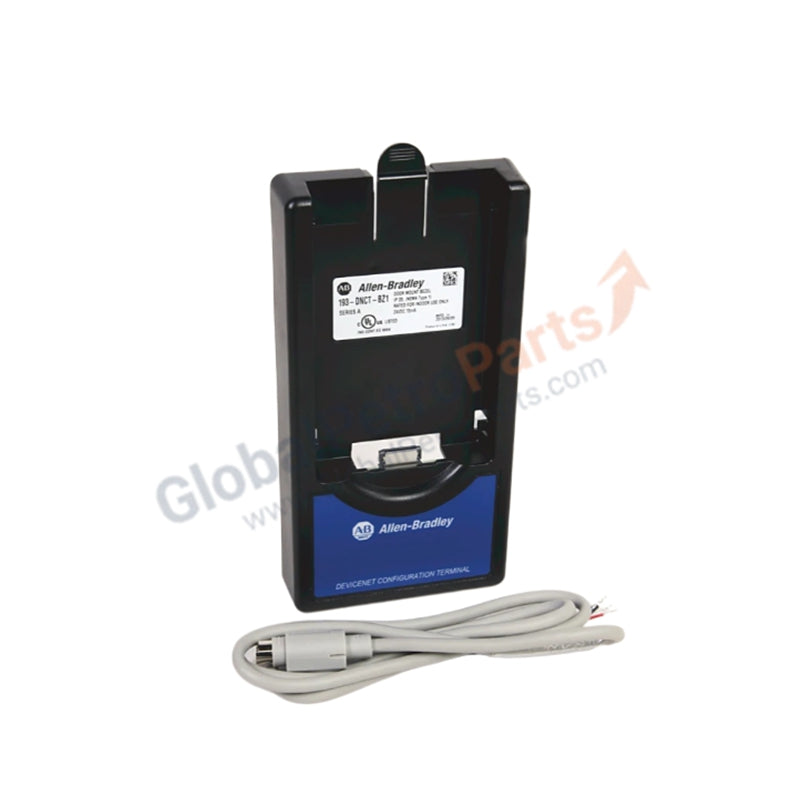

• Included Accessories: 1-meter 193-CB1 communication cable

• Compatibility: E3/E3 Plus (193-EC), 592-EC Overload Relays, and ArmorStart controllers

• Interface Capabilities: Parameter editing, status monitoring, and node address assignment

• Power Source: Powered via the DeviceNet network connection

• Display: Integrated digital screen for real-time data visualization

• Input Interface: Tactile keypad for navigation and value adjustment

• Shipping Weight: Approximately 0.23 kg (0.50 lbs) — Note: Actual weight exceeds typical accessory cable estimates due to the terminal housing.

Installation and Field Application

The 193-DNCT is utilized during the initial setup phase or during emergency maintenance to perform "on-the-fly" adjustments. It connects via the integrated port on compatible motor starters and relays using the provided 193-CB1 cable. This allows for the modification of trip classes, current ratings, and network addresses (MAC IDs) directly at the motor control center (MCC) or machine mount location. Its rugged, compact design is intended for industrial use, ensuring reliability in environments where traditional computing hardware is impractical.

Frequently Asked Questions

Does the 193-DNCT require an external battery or power supply?No, the terminal draws its necessary operating power directly from the DeviceNet network through the communication cable once connected to an active device.

Can this terminal be used to configure non-Allen-Bradley DeviceNet devices?The 193-DNCT is optimized for Rockwell Automation objects. While it may see other nodes on the network, full parameter editing is primarily supported for the 193-EC, 592-EC, and ArmorStart series.
