193-EIO-63-24D | Allen-Bradley E300 Control Module

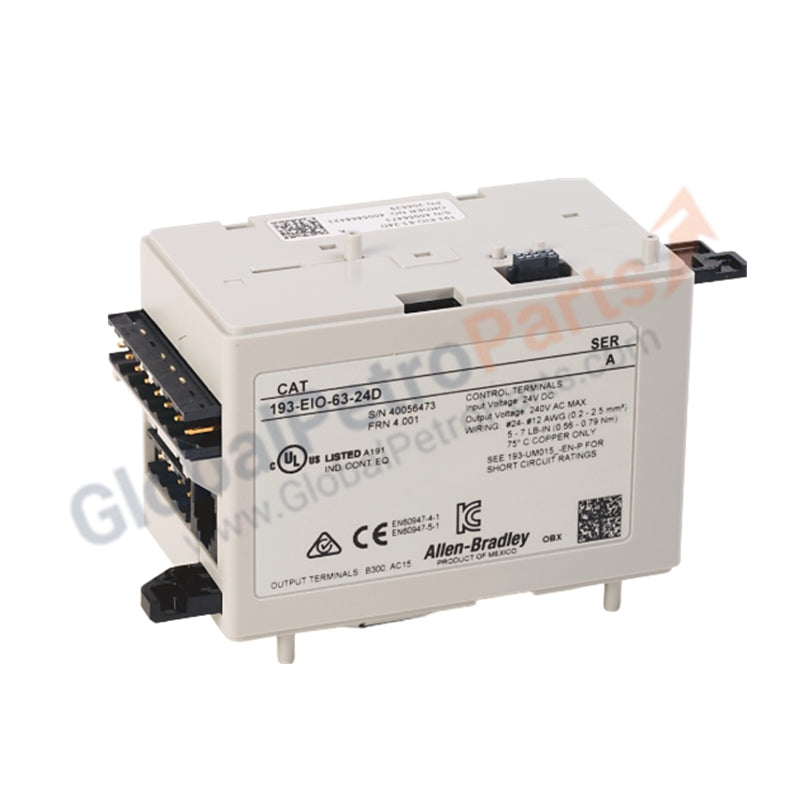

Configured for discrete signal monitoring and relay control within E300 overload relay systems, the Allen-Bradley 193-EIO-63-24D (193-EIO-63-24D I/O Only Control Module) provides direct physical and electrical execution of I/O expansion tasks.

Hardware Specifications

Industrial Control and Deterministic Networks

The 193-EIO-63-24D integrates with the E300 system to provide additional I/O density scaling. The module communicates through the established system bus, ensuring that input and output state transitions are processed within the deterministic network cycles of the host controller. Firmware flash compatibility is managed via the E300 communication module interface, allowing for integrated system updates and consistent operation within the Profinet or EtherNet/IP architecture.

Frequently Asked Questions

Q: Does this control module support stand-alone operation without an E300 host?

A: No. The 193-EIO-63-24D is an I/O expansion module designed specifically to interface with the E300 electronic overload relay base. It requires a host communication module to process and transmit I/O data.

Q: Are the relay outputs individually isolated?

A: The outputs are rated for standard control logic switching. Users must verify the inductive load limits and contact ratings as defined by the E300 system specifications to ensure appropriate protection for the relay contacts.

Field Installation Guidelines

• Mounting: Ensure the control module is securely snapped onto the E300 system bus connector. Verify that the latching mechanism is fully engaged to maintain electrical continuity between the expansion module and the main relay assembly.
• Wiring: Terminate 24 VDC control wiring according to the E300 terminal assignment map. Use appropriately sized ferrules for stranded wires to ensure low-resistance connections and prevent loose terminations under vibration.
• Grounding: While the module is typically grounded through the system bus, ensure the overall E300 assembly is mounted on a properly bonded DIN rail or backplane. Maintain physical separation between the 24 VDC control circuits and high-voltage motor power leads to prevent electromagnetic interference.
• Configuration: Following physical installation, use the system configuration software to map the additional 6 inputs and 3 outputs into the controller's I/O table. Verify link status in the network diagnostic view to confirm proper communication with the expansion module.
