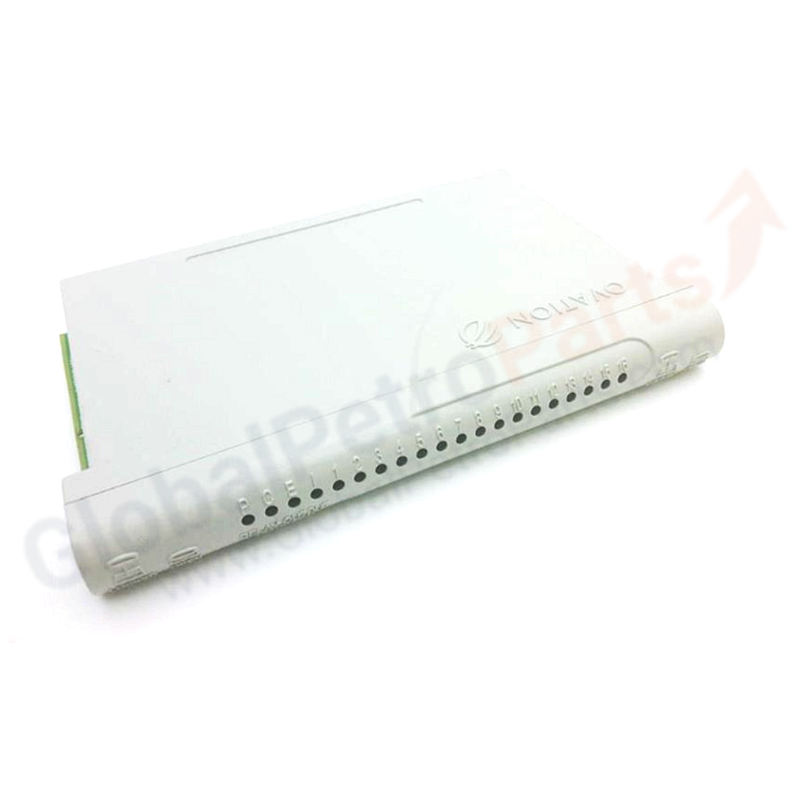

1C31219G01 | Emerson Ovation Relay Output Module

Overview

The Emerson 1C31219G01 is a Relay Output Module for the Ovation™ distributed control system. It provides discrete relay outputs for controlling field devices such as valves, motors, pumps, and alarms in industrial automation applications.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)
• Model: 1C31219G01
• Type: Relay Output Module
• Channels: 16 discrete relays (per majority of sources); 8 solid-state relays (per PLCMasters)
• Relay Contact Rating: 5 A @ 250 VAC / 30 VDC (per MaxAutoLand)
• Contact Type: SPDT (Single Pole Double Throw) (per MaxAutoLand); Form C (per xydplcdcs.com)
• Output Voltage (per PLCMasters): 24–240 VAC/VDC
• Output Current (per PLCMasters): 10 A
• Coil Voltage: 24 VDC nominal
• Response Time: 5 ms typical (per MaxAutoLand); ≤10 ms (per xydplcdcs.com)
• Isolation Voltage: 1500 VAC between channels (per MaxAutoLand); 2000 VDC (per xydplcdcs.com)
• Weight: ~180 – 450 g

Environmental & Safety Ratings

• Operating Temperature: 0 °C to +60 °C (per MaxAutoLand); −40 °C to +70 °C (per xydplcdcs.com)
• Storage Temperature: −40 °C to +85 °C
• Relative Humidity: 5 % – 95 % non-condensing

Key Features

• High-density relay outputs for discrete control applications
• Individual channel isolation for safe field device operation
• LED indicators for power, status, and relay activity
• Compatible with 1C31223G01 Relay Output Base for terminal connections

FAQ

Q: How many relay outputs does this module provide?
A: Supplier data conflicts. Most sources list 16 channels; PLCMasters lists 8. Verify your specific module revision and system requirements.

Q: What base module do I need?
A: The 1C31219G01 relay module pairs with the 1C31223G01 Relay Output Base for field wiring termination.

Q: Can this module be replaced without shutting down the system?
A: Yes, Emerson designs Ovation modules for hot-swappable replacement in many configurations. Verify your chassis supports hot-swap before attempting online replacement.

Installation Guidelines

1. Install the module into an available Ovation I/O rack slot.
2. Pair with the 1C31223G01 Relay Output Base for field wiring.
3. Connect relay output wiring per the system diagram and load requirements.
4. Verify relay operation via Ovation diagnostics and physical load testing.

Selection Tips

• Select 1C31219G01 for discrete relay output control in Ovation systems.
• Verify channel count (8 vs. 16) against your system BOM before ordering.
• Confirm load current and voltage ratings match your field devices.
