20-HIM-C6S PowerFlex Human Interface Module | Allen-Bradley

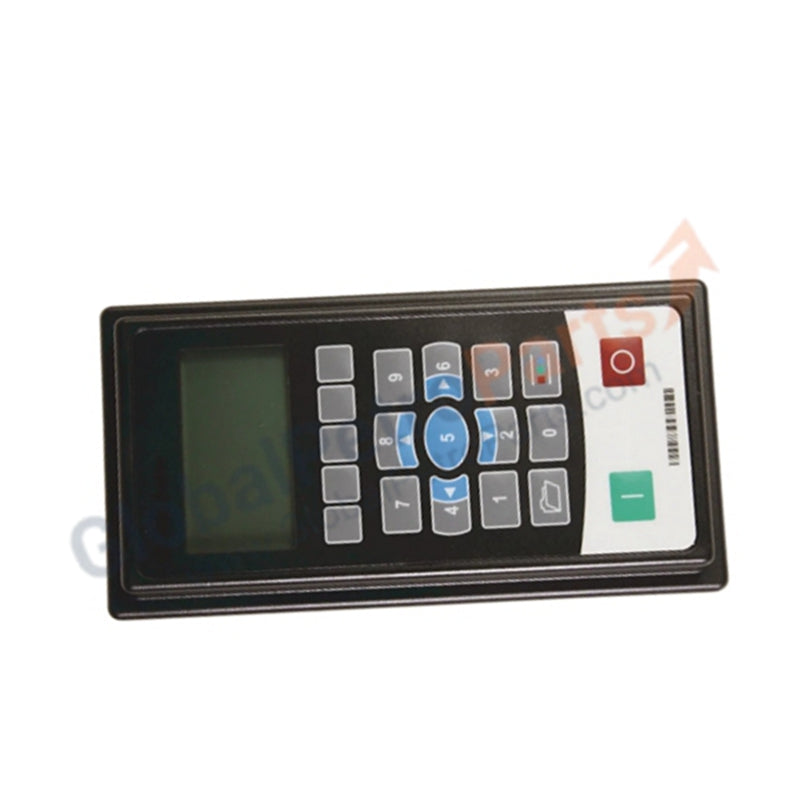

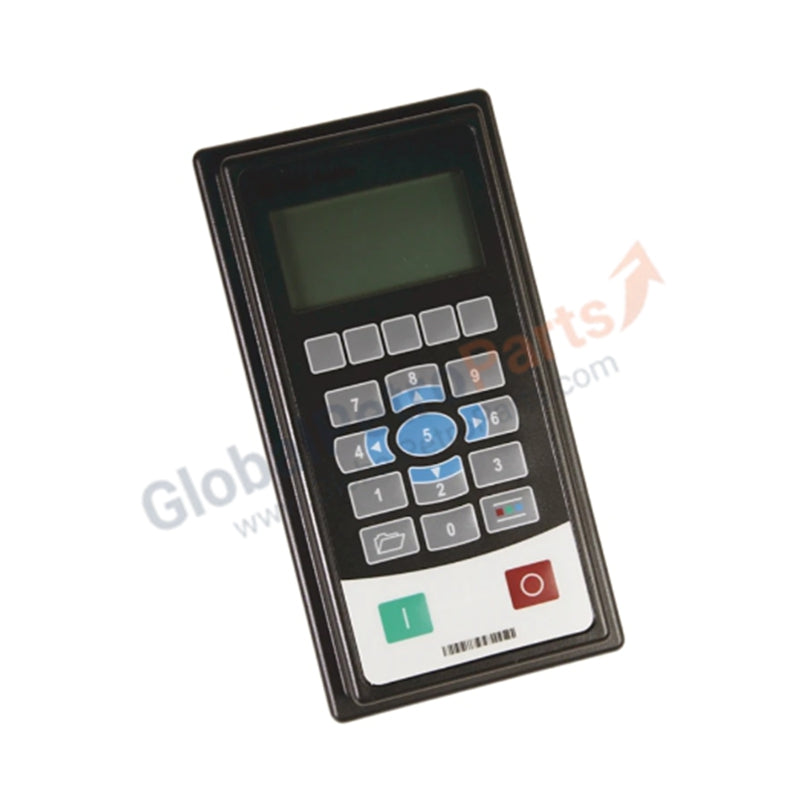

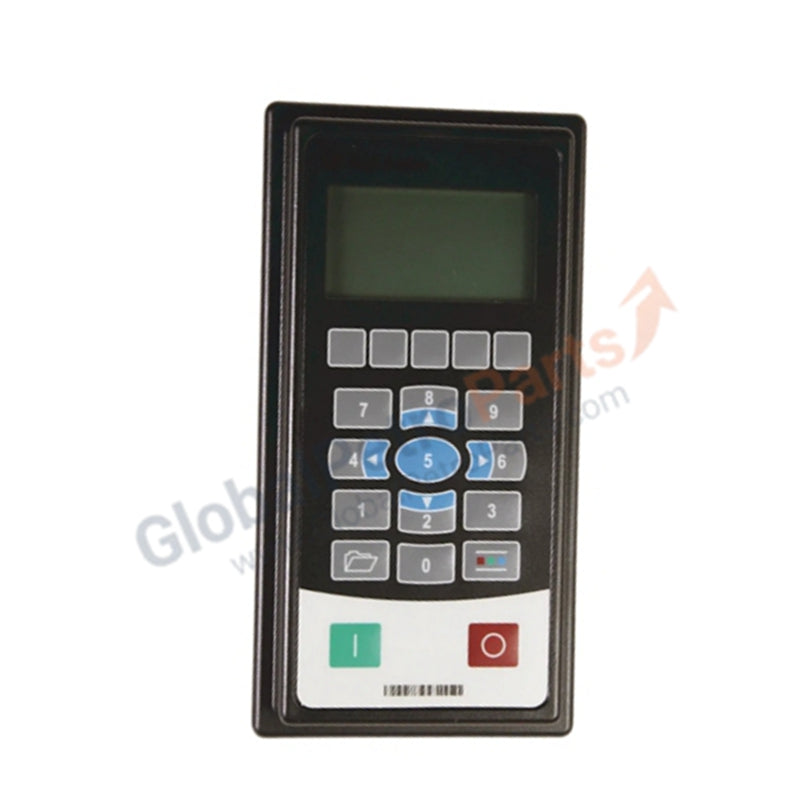

Configured for parameter management in PowerFlex drive systems, the Allen-Bradley 20-HIM-C6S (20-HIM-C6S Human Interface Module) provides direct physical execution of drive monitoring and configuration tasks. This enhanced module features a full-numeric keypad with integrated navigation controls, allowing for precise adjustment of drive settings and peripheral configurations. It supports customized name assignments for drives and associated components, alongside a multi-language interface covering English, European, and Asian standards. The interface hardware includes dynamic soft keys and customizable monitoring parameters, encapsulated within an IP66 (NEMA Type 4X/12) rated enclosure designed for indoor environments.

Hardware Specifications

Backplane Bus Communication Velocity and Determinism

The 20-HIM-C6S interfaces with PowerFlex architecture via the DPI (Drive Peripheral Interface) bus. The communication velocity is determined by the DPI protocol, which ensures deterministic polling of drive parameters during operation. The module utilizes high-speed data registers to map drive monitoring items into the display logic, reducing latency between signal state changes within the drive and the visual update rate on the HIM screen. Compatibility with drive firmware is managed through the DPI interface, ensuring that parameter objects are correctly identified and accessed without protocol-level errors.

Frequently Asked Questions (FAQ)

Q: Can the 20-HIM-C6S be used in outdoor environments?

A: No, despite the IP66 enclosure rating, the technical documentation specifies that this module is intended for indoor use only. Exposure to direct sunlight or uncontrolled outdoor weather may degrade display performance or enclosure integrity.

Q: Is this HIM hot-swappable with PowerFlex drives?

A: The DPI interface allows for the insertion and removal of the HIM while the drive is powered; however, caution should be exercised to prevent electrostatic discharge (ESD) during connection. Ensure the module is fully seated to maintain a reliable DPI bus connection.

Field Installation Guidelines

1. Verify the module part number matches the drive firmware requirements before installation.
2. Align the rear DPI connector of the 20-HIM-C6S with the drive interface port.
3. Apply firm, even pressure to seat the module until the locking mechanism engages.
4. If mounting remotely, use an appropriate DPI interface cable, ensuring the cable length does not exceed the maximum specification for the DPI bus to prevent signal attenuation.
5. Clean the keypad surface using only a soft, dry cloth. Avoid chemical solvents that may compromise the IP66 gasket seal or damage the display screen.
6. Upon power-up, use the custom name assignment feature to label the drive and peripherals for clearer system identification during maintenance cycles.
