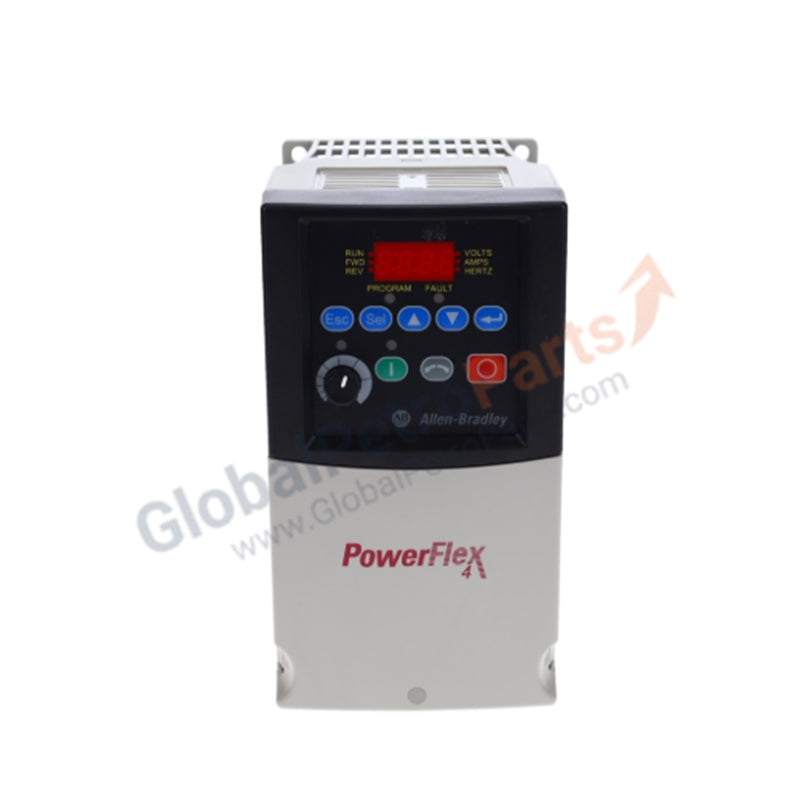

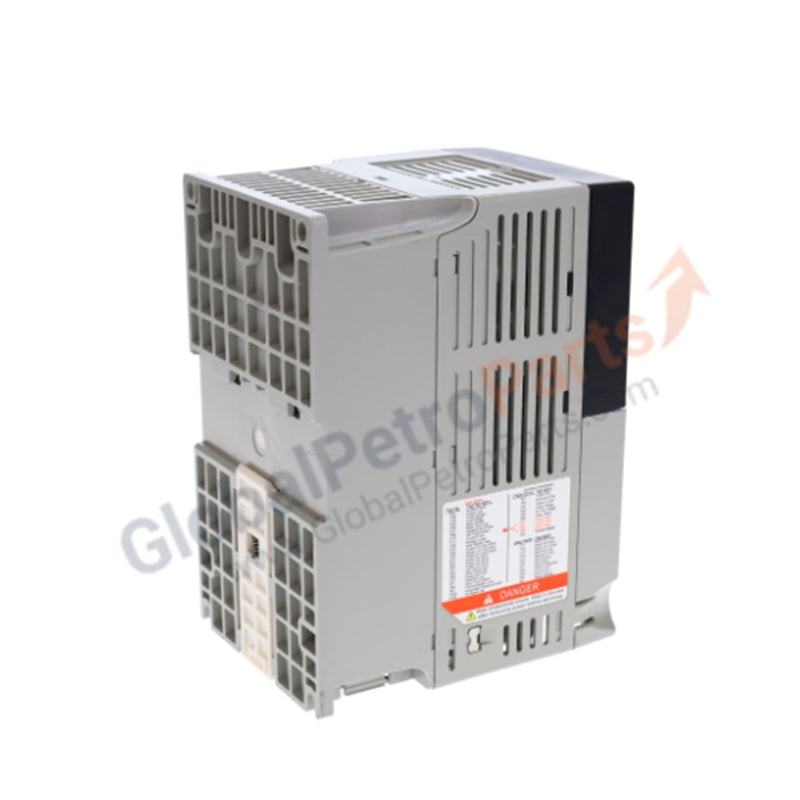

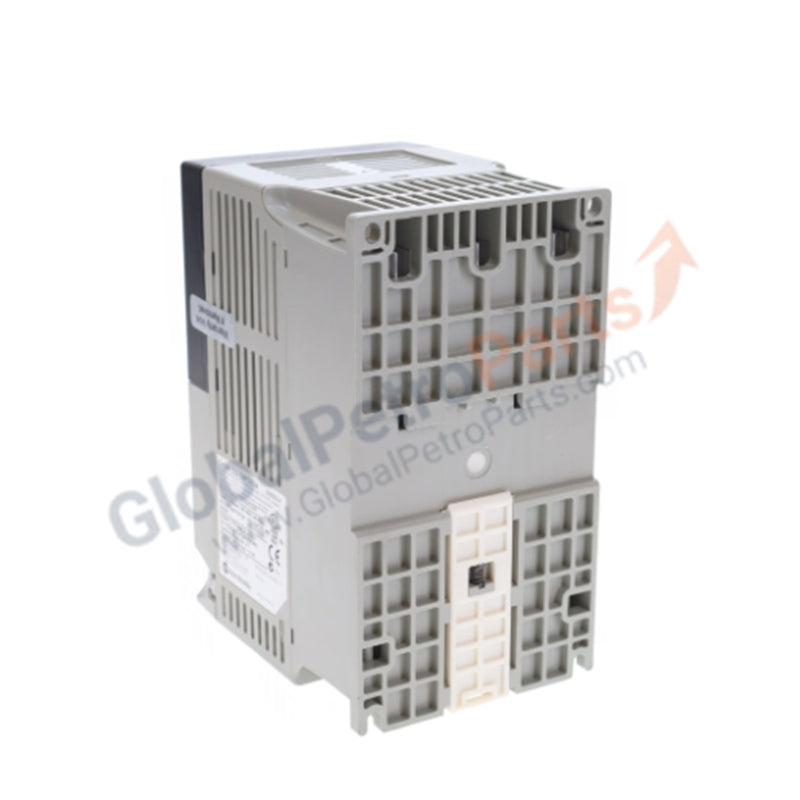

22A-D2P3N104 | Allen-Bradley | PowerFlex 4 AC Drive

Configured for precise motor speed regulation in industrial drive applications, the Allen-Bradley 22A-D2P3N104 (22A-D2P3N104 AC Drive) provides direct physical/electrical execution of frequency-controlled power delivery to 3-phase AC induction motors.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Firmware Compatibility

The 22A-D2P3N104 architecture supports integration into deterministic networks via optional communication adapters, enabling connectivity to EtherNet/IP, ControlNet, and DeviceNet platforms. Firmware flash compatibility is managed via the Studio 5000 Design Environment, allowing for the direct mapping of drive parameters into controller tags. The drive utilizes an integrated RS485 port for daisy-chain topology configurations, facilitating multi-drop communication. I/O density scaling is achieved through discrete inputs (START/STOP/REV) and programmable outputs, which can be configured for status monitoring within SCADA or DCS platforms. Proper firmware synchronization ensures consistent response times during dynamic configuration changes.

Frequently Asked Questions

Q: Does the 22A-D2P3N104 support dynamic braking?

A: No. This specific model (suffix 'N') does not include an internal IGBT dynamic brake mechanism. If deceleration torque management is required, an external braking solution must be integrated.

Q: Can this drive be programmed without using the onboard keypad?

A: Yes. The drive supports full parameter integration via the Studio 5000 Design Environment, which allows for configuration, monitoring, and parameter setting through the connected controller.

Field Installation Guidelines

• Mounting Orientation: Install the drive in a vertical orientation to ensure proper convective cooling. Maintain required clearances above and below the unit for airflow.
• Wiring Practices: Separate control signal wiring (I/O, RS485) from power lines to mitigate electromagnetic interference. Use shielded cable for all analog signal loops.
• Grounding: Ensure the drive chassis is connected to a common earth ground bus. Follow standard industrial practices for shield termination to reduce common-mode noise.
• Terminal Connections: Confirm that input power wiring matches the 3-phase 400-480 VAC rating. Ensure all terminals are torqued according to specifications to prevent loose connections under load.
• Network Integration: When utilizing the RS485 port for multi-drop configurations, ensure proper termination resistors are installed at the physical ends of the network segment to prevent signal reflections.
