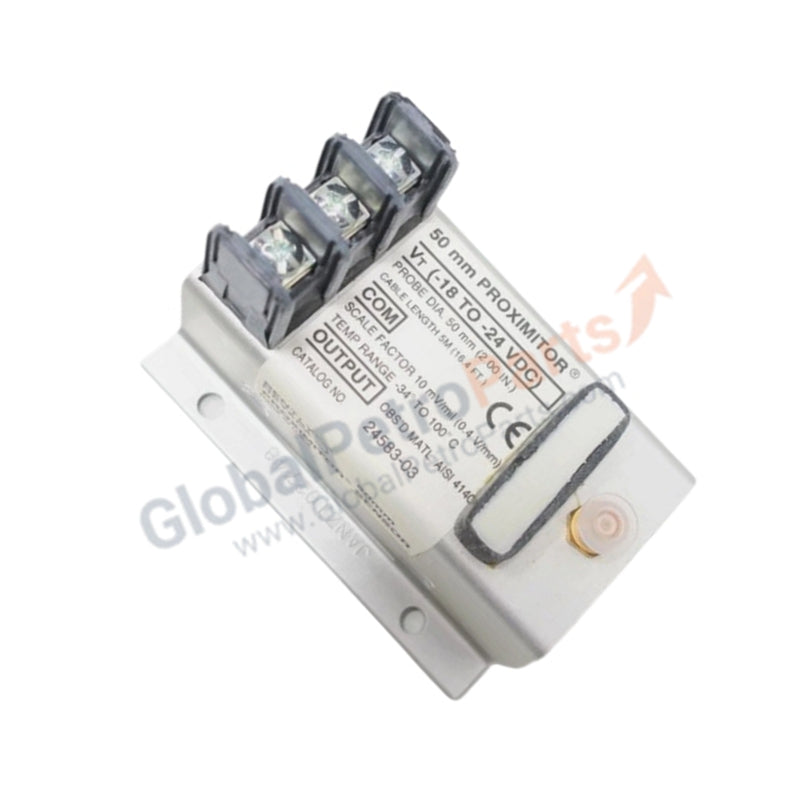

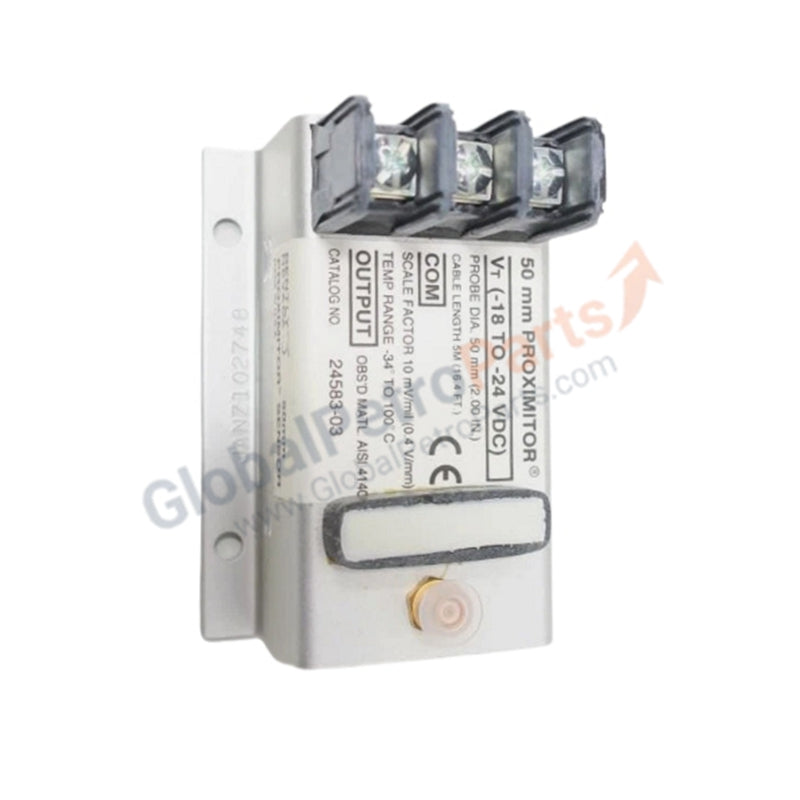

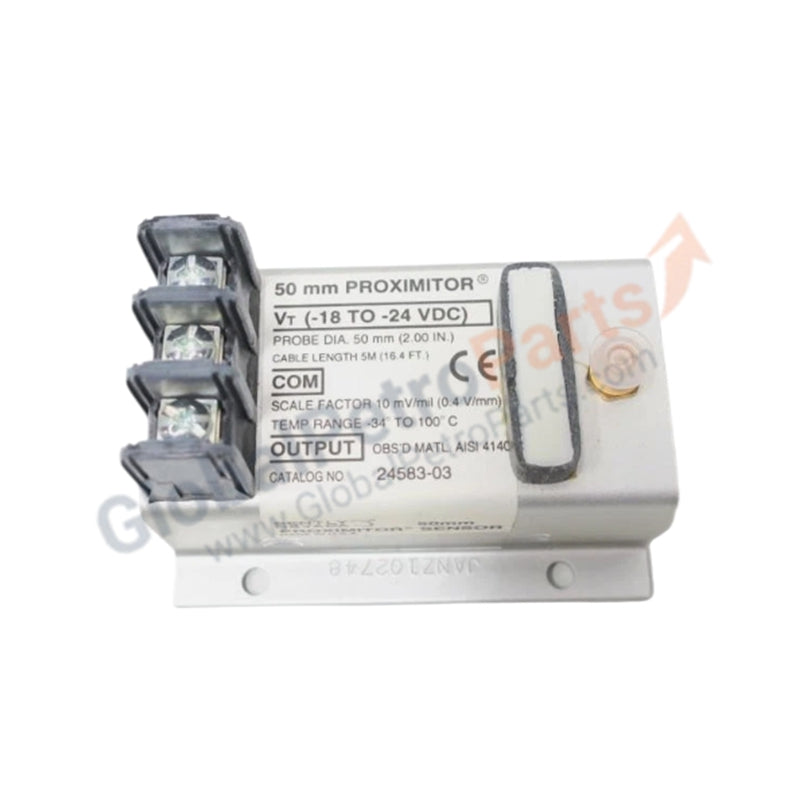

24583-03 | Bently Nevada | Proximitor Sensor

The Bently Nevada 24583-03, also cataloged as the 24583-03 Proximitor Sensor, operates as a dedicated hardware component for displacement signal conditioning within industrial monitoring platforms.

Hardware Specifications

Mechanical Monitoring and TSI Characteristics

The 24583-03 sensor is engineered for eddy-current probe scaling, converting inductive field variations into proportional analog voltage signals. Optimal system linearity is achieved through consistent gap voltage validation, with target operating points typically centered at -10 VDC to ensure sufficient dynamic range for both sub-synchronous and synchronous shaft vibration capture. In multi-probe installations, proper orientation and physical spacing are required to implement effective cross-talk suppression. This prevents electromagnetic coupling between adjacent sensor channels, ensuring that the processed output reflects actual rotor dynamics rather than signal noise or interference artifacts.

Frequently Asked Questions

Q: Does the 24583-03 require calibration upon installation?

A: Yes, initial verification of the gap voltage at the monitor entry point is required to ensure the probe is positioned within the linear range of the target. Refer to the specific transducer calibration curve to ensure the output voltage (V/mil) corresponds to the expected displacement.

Q: Can this sensor be used in applications exceeding 24 VDC?

A: No, operating the sensor outside the specified 18-24 VDC range may lead to internal component failure or signal instability. Ensure the power supply is regulated to prevent voltage-induced measurement drift.

Field Installation Guidelines

1. Mounting: Secure the block-style body to the designated chassis or bracket. Ensure the mounting surface is grounded to provide an appropriate return path and to minimize electromagnetic susceptibility.
2. Signal Wiring: Use high-quality shielded cabling for the analog signal path. Ensure the cable shield is grounded at the monitor end only to prevent ground loops that could introduce 60 Hz hum or other noise.
3. Gap Adjustment: Prior to finalizing installation, verify the physical gap between the probe tip and the target. Use a feeler gauge or voltage meter to set the gap to the manufacturer-specified value, monitoring the signal output to ensure it falls within the nominal -10 VDC operational range.
4. Termination: Ensure all cable connections are mechanically secured and protected from environmental contaminants such as oil or moisture, which can degrade signal integrity over time.
