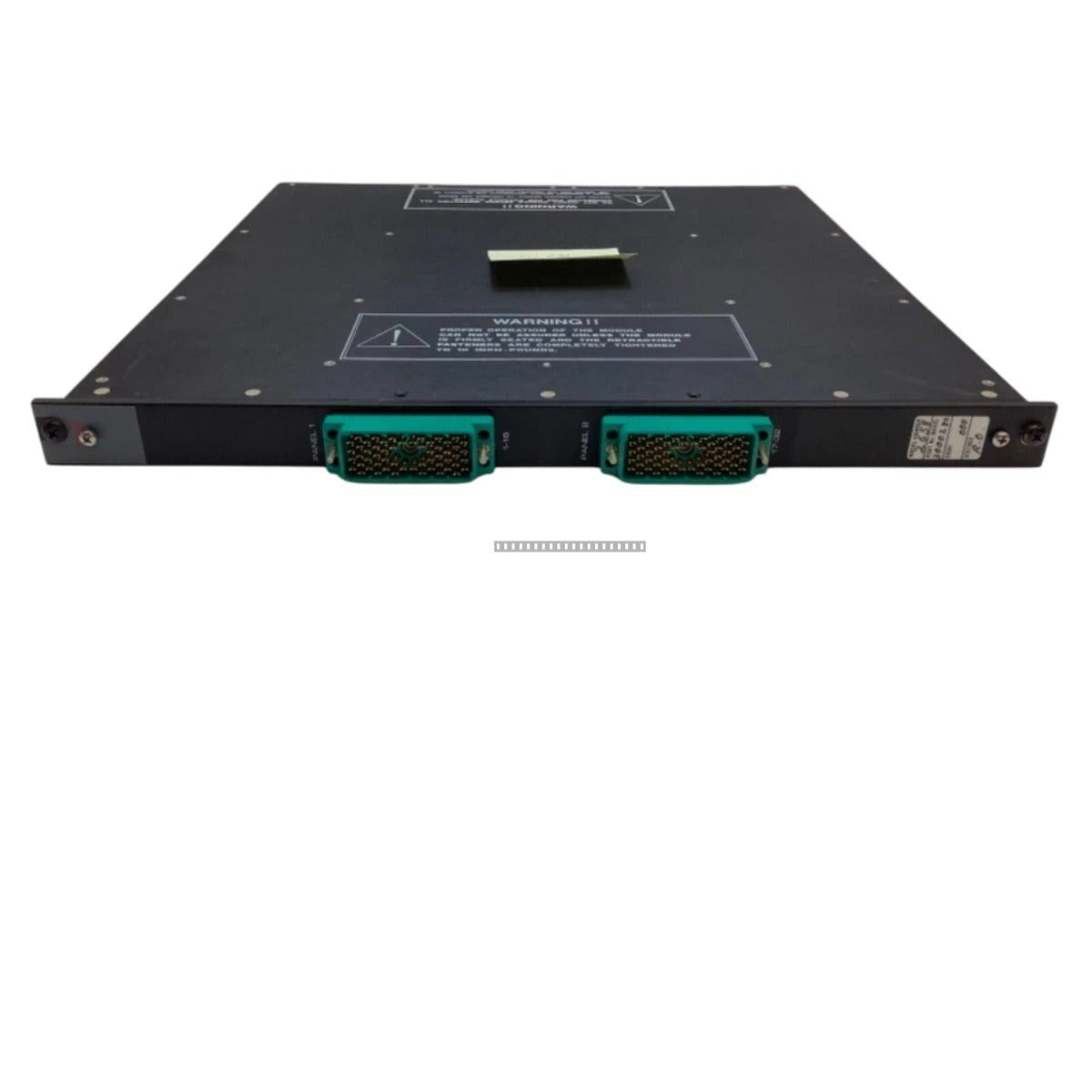

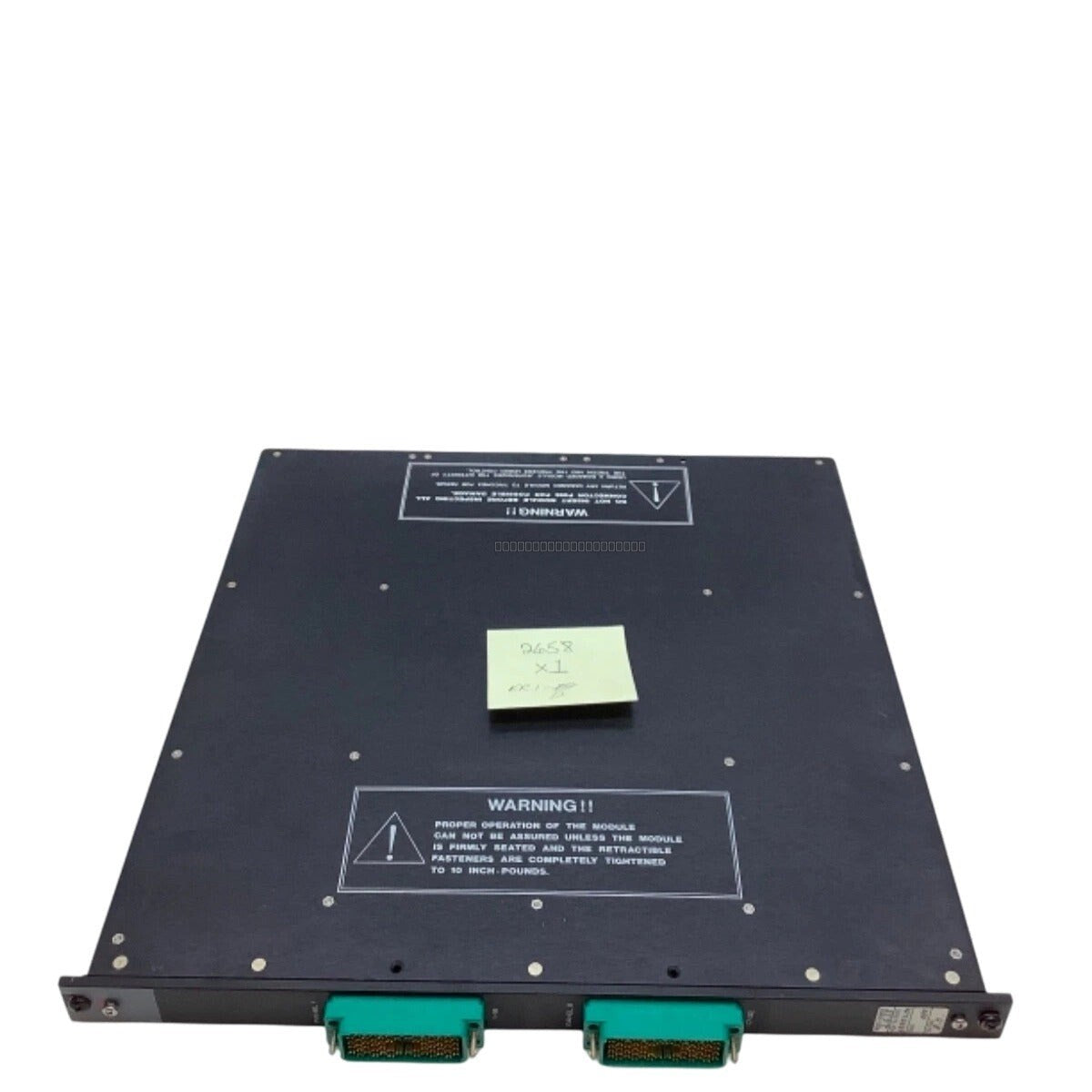

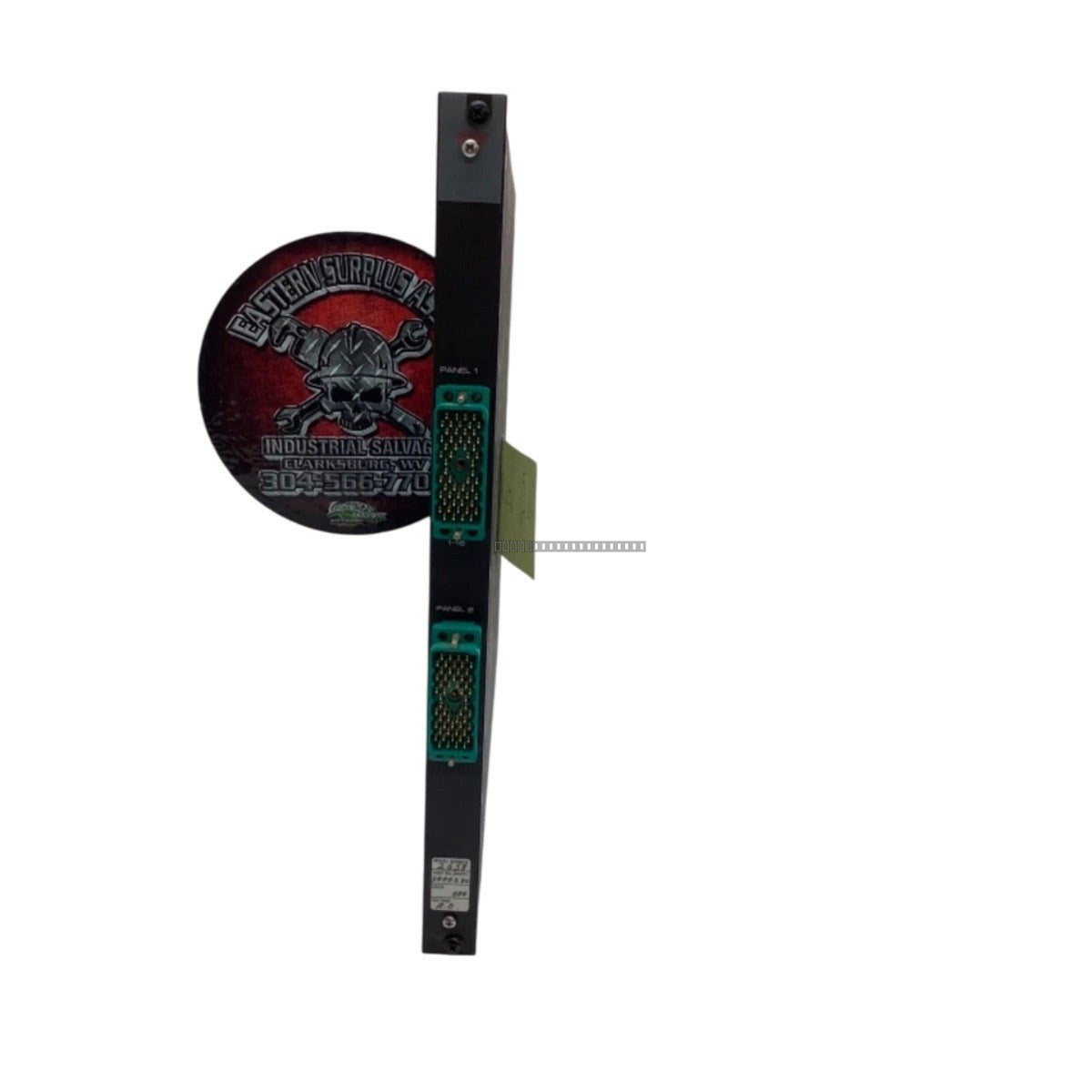

Triconex 2658 Connection Module

Description

The Triconex 2658 Connection Module is a high-integrity external termination interface engineered for digital input (DI) processing loops within Triconex Safety Instrumented Systems (SIS). This module serves as a critical bridge between field instrumentation and the main input processing backplane, ensuring signal integrity and system reliability in demanding industrial environments. By facilitating organized field wiring and providing integrated signal conditioning, the 2658 module protects central logic architectures from electrical transients and common-mode noise, ultimately reducing the risk of false trips and unscheduled downtime.

Features

• High-density terminal blocks with integrated screw-clamp locking arrays for secure field wiring.
• Optimized for Triple Modular Redundant (TMR) architectures, ensuring clean data streams to triplicated I/O components.
• Integrated passive protection networks, including current-limiting resistors and suppression diodes, to mitigate field-induced surges.
• Dedicated grounding rails and shield clamp termination paths to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
• Locking ribbon cable headers for reliable, secure interconnection with internal system input cards.

Applications

The 2658 module is designed for use in safety-critical applications, including oil and gas refining, petrochemical processing, thermal power generation, and mining operations. It is specifically suited for environments where high-reliability digital input signal processing is required to maintain safety and operational continuity.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the module or connecting/disconnecting ribbon cables.
• Mount the module in a clean, dry, and vibration-dampened environment consistent with industrial control panel standards.
• Utilize the dedicated grounding rails to establish a low-impedance path to the system ground, ensuring effective EMI/RFI shielding.
• Route field signal wiring separately from high-voltage power cables to prevent inductive noise coupling.
• Verify all screw-clamp connections are tightened to the specified torque to prevent intermittent signal loss due to vibration.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

What is the primary function of the Triconex 2658 module?

The 2658 acts as an external termination interface that routes field digital input signals to the Triconex system backplane while providing signal protection and electrical isolation.

Is this module compatible with TMR systems?

Yes, the internal PCB layout is specifically designed to support Triple Modular Redundant (TMR) processing by splitting input lines into isolated, parallel signal paths.

How should the module be grounded?

The module includes dedicated grounding rails and shield clamp paths. These should be connected to the cabinet's common ground bus using low-impedance conductors to ensure effective noise suppression.
